PARKER P1A-S020MS-0100 PNEUMATIC CYLINDER
Quick Overview
Manufactured By: PARKER
Manufacturer Part Number: P1A-S020MS-0100
IMS Product Code: 1837489
Packaging: Sold Individually
Description:

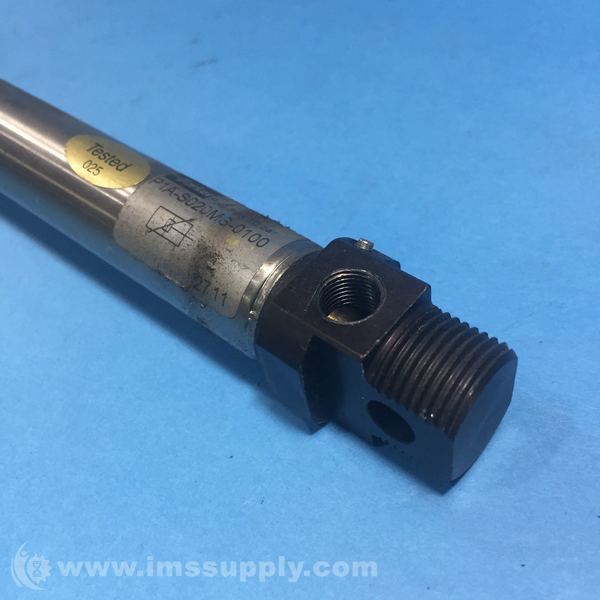

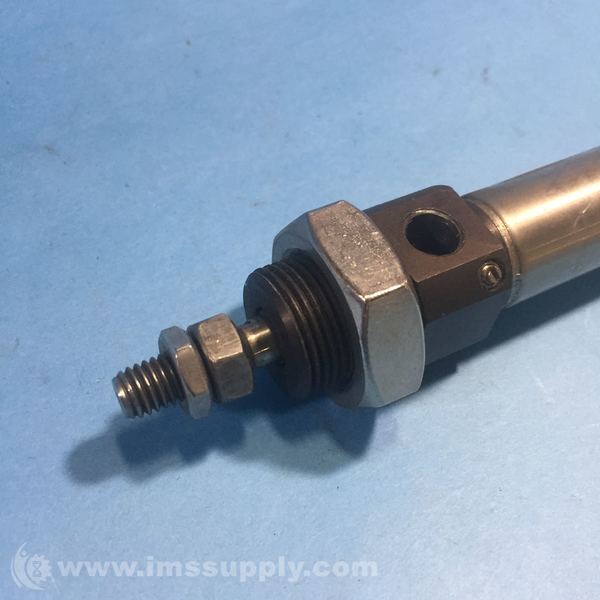

Parker P1A-S020MS-0100 Pneumatic Cylinder
Double acting pneumatic cylinder, 20 mm bore size, 100 mm stroke length, stainless steel material, prelubricated, cushioned both ends.
Specifications
- Bore Size: 20 mm
- Cushions: Cushioned, Adjustable Both Ends
- Cylinder Type: Double Acting
- End Cap Material: Anodized Aluminum
- Extension Force @ 87 PSI: 42.27 lbs
- Filtration Required: 40 micron
- Lubrication: Prelubricated
- Magnetic Piston: Yes
- Material: Stainless Steel
- Maximum Pressure: 145 psig
- Maximum Temperature Range: 176 degrees F
- Minimum Temperature Range: -4 degrees F
- Port Size: G1/8
- Retraction Force @ 87 PSI: 35.52 lbs
- Rod Diameter: 8 mm
- Rod End Thread: M8
- Rod Material: Stainless Steel
- Seal Material: Fluorocarbon
- Series: P1A
- Stroke Length: 100 mm
- Style: Round Body
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 1 In Stock
Ships today if ordered in the next 8 hours and 24 minutes.
