PARKER P1A-S025MS-0320 PNEUMATIC CYLINDER
Quick Overview
Manufactured By: PARKER
Manufacturer Part Number: P1A-S025MS-0320
IMS Product Code: 1931903
Packaging: Sold Individually
Description:

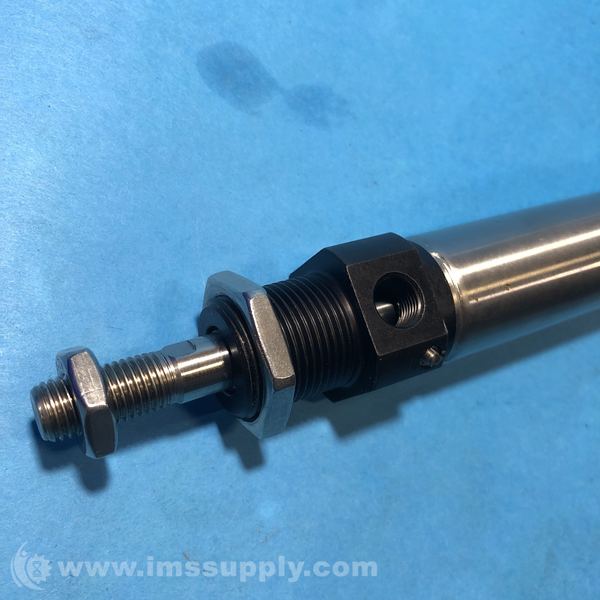

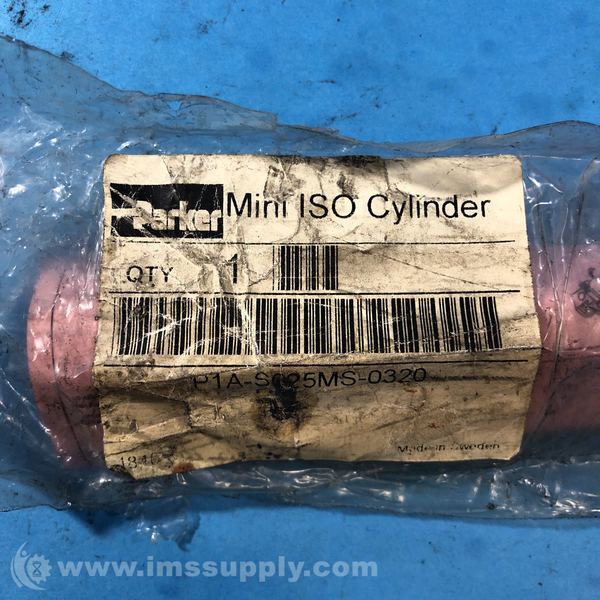

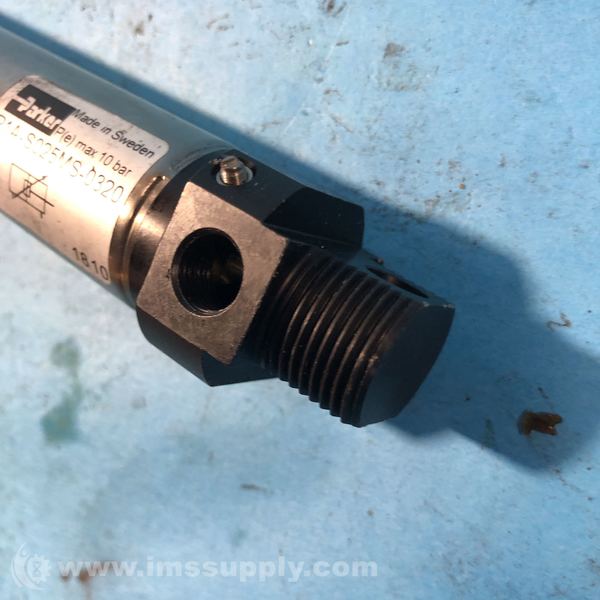

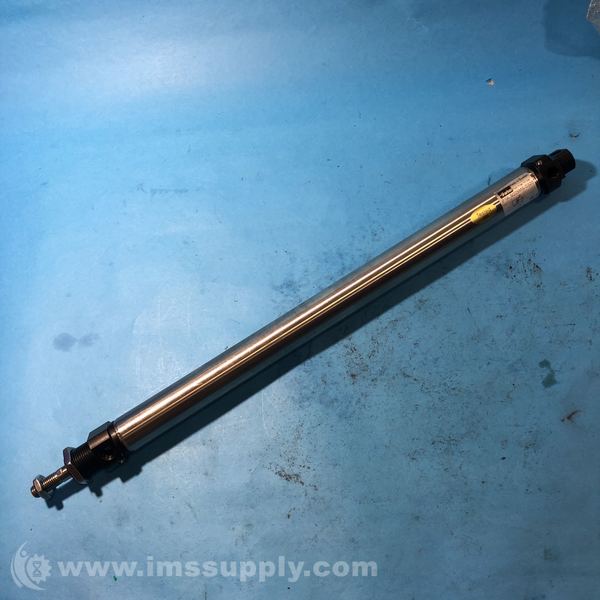

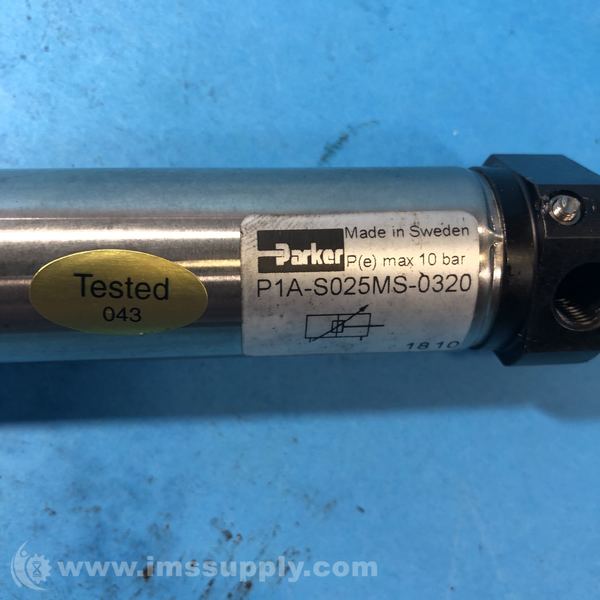

Parker P1A-S025MS-0320 Pneumatic Cylinder
Double acting pneumatic cylinder from Parker P1A series with 25 mm bore size and 320 mm stroke length.
Specifications
- Bore Size: 25 mm
- Cushions: Cushioned, Adjustable Both Ends
- Cylinder Type: Double Acting
- End Cap Material: Anodized Aluminum
- Extension Force @ 87 PSI: 66.1 lbs
- Filtration Required: 40 micron
- Lubrication: Prelubricated
- Magnetic Piston: Yes
- Material: Stainless Steel
- Maximum Pressure: 145 psig
- Maximum Temperature Range: 176 degrees F
- Minimum Temperature Range: -4 degrees F
- Port Size: G1/8
- Retraction Force @ 87 PSI: 55.53 lbs
- Rod Diameter: 10 mm
- Rod End Thread: M10X1.25
- Rod Material: Stainless Steel
- Seal Material: Fluorocarbon
- Series: P1A
- Stroke Length: 320 mm
- Style: Round Body
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships today if ordered in the next 5 hours and 39 minutes.
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 1 In Stock
Ships today if ordered in the next 5 hours and 39 minutes.
