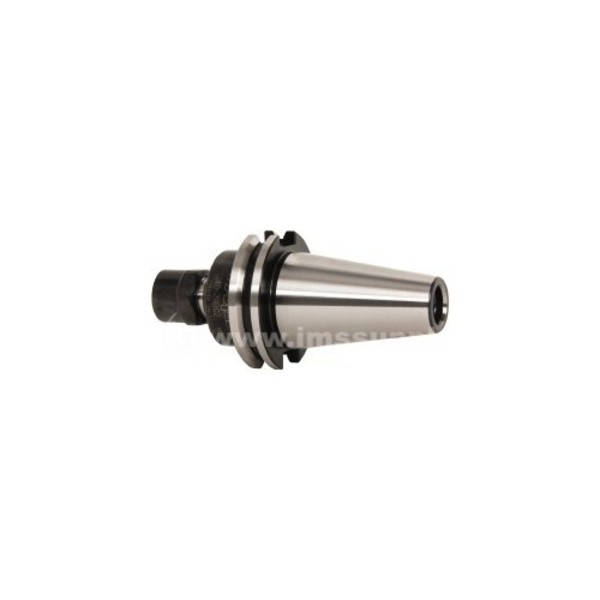

PARLEC C40-20DC2 DA200 CHK X 2.73" CAT40
Starting At: $201.40
Quick Overview
Manufactured By: PARLEC
Manufacturer Part Number: C40-20DC2
IMS Product Code: 1740626
Packaging: Sold Individually
Description:
Parlec C40-20DC2 DA200 CHK X 2.73" CAT40
Specifications:
- Collet System: Double Angle
- Collet Series: DA200
- Taper Size: CAT40
- Shank Type: Taper Shank
- Projection (Decimal Inch): 2.7300
- Minimum Collet Capacity (Inch): 1/32
- Minimum Collet Capacity (Decimal Inch): 0.0310
- Minimum Collet Capacity (mm): 0.79
- Maximum Collet Capacity (mm): 6.35
- Maximum Collet Capacity (Inch): 1/4
- Maximum Collet Capacity (Decimal Inch): 0.2500
- Overall Length (Decimal Inch): 5.4170
- Nose Diameter (Decimal Inch): 1.1000
- TIR (Decimal Inch): 0.0004
- Coolant Type: Through-Spindle
