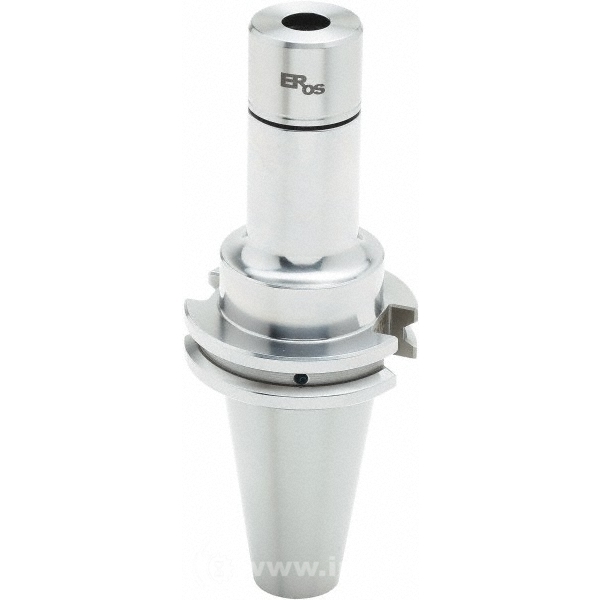

PARLEC C40BC-20EROS300 EROS PRECISION CHUCK, CAT 40 AD/B, 20 X
Starting At: $269.80
Quick Overview
Manufactured By: PARLEC
Manufacturer Part Number: C40BC-20EROS300
IMS Product Code: 1743798
Packaging: Sold Individually
Description:
Collet System: ER
Collet Series: ERos20
Taper Size: CAT40
Shank Type: Taper Shank
Shank Diameter (Inch): 1/2
Projection (Decimal Inch): 3.0000
Through Coolant: Through Coolant
Minimum Collet Capacity (Decimal Inch): 0.0400
Minimum Collet Capacity (mm): 1.00
Maximum Collet Capacity (mm): 13.00
Maximum Collet Capacity (Decimal Inch): 0.5000
Nut Tightening Torque (Ft-Lbs): 74.000
Maximum RPM: 20000
Collet Series: ER20
TIR (Decimal Inch): 0.000040
Balanced to (RPM): 25000
Coolant Type: Through-Spindle & DIN Flange
