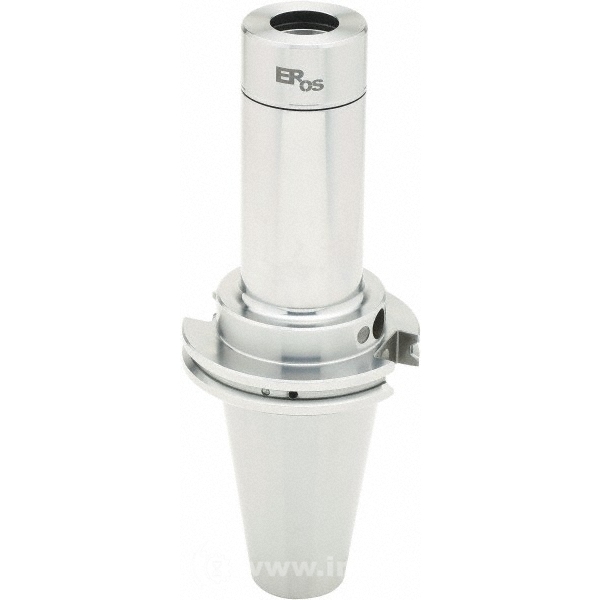

PARLEC C50BC-32EROS600 EROS PRECISION CHUCK, CAT 50 AD/B, 32 X

MSRP: $696.00
Starting At: $661.20

Quick Overview

Manufactured By: PARLEC
Manufacturer Part Number: C50BC-32EROS600
IMS Product Code: 1746967
Packaging: Sold Individually

Description:

Collet System: ER

Collet Series: ERos32

Taper Size: CAT50

Shank Type: Taper Shank

Shank Diameter (Inch): 25/32

Projection (Decimal Inch): 6.0000

Through Coolant: Through Coolant

Minimum Collet Capacity (Decimal Inch): 0.0540

Minimum Collet Capacity (mm): 2.00

Maximum Collet Capacity (mm): 20.00

Maximum Collet Capacity (Decimal Inch): 0.7812

Nut Tightening Torque (Ft-Lbs): 125.000

Maximum RPM: 20000

Collet Series: ER32

TIR (Decimal Inch): 0.000040

Balanced to (RPM): 20000

Coolant Type: Through-Spindle & DIN Flange


Direct From Manufacturer:
A new product, shipped directly from the manufacturer.

IMS Supply is an authorized Parlec distributor.
