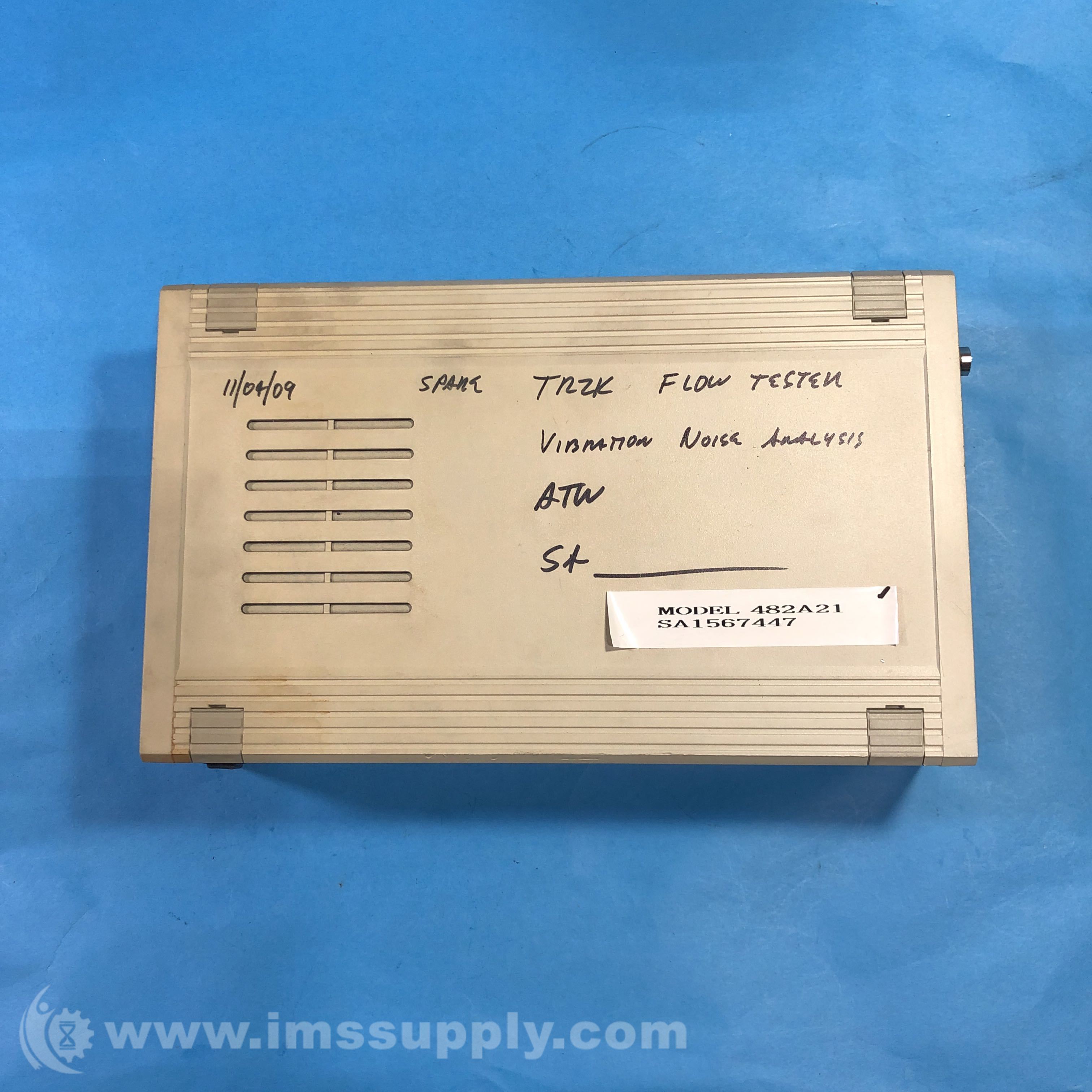

PCB PIEZOTRONICS 482A21 ICP SENSOR SIGNAL CONDITIONER
Quick Overview
Manufactured By: PCB PIEZOTRONICS, INC.
Manufacturer Part Number: 482A21
IMS Product Code: 1908946
Packaging: Sold Individually
Description:
PCB Piezotronics 482A21 ICP Sensor Signal Conditioner
1-channel, line-powered, ICP sensor signal conditioner with unity gain and BNC input/output connections.
Specifications
- Channels: 1
- Voltage Gain: 1:1
- High Frequency Response: >1000 kHz
- Fault/Bias Monitor/Meter: 26 V FS
- Temperature Range: 32 to 120 F / 0 to 50 C
- Power Required: DC Power
- DC Power: +32 to 38 VDC / 0.12 Amps
- Excitation Voltage: 25 to 27 VDC
- Constant Current Excitation: 2 to 20 mA
- Discharge Time Constant: 10 sec
- Spectral Noise (1 Hz): 0.71 µV/vHz / -123 dB
- Spectral Noise (10 Hz): 0.09 µV/vHz / -142 dB
- Spectral Noise (100 Hz): 0.05 µV/vHz / -147 dB
- Spectral Noise (1 kHz): 0.04 µV/vHz / -149 dB
- Spectral Noise (10 kHz): 0.03 µV/vHz / -150 dB
- Broadband Electrical Noise: 3.25 µV / -110 dB
- Input Connector: BNC Jack
- Output Connector: BNC Jack
- DC Power Input Connector: DIN Jack
- Height: 6.3 in / 16 cm
- Width: 2.4 in / 6.1 cm
- Length: 11 in / 28 cm
- Weight: 1.51 lb / 685 gm
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
