PEPPERL + FUCHS 180708 LASER BACKGROUND SUPPRESSION SENSOR
Quick Overview
Manufactured By: PEPPERL & FUCHS
Manufacturer Part Number: 180708
IMS Product Code: 1752573
Packaging: Sold Individually
Description:
Pepperl + Fuchs 180708 Laser Background Suppression Sensor
Laser background suppression sensor with 10-30 V DC operating voltage, IP67 protection, and 5-pin M12 x 1 plastic connector connection.
Specifications
- detection range: 100 ... 1500 mm
- light source: laser diode
- light type: modulated visible red light
- laser class: 1
- wave length: 650 nm
- light spot representation: max. 1.5 mm x 4 mm , light spot perpendicular to housing
- black/white difference (6 %/90 %): <= 40 %
- function indicator: 2 LEDs yellow

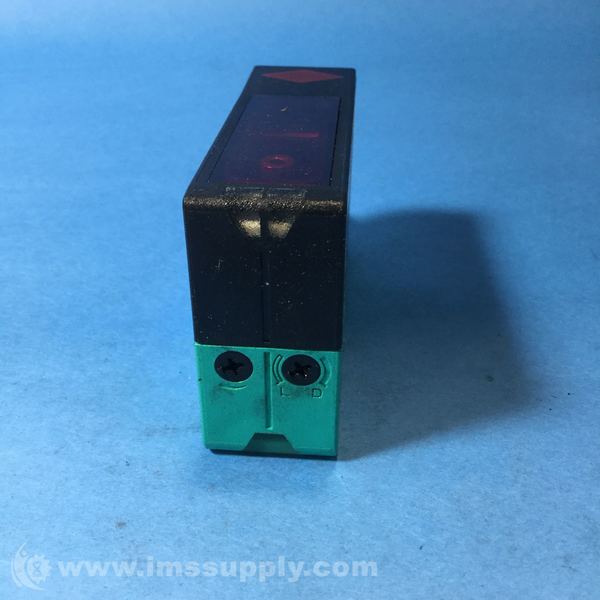

- control elements: Sensing range adjuster , Light-on/dark-on changeover switch
- operating voltage: 10 ... 30 V DC
- switching type: light/dark on, switchable
- signal output: 2 PNP outputs, complementary, short-circuit protected, reverse polarity protected, open collector
- degree of protection: IP67

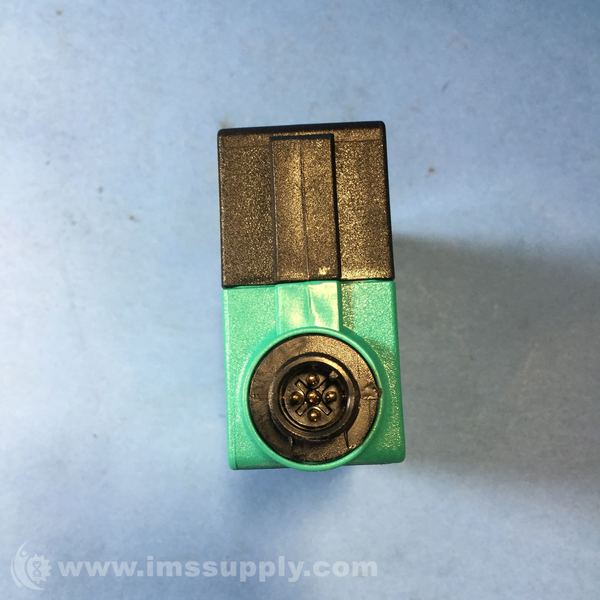

- connection: 5-pin, M12 x 1 plastic connector
- housing: Plastic ABS
- optical face: Plastic pane
