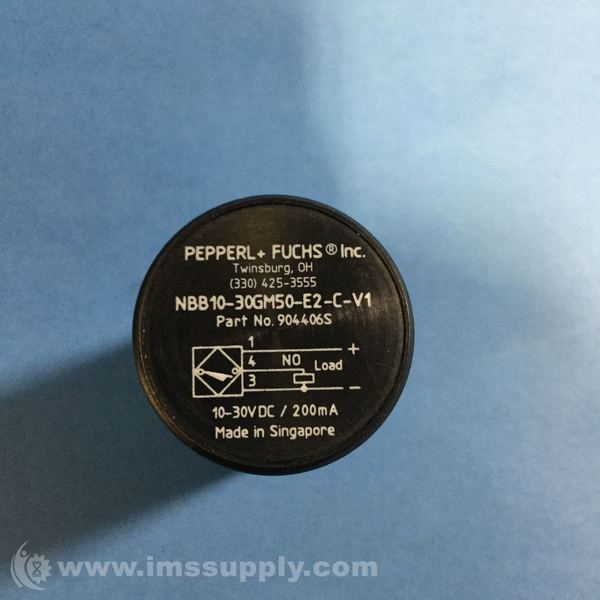

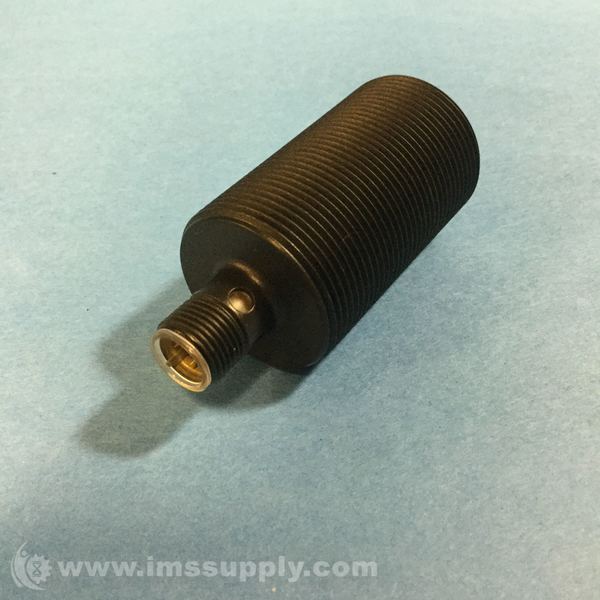

PEPPERL & FUCHS NBB10-30GM50-E2-C-V1 INDUCTIVE PROXIMITY SENSOR
Quick Overview
Manufactured By: PEPPERL & FUCHS
Manufacturer Part Number: NBB 10-30GM50-E2-C-V1
IMS Product Code: 1752898
Packaging: Sold Individually
Description:
Pepperl & Fuchs NBB10-30GM50-E2-C-V1 Inductive Proximity Sensor
Inductive proximity sensor with PNP-NO output, 10-30 VDC operating voltage, and M12 connector.
Specifications
- Switching Function: Normally open (NO)
- Output Type: PNP
- Rated Operating Distance: 10 mm
- Installation: flush
- Assured Operating Distance: 0 ... 8.1 mm
- Operating Voltage: 10 ... 30 V DC
- Switching Frequency: 0 ... 10 Hz
- Hysteresis: typ. 5%
- Operating Current: 0 ... 200 mA
- Housing Material: Brass, PTFE coated
- Sensing Face: PPS
- Degree of Protection: IP67

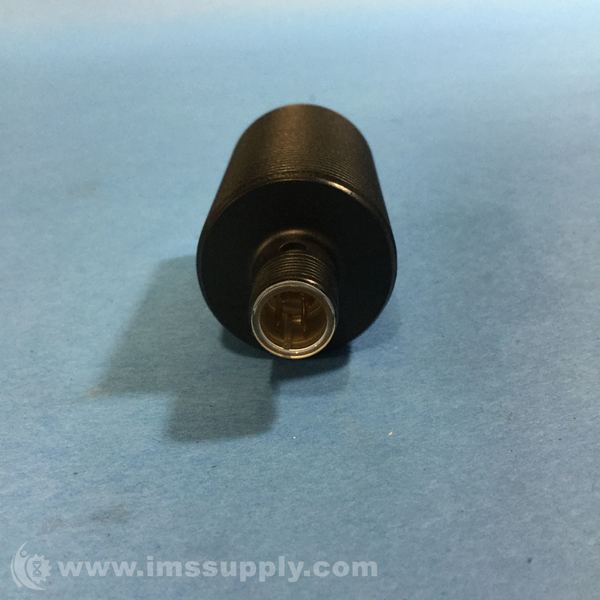

- Threading: M12 x 1
- Number of Pins: 4
- Length: 50 mm
- Diameter: 30 mm
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 6 In Stock
Ships Tomorrow
