PEPPERL & FUCHS NBB15-U4-A2-V1 INDUCTIVE PROXIMITY SENSOR
Quick Overview
Manufactured By: PEPPERL & FUCHS
Manufacturer Part Number: NBB15-U4-A2-V1
IMS Product Code: 2135744
Packaging: Sold Individually
Description:

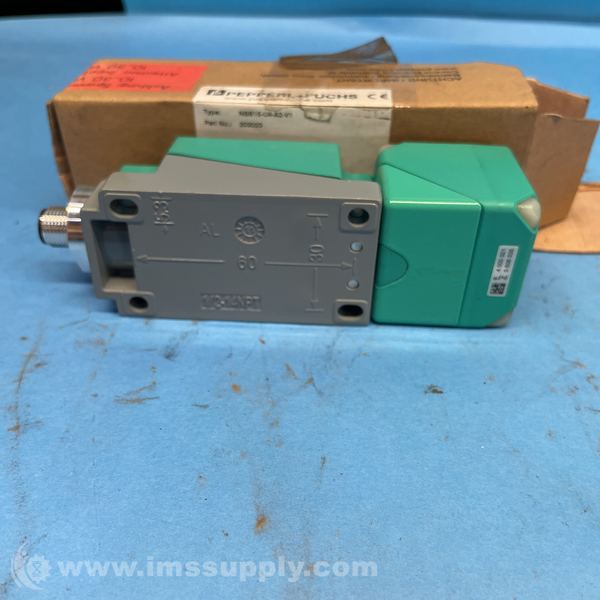

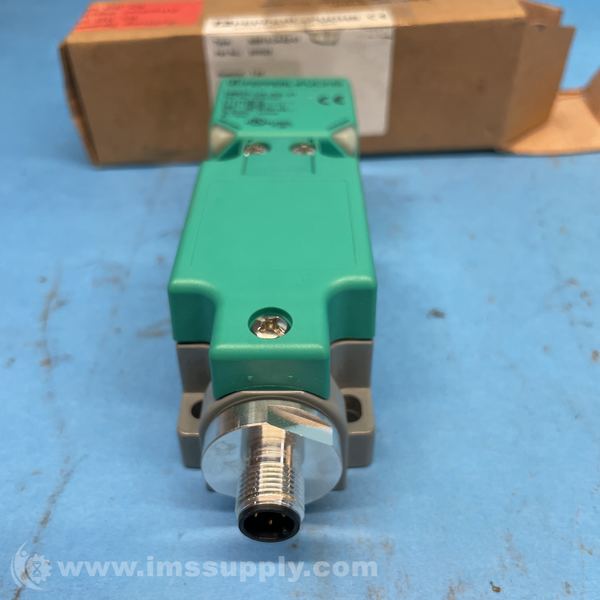

Pepperl & Fuchs NBB15-U4-A2-V1 Inductive Proximity Sensor
Inductive proximity sensor with PNP output and 4-pin M12 connector. Rated operating distance of 15 mm, flush installation, and IP68/IP69K protection.
Specifications
- Output Type: PNP
- Rated Operating Distance: 15 mm
- Installation: flush
- Operating Voltage: 10 ... 30 V
- Switching Frequency: 0 ... 560 Hz
- Housing Material: PA/metal with epoxy powder coating
- Sensing Face: PA
- Degree of Protection: IP68 / IP69K
- Threading: M12 x 1
- Number of Pins: 4
- Dimensions: 40 mm x 40 mm x 118 mm
- Mass: 225 g
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 2 In Stock
Ships today if ordered in the next 7 hours and 34 minutes.
