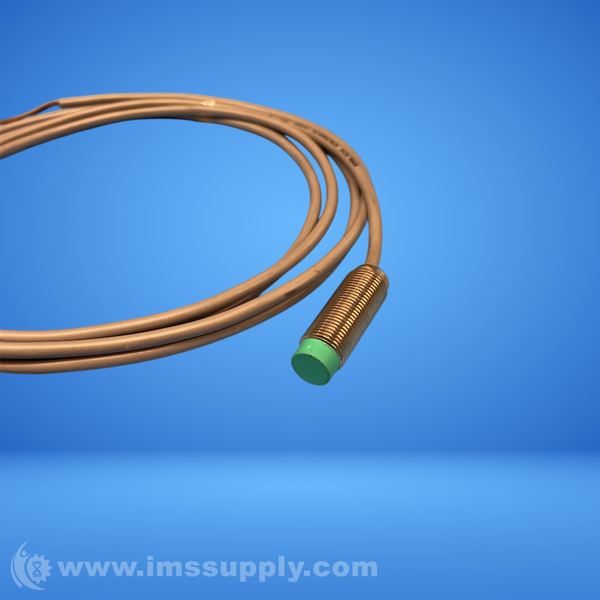

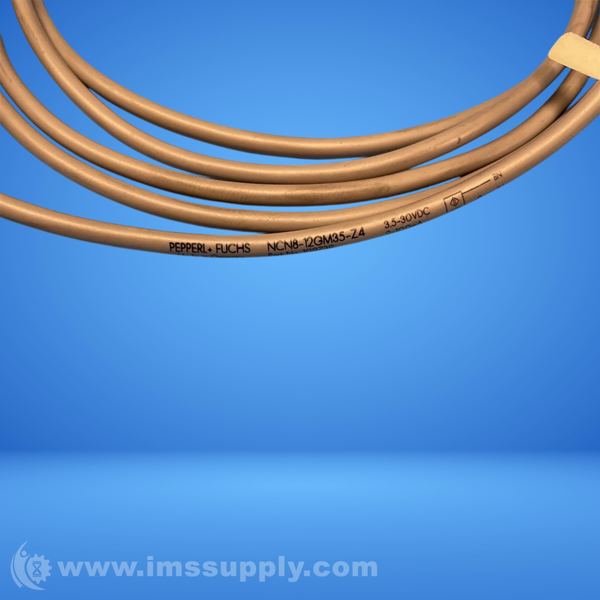

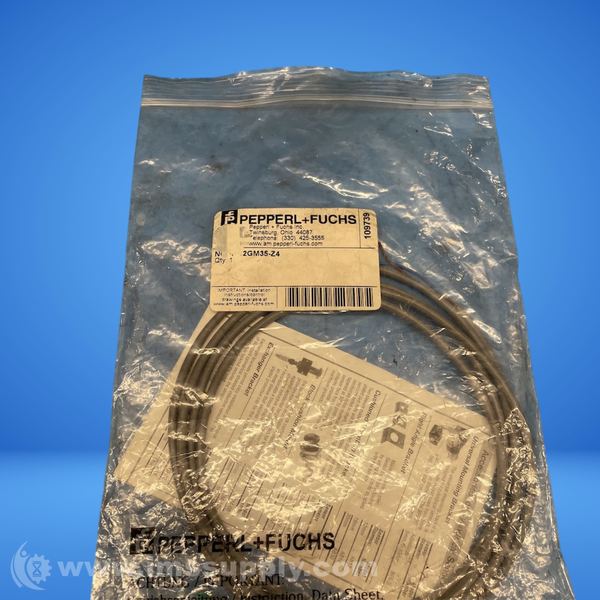

PEPPERL & FUCHS NCN8-12GM35-Z4 INDUCTIVE PROXIMITY SENSOR
Quick Overview
Manufactured By: PEPPERL & FUCHS
Manufacturer Part Number: NCN8-12GM35-Z4
IMS Product Code: 2147695
Packaging: Sold Individually
Description:
Pepperl & Fuchs NCN8-12GM35-Z4 Inductive Proximity Sensor
Inductive proximity sensor with 8mm rated operating distance, non-flush installation, and two-wire output.
Specifications
- Switching Function: Normally open (NO)
- Output Type: Two-wire
- Rated Operating Distance: 8 mm
- Installation: non-flush
- Operating Voltage: 3.5 ... 30 V
- Switching Frequency: 0 ... 750 Hz
- Hysteresis: typ. 3 %
- Operating Current: 2 ... 100 mA
- Off-state Current: 0.4 ... 0.6 mA
- Switching State Indicator: LED, yellow
- Stability Alarm Indicator: LED, red
- Housing Material: brass, nickel-plated
- Sensing Face: PBT
- Degree of Protection: IP67
- Connection Type: cable
- Cable Diameter: 3.7 mm + 0.2 mm
- Cable Length: 2 m
- Dimensions: Length: 35 mm, Diameter: 12 mm
Request A Quote
Let us know your requirements and an IMS Supply representative will provide you with a detailed quote.
Shipping Times Provided In Quote
