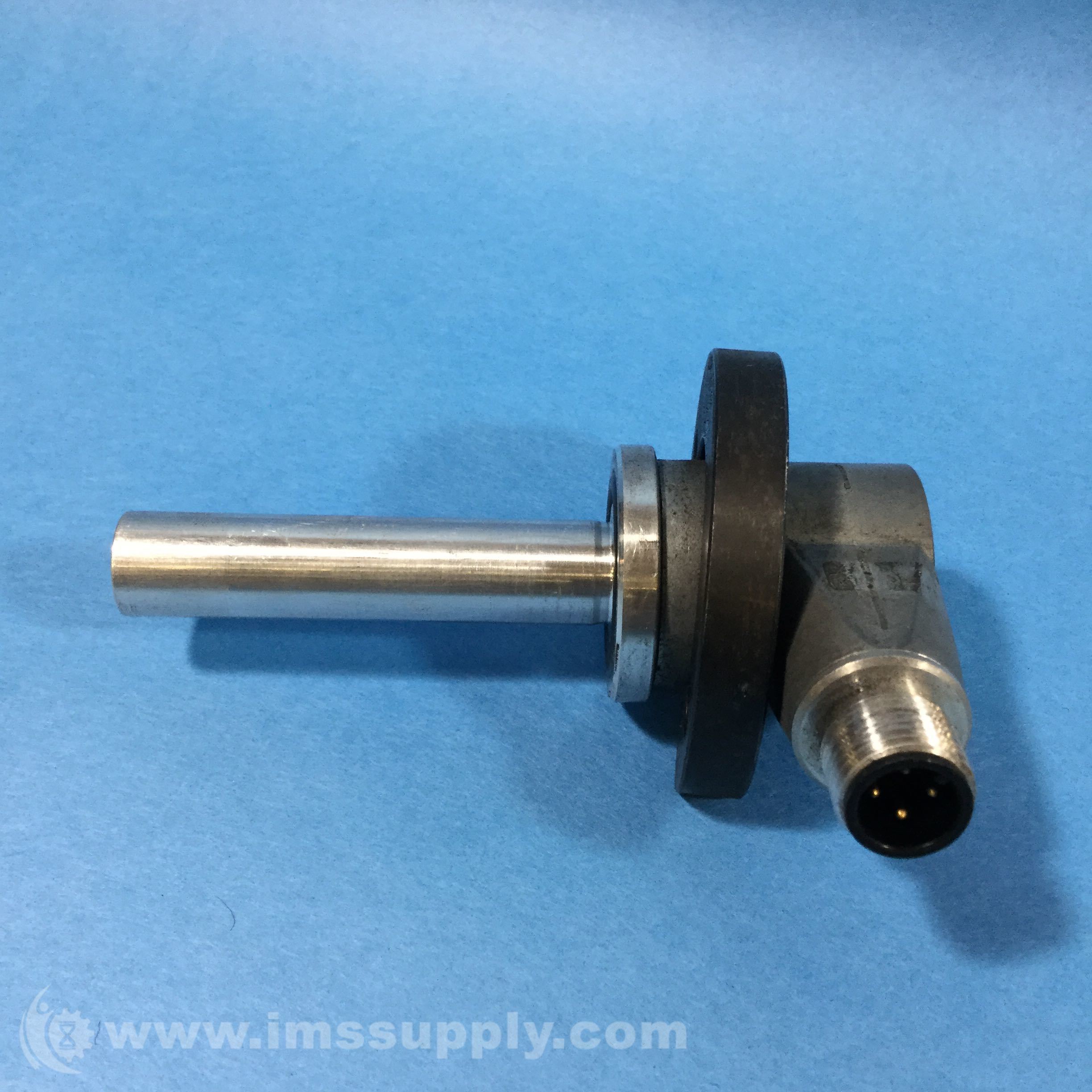

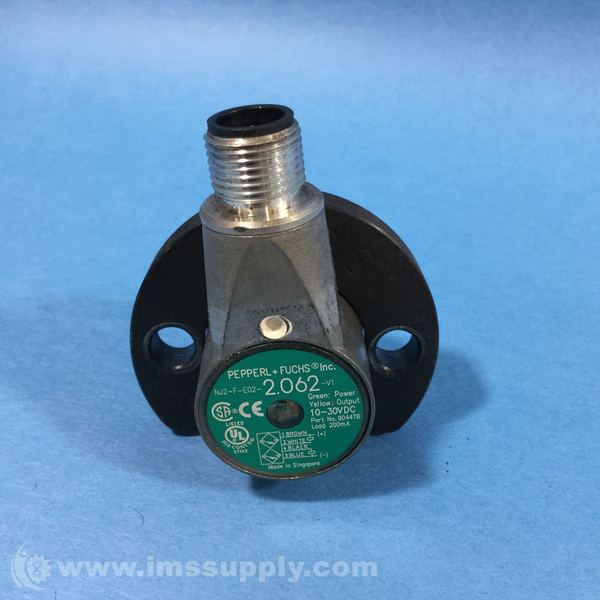

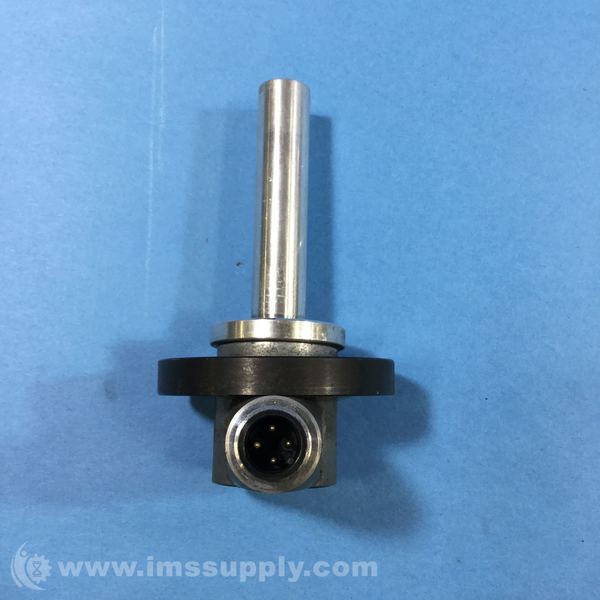

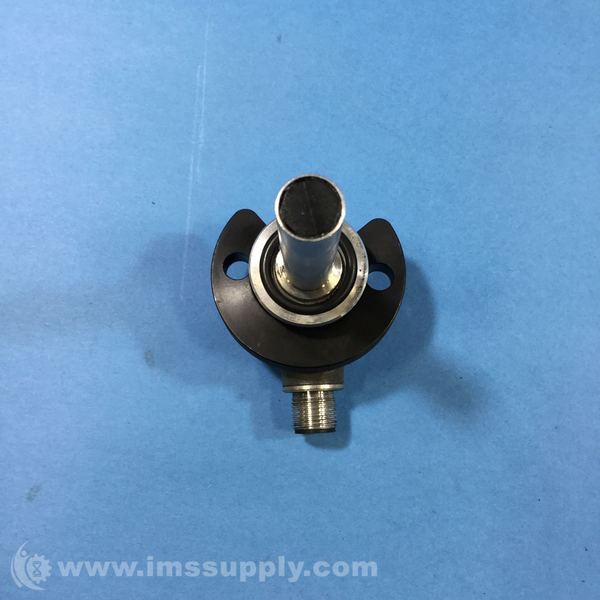

PEPPERL & FUCHS NJ2-F-E02-2.062-V1 CYLINDER POSITION SWITCH
Quick Overview
Manufactured By: PEPPERL & FUCHS
Manufacturer Part Number: NJ2-F-E02-2.062-V1
IMS Product Code: 1760929
Packaging: Sold Individually
Description:
Pepperl & Fuchs NJ2-F-E02-2.062-V1 Cylinder Position Switch
Inductive sensor, cylinder position switch, normally open output, PNP/NPN compatible, 2 mm sensing range, flush mount, IP67 protection, M12 connector, zinc housing and aluminum probe
Specifications
- Switching Function: Normally open (NO)
- Output Type: PNP/NPN
- Rated Operating Distance: 2 mm
- Installation: flush
- Operating Voltage: 10 ... 30 V DC
- Switching Frequency: 0 ... 30 Hz
- Hysteresis: 10 ... 20 % typ. 15 %
- Reverse Polarity Protection: yes
- Short-circuit Protection: yes
- Voltage Drop: = 2 V DC
- Operating Current: = 200 mA
- Off-state Current: = 100 µA
- No-load Supply Current: = 35 mA
- Ambient Temperature: -25 ... 70 °C (-13 ... 158 °F)
- Connection Type: Connector plug
- Degree of Protection: IP67
- Material: Housing: zinc Probe: aluminum Connector
- Threading: M12 x 1
- Number of Pins: 4
- Mass: 161 g
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
