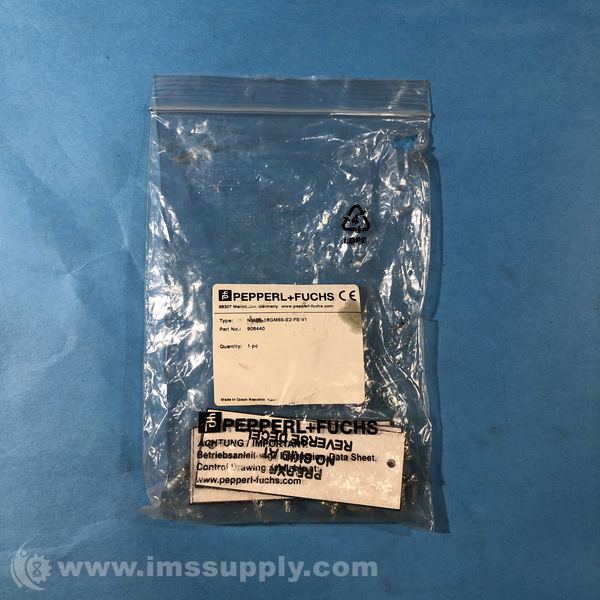

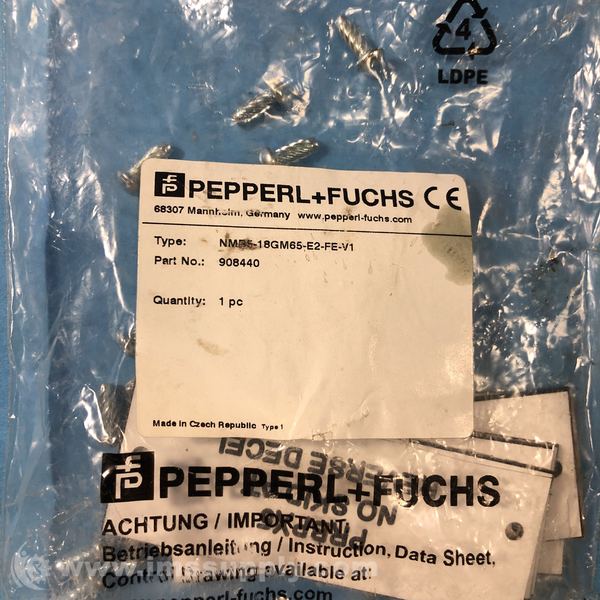

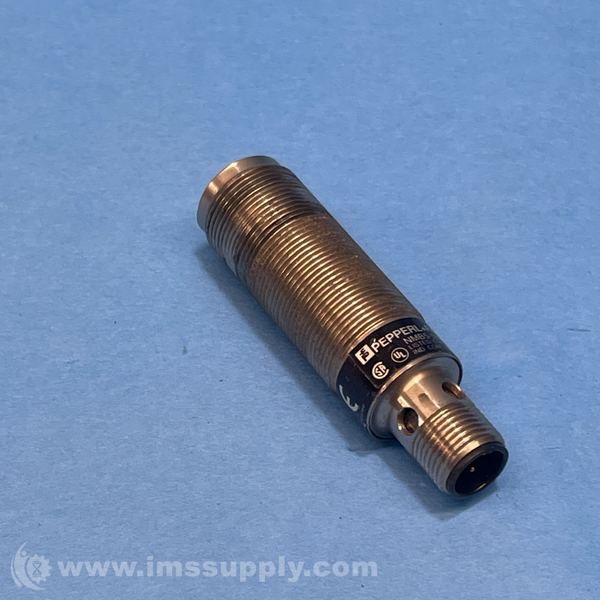

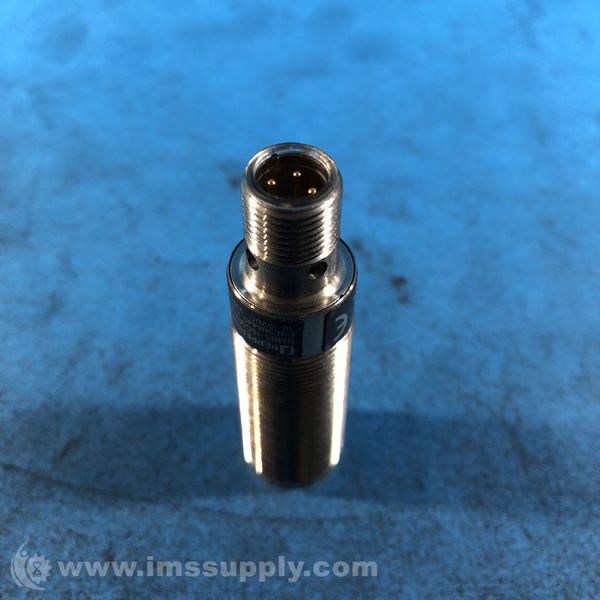

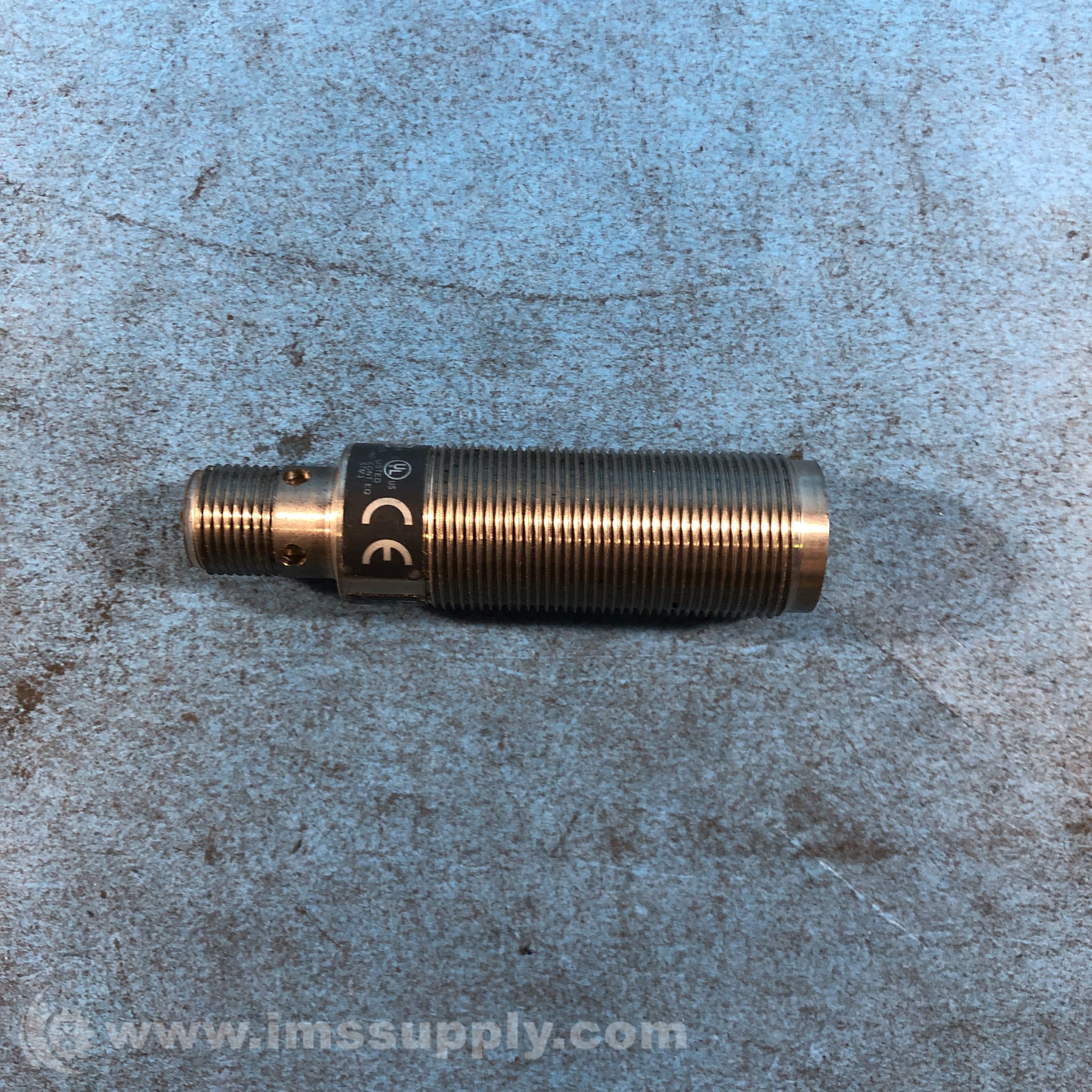

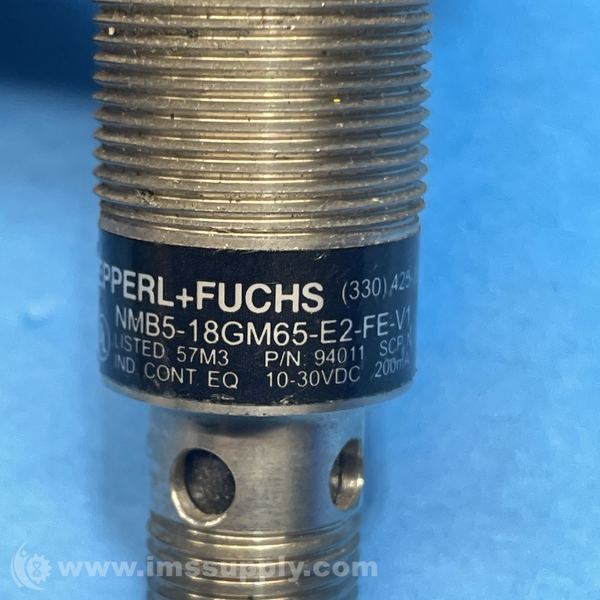

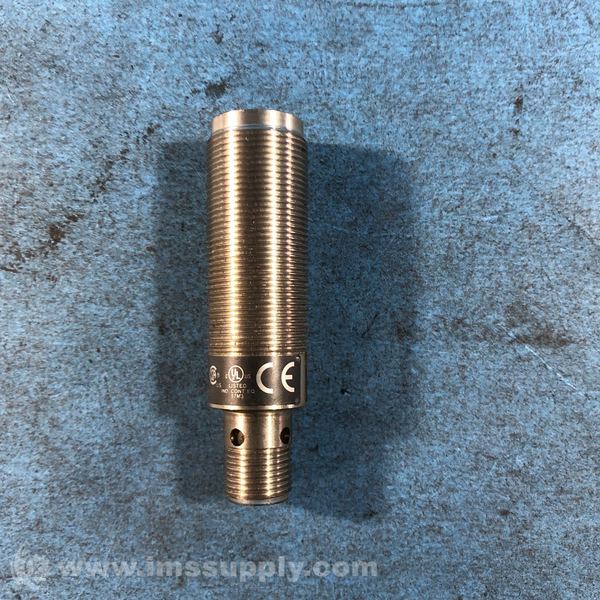

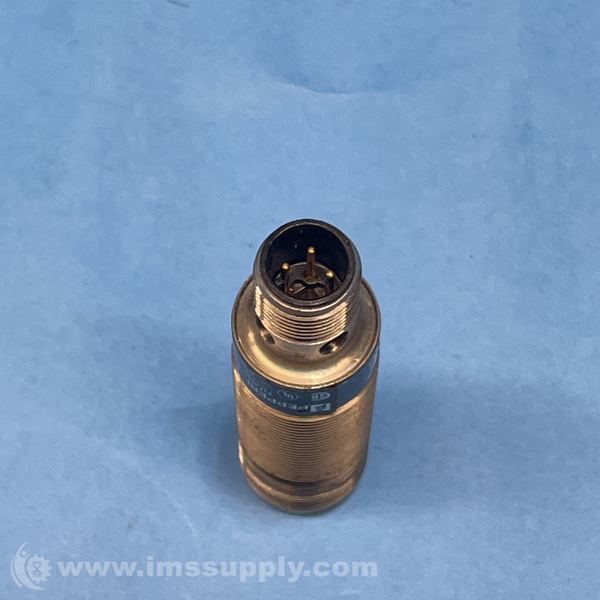

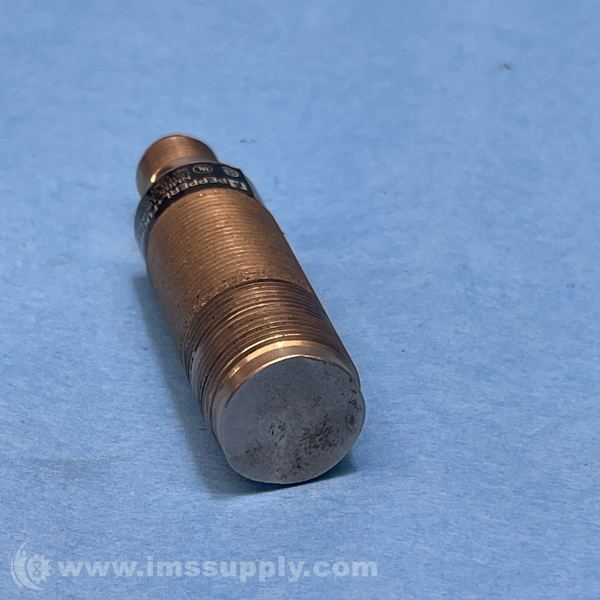

PEPPERL + FUCHS NMB5-18GM65-E2-FE-V1 INDUCTIVE SENSOR
Quick Overview
Manufactured By: PEPPERL & FUCHS
Manufacturer Part Number: NMB5-18GM65-E2-FE-V1
IMS Product Code: 1991969
Packaging: Sold Individually
Description:
Pepperl + Fuchs NMB5-18GM65-E2-FE-V1 Inductive Sensor
Stainless Steel Sensing Face, Range = 5mm, 3-wire DC, Ferrous Targets
Specifications
- Switching Function: Normally open (NO)
- Output Type: PNP
- Rated Operating Distance: 5 mm
- Installation: flush
- Assured Operating Distance: 0 ... 4.05 mm
- Actuating Element: Ferrous targets
- Reduction Factor rAl: 0
- Reduction Factor rCu: 0
- Reduction Factor r304: 0.8
- Reduction Factor rSt37: 1
- Operating Voltage: 10 ... 30 V DC
- Switching Frequency: 15 Hz
- Hysteresis: 3 ... 15 typ. 5 %
- Reverse Polarity Protection: yes
- Short-circuit Protection: yes
- Voltage Drop: = 2 V
- Operating Current: = 200 mA
- Current Consumption: < 14 mA
- Off-state Current: = 10 �A
- MTTFd: 990 a
- Mission Time (TM): 20 a
- Diagnostic Coverage (DC): 0 %
- Operation Indicator: 4-way dual LED Green: power Yellow: output
- Standards: EN IEC 60947-5-2
- UL Approval: cULus Listed
- CCC Approval: CCC approval / marking not required for products rated =36 V
- Ambient Temperature: -40 ... 70 �C (-40 ... 158 �F)
- Connection Type: Connector plug
- Housing Material: Stainless steel 1.4305 / AISI 303
- Sensing Face: Stainless steel 1.4305 / AISI 303
- Degree of Protection: IP67 / IP68 / IP69K - cordset dependent according to cable specification
- Threading: M12 x 1
- Number of Pins: 4
- Length: 50 mm
- Diameter: 18 mm
