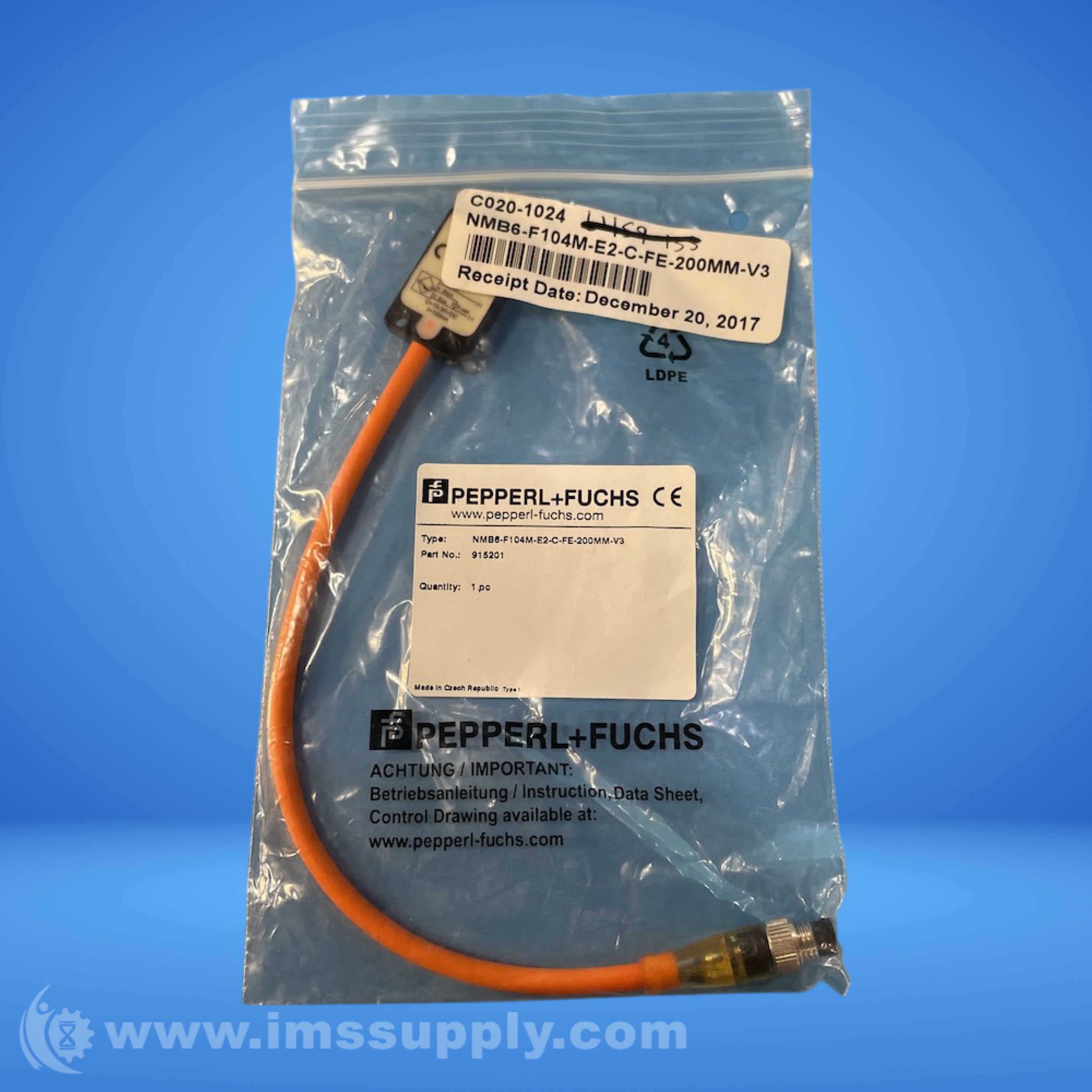

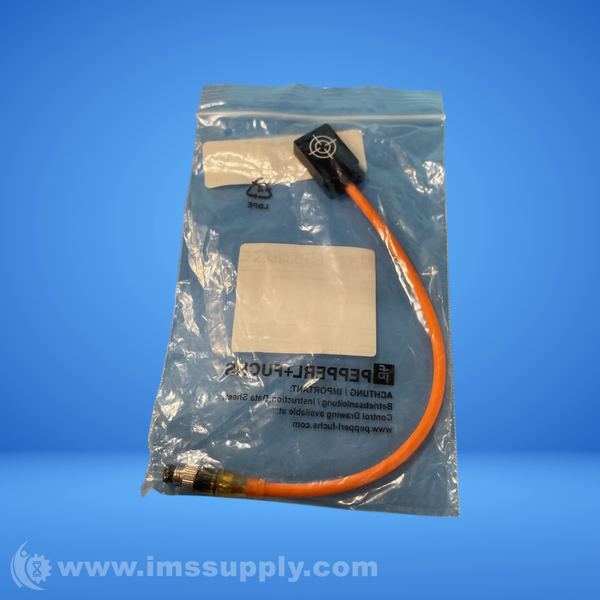

PEPPERL & FUCHS NMB6-F104M-E2-C-FE-200MM-V3 INDUCTIVE SENSOR
Quick Overview
Manufactured By: PEPPERL & FUCHS
Manufacturer Part Number: NMB6-F104M-E2-C-FE-200MM-V3
IMS Product Code: 2131687
Packaging: Sold Individually
Description:
Pepperl & Fuchs NMB6-F104M-E2-C-FE-200MM-V3 Inductive Sensor
Inductive proximity sensor with PNP output, 6mm rated operating distance, M8x1 threading, stainless steel housing, IP67 protection, 200mm cable length
Specifications
- Switching Function: Normally open (NO)
- Output Type: PNP
- Rated Operating Distance: 6 mm
- Installation: flush
- Assured Operating Distance: 0 ... 4.86 mm
- Actuating Element: Ferrous targets
- Operating Voltage: 10 ... 30 V DC
- Switching Frequency: 2 Hz
- Hysteresis: 5 ... 15 typ. 10 %
- Reverse Polarity Protection: reverse polarity protected
- Short-circuit Protection: yes
- Voltage Drop: = 2 V
- Operating Current: = 100 mA
- Current Consumption: = 22 mA
- Off-state Current: = 10 µA
- Operation Indicator: Dual LED Green: power Yellow: output
- Standards: EN 60947-5-2:2007 IEC 60947-5-2:2007
- Ambient Temperature: -25 ... 70 degrees C (-13 ... 158 degrees F)
- Connection Type: fixed cable with plug
- Housing Material: Xylan coated, Stainless steel 1.4305 / AISI 303
- Degree of Protection: IP67
- Threading: M8 x 1
- Tightening Torque: = 0.4 Nm
- Number of Pins: 3
- Cable Diameter: 4.8 mm ± 0.2 mm
- Cable Length: 200 mm
New:
A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable).
Availability: 8 In Stock
