PEPPERL+FUCHS RJ43-E INDUCTIVE RING SENSOR
Quick Overview
Manufactured By: PEPPERL & FUCHS
Manufacturer Part Number: RJ43-E
IMS Product Code: 2137415
Packaging: Sold Individually
Description:

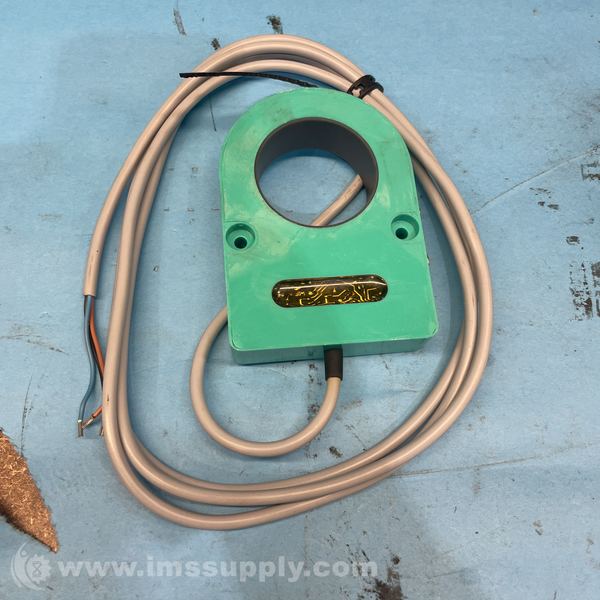

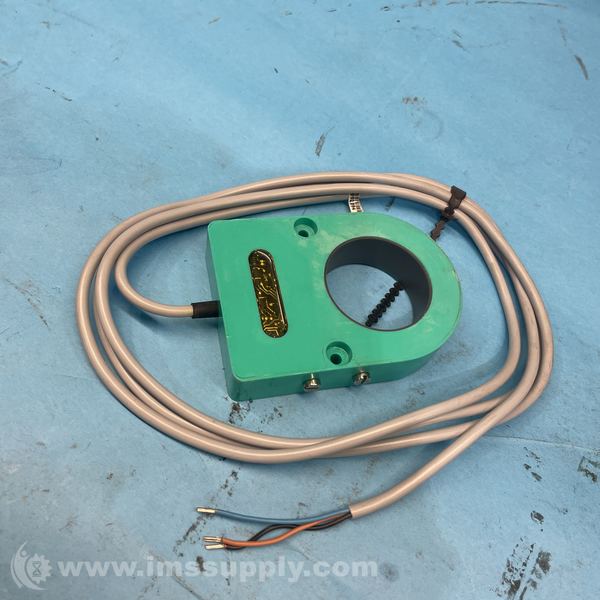

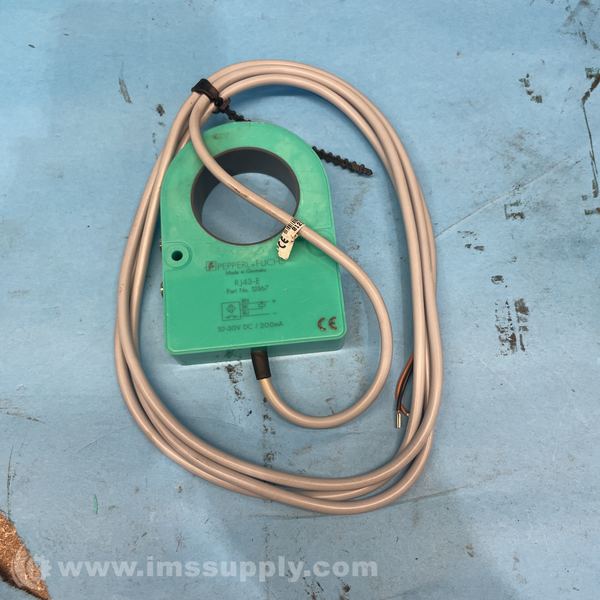

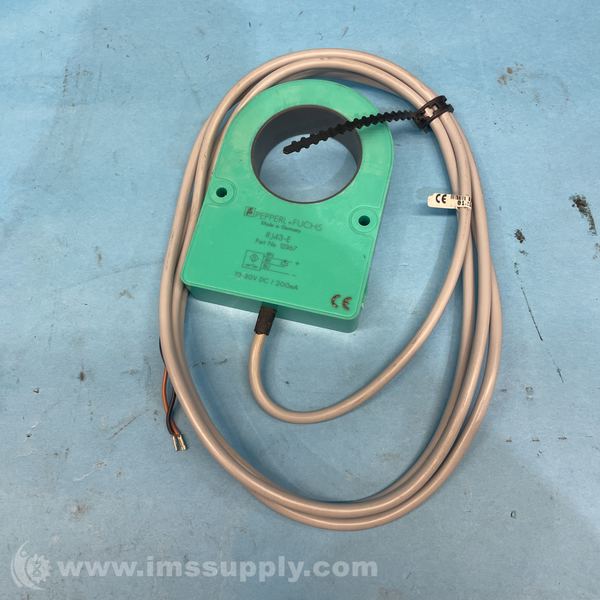

Pepperl+Fuchs RJ43-E Inductive Ring Sensor
Inductive ring sensor with 43 mm inside diameter, 3-wire DC, normally open (NO), NPN output
Specifications
- Type: Inductive Sensor
- Output: NPN
- Style: Ring
- Sensing Range: 18 MM
- Voltage: 10-30 V DC
- Wiring: 3 WIRE
- Output Type: Normally Open
- Current: 200 MA
- Frequency: 500 HZ
- Weight: 0.11 kgs
- Inside Diameter: 43MM
- Operating Voltage: 10-30V DC
- Number of Wires: 3
- Switching function: Normally open (NO)
- Output type: NPN
- Output polarity: DC
- Nominal ratings: Operating voltage : 10 ... 30 V DC, Switching frequency : 0 ... 500 Hz, Hysteresis : typ. 5%, Reverse polarity protection : reverse polarity protected, Short-circuit protection : pulsing, Voltage drop : <= 3 V, Operating current : 0 ... 200 mA, No-load supply current : <= 20 mA
- Ambient conditions: Ambient temperature : -25 ... 70 degrees C (-13 ... 158 degrees F)
- Mechanical specifications: Connection type : cable PVC , 2 m, Core cross-section : 0.34 mm2, Housing material : PBT, Degree of protection : IP67
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 2 In Stock
