PEPPERL & FUCHS V1-G-10M-PVC M12 FEMALE CORDSET
Quick Overview
Manufactured By: PEPPERL & FUCHS
Manufacturer Part Number: V1-G-10M-PVC
IMS Product Code: 1899041
Packaging: Sold Individually
Description:
Pepperl & Fuchs V1-G-10M-PVC M12 Female Cordset

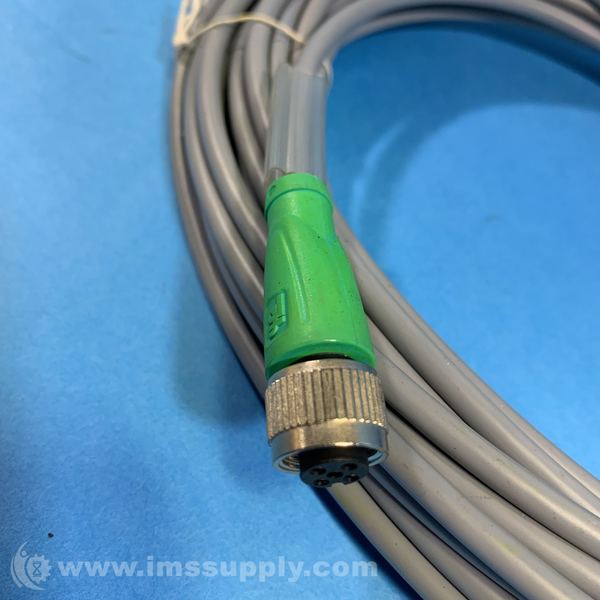

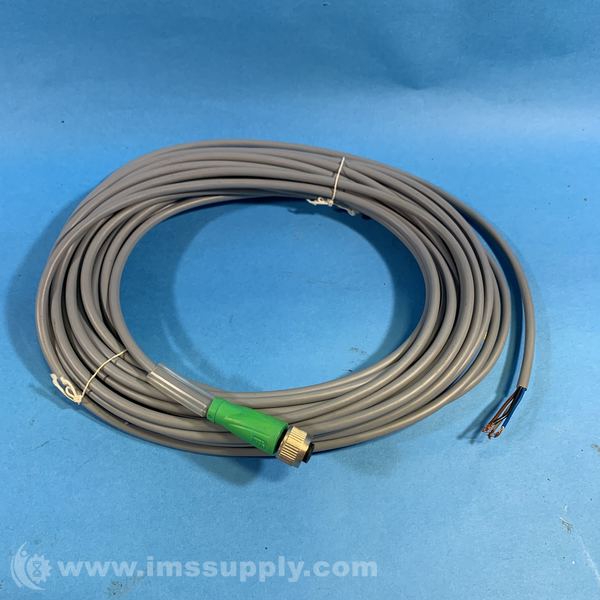

M12 female cordset with 10m PVC cable, 4-pin, A-coded, grey sheathing
Specifications
- Connection: socket
- Construction type: M12
- Style: straight

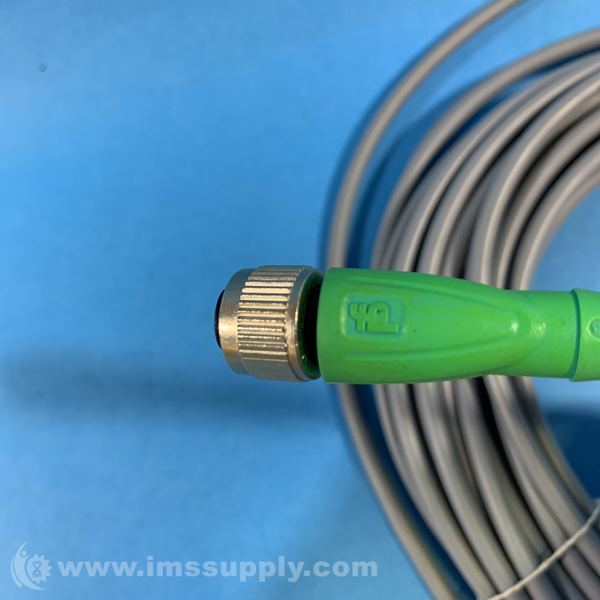

- Locking: screw connection
- Number of pins: 4
- Coding: A-coded
- Operating voltage: max. 250 V AC/DC
- Operating current: max. 4 A
- Degree of protection: IP66 / IP68 / IP69
- Ambient temperature, Plug connector: -40 ... 90 degrees C (-40 ... 194 degrees F)
- Ambient temperature, Cable, fixed installation: -25 ... 70 degrees C (-13 ... 158 degrees F)
- Ambient temperature, Cable, flexing: -5 ... 70 degrees C (23 ... 158 degrees F)
- Pollution degree: 3
- Tightening torque: 0.6 Nm
- Mating cycles: min. 100
- Sheath diameter: 4.8 mm
- Bending radius: > 10 x cable diameter, movable installation
- Sheath stripping force: max. 80 N / 300 mm
- Sheath color: grey (similar to RAL 7001)

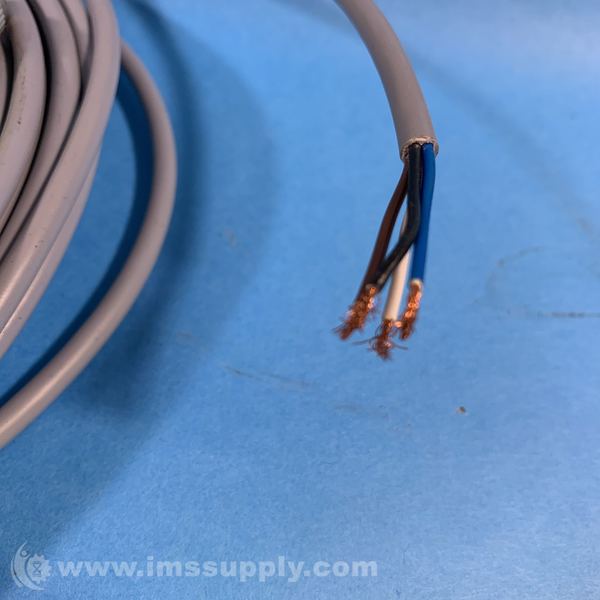

- Number of cores: 4
- Core cross section: 0.34 mm2
- Length: 10 m

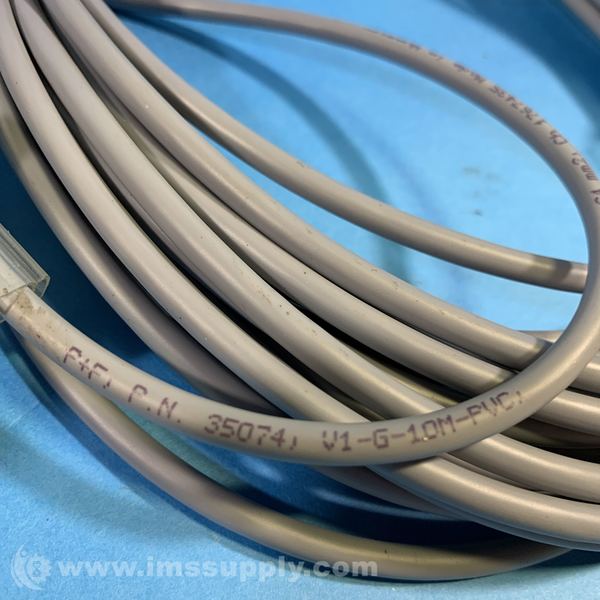

- Cable code: Li Y YM 4 x 0,34
- Mass: 359 g
- Material: PVC
- Series: V1 Series
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
