PETER PAUL ELECTRONICS 21K7XCV SOLENOID VALVE
Quick Overview
Manufactured By: PETER PAUL ELECTRONICS
Manufacturer Part Number: 21K7XCV
IMS Product Code: 1845798
Packaging: Sold Individually
Description:

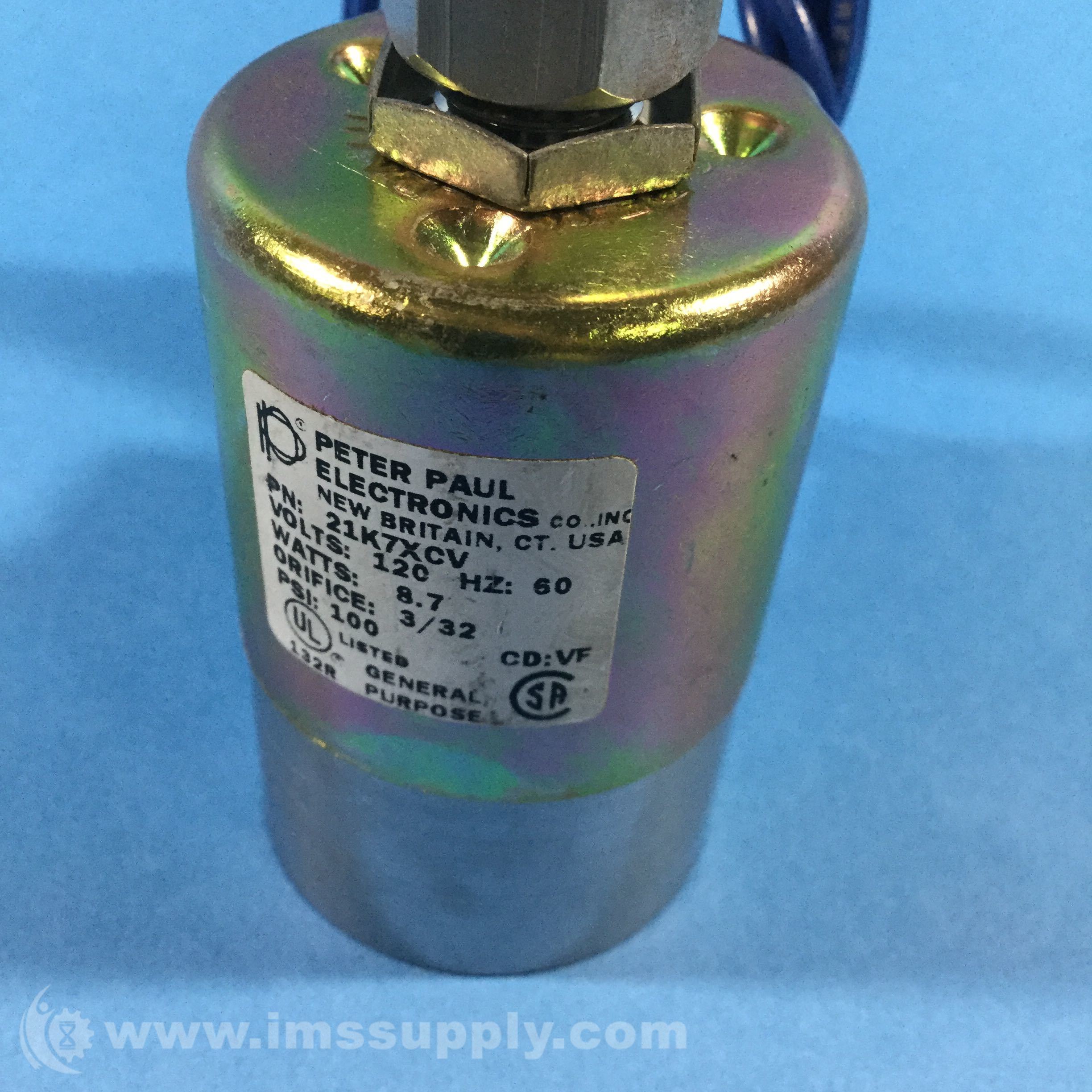

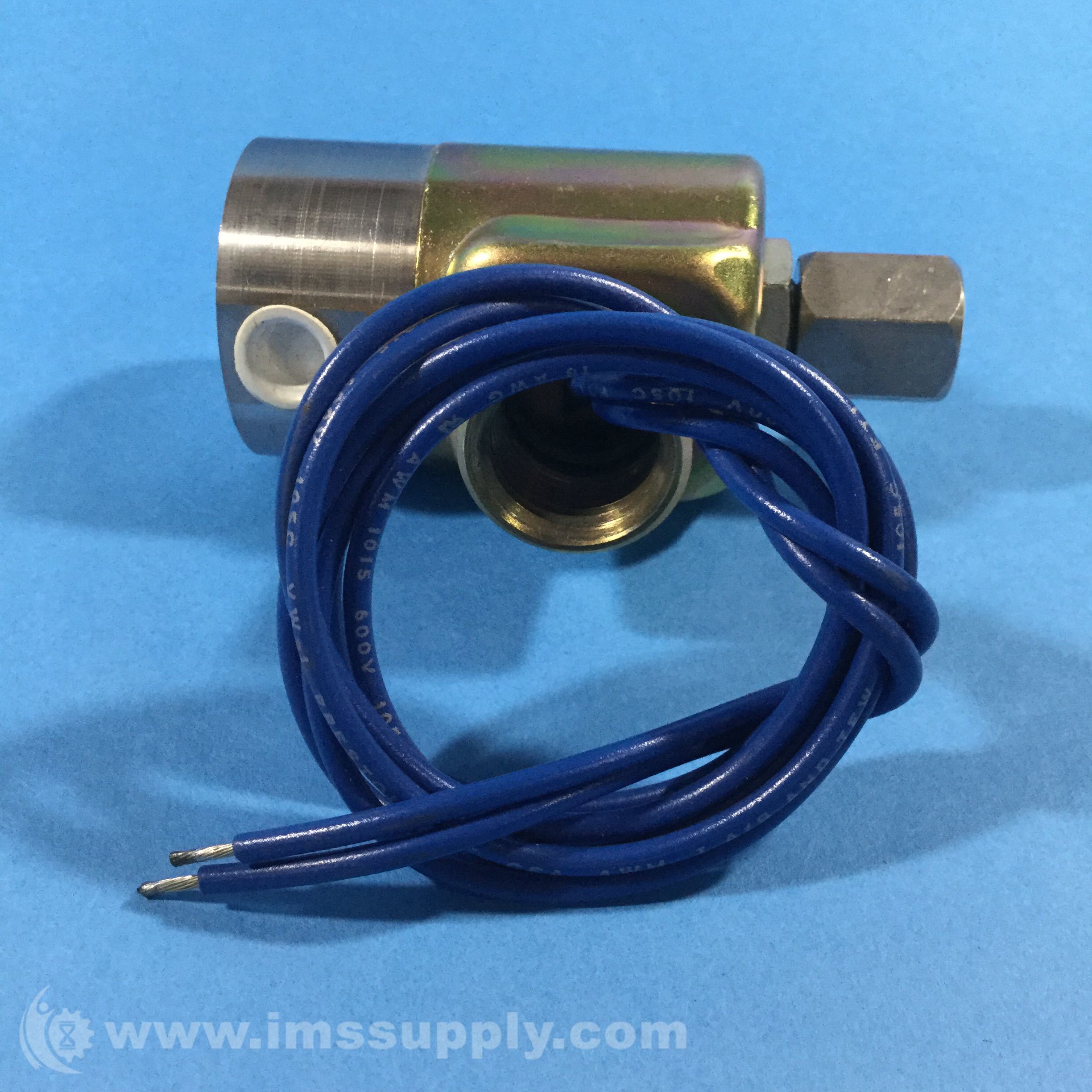

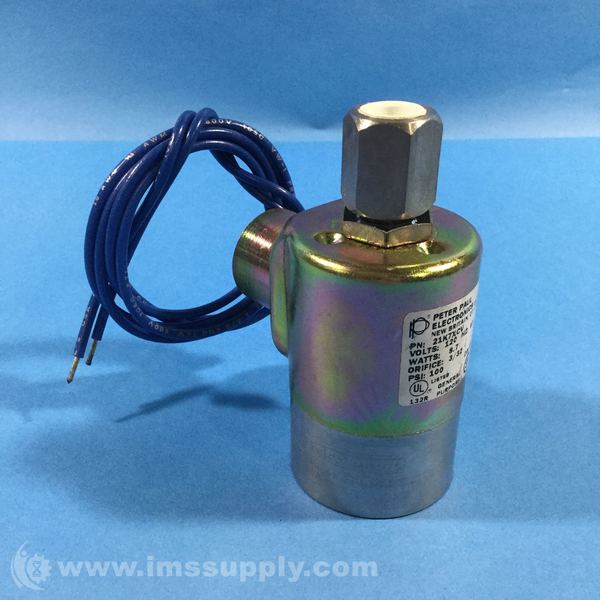

Peter Paul Electronics 21K7XCV Solenoid Valve
2-Way Normally Open Stainless Steel Body Grommet Housing Solenoid Valve
Specifications
- Orifice Diameter: 3/32"
- Ports: 1/8" NPT
- Sleeve Port: 1/8" NPT
- Electrical Leads: 24"
- Body Material: Stainless Steel
- Housing Type: Grommet and 1/2" NPT conduit
- Maximum Operating Pressure Differentials: 100 psi / 150 psi (uprated)
- Burst Pressure: 5000 PSI
- Leakage: Bubble tight
- Vacuum: To 5 Microns
- Coil Voltage: 6 to 825V AC 60 HZ. and 5 to 720V AC 50 HZ. � 1.8 to 265V DC
- Nominal Power: AC � 8.7 Watts, DC � 9.5 Watts
- Typical Response Time on Air: 4 � 16 Milliseconds
- Operating Speed: Up to 600 CPM
- Duty Cycle: Continuous
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 2 In Stock
Ships today if ordered in the next 13 hours and 41 minutes.
