PETER PAUL ELECTRONICS 22N7DCV SOLENOID VALVE
Quick Overview
Manufactured By: PETER PAUL ELECTRONICS
Manufacturer Part Number: 22N7DCV
IMS Product Code: 1845074
Packaging: Sold Individually
Description:

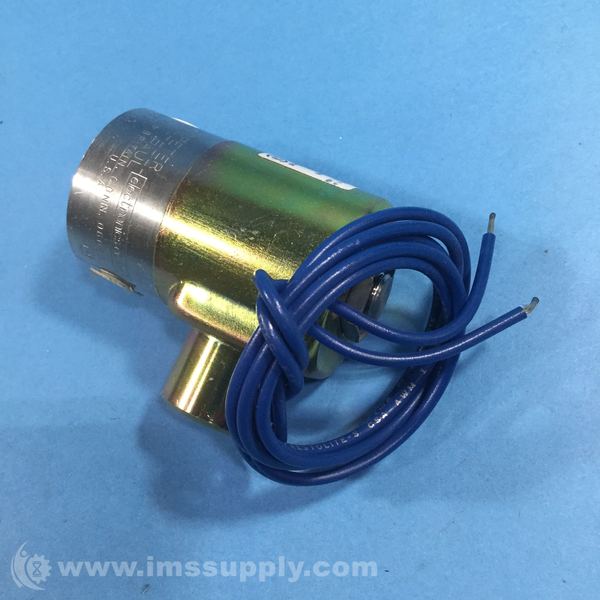

Peter Paul Electronics 22N7DCV Solenoid Valve
2-Way Normally Closed Solenoid Valve with Stainless Steel body and Nitrile seals. Compatible with air, water, and other fluids.
Specifications
- Media: Air, water, and other fluids compatible with standard Buna seals
- Valve Temperature Range: 0�F (-18�C) to 104�F (40�C) ambient; 0�F (-18�C) to 150�F (65�C) media
- Burst Pressure: 5000 PSI
- Leakage: Bubble tight for standard valves
- Vacuum: To 5 Microns
- Coil Voltage: 6 to 825V AC 60 HZ. and 5 to 720V AC 50 HZ. � 1.8 to 265V DC
- Nominal Power: AC � 7.7 Watts DC � 9.5 Watts
- Typical Response Time on Air: 4 � 16 Milliseconds
- Operating Speed: Up to 600 CPM
- Duty Cycle: Continuous
- Body: Stainless Steel (Std.) or Brass (Opt.)
- Internal Components: Stainless Steel
- Elastomers: Nitrile (Buna) (Std.)
- Porting: Standard 1/8? and 1/4? NPT
- Life Expectancy: Millions of cycles
- Valve Weight: Grommet Valve: 1.06 lb Conduit Valve: 1.13 lb
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships today if ordered in the next 13 hours and 41 minutes.
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 2 In Stock
Ships today if ordered in the next 13 hours and 41 minutes.
