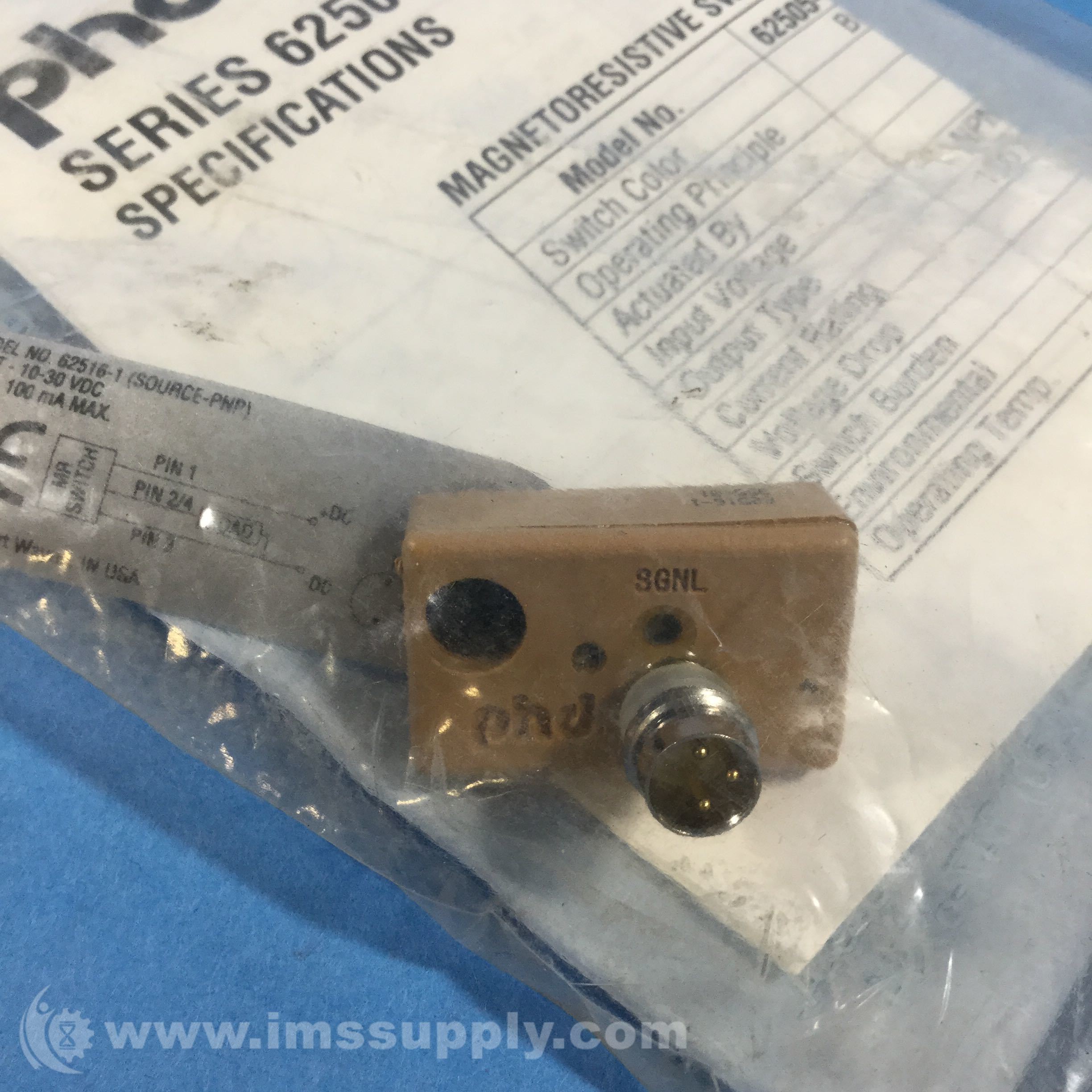

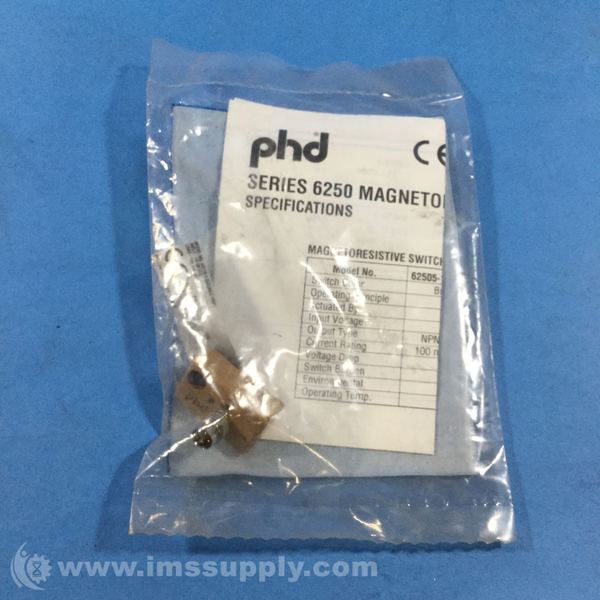

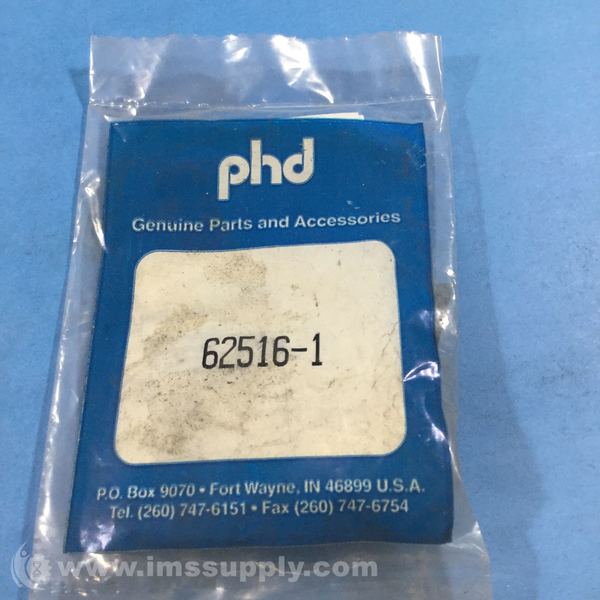

PHD INC 62516-1 SERIES 6250 MAGNETORESISTIVE SWITCH
Quick Overview
Manufactured By: PHD INC
Manufacturer Part Number: 62516-1
IMS Product Code: 1766035
Packaging: Sold Individually
Description:
Phd Inc 62516-1 Series 6250 Magnetoresistive Switch
Specifications:
- Switch Color: Tan
- Operating Principle: Magnetoresistive
- Actuated By: Moving Magnet
- Input Voltage: 10 to 30 VDC
- Output Type: NPN (Sink) PNP (Source)
- Current Rating: 100 mA. Max. 100 mA. Max.
- Voltage Drop: .5 VDC Max.
- Switch Burden: 12 mA. Max.
- Environmental: IP67
- Operating Temp.: 0 to 80°C
