PHOENIX CONTACT 1792799 PCB CONNECTOR
Quick Overview
Manufactured By: PHOENIX CONTACT
Manufacturer Part Number: 1792799
IMS Product Code: 2152823

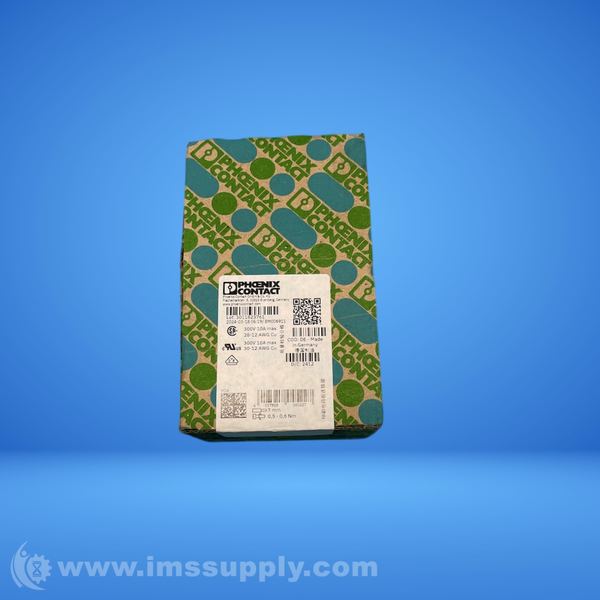

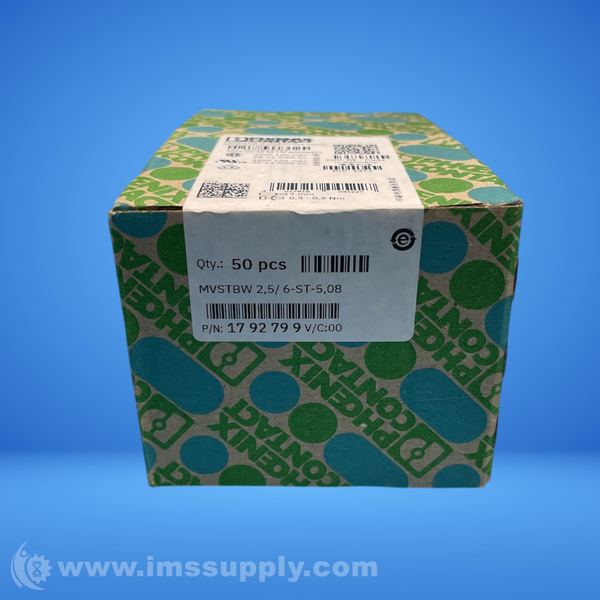

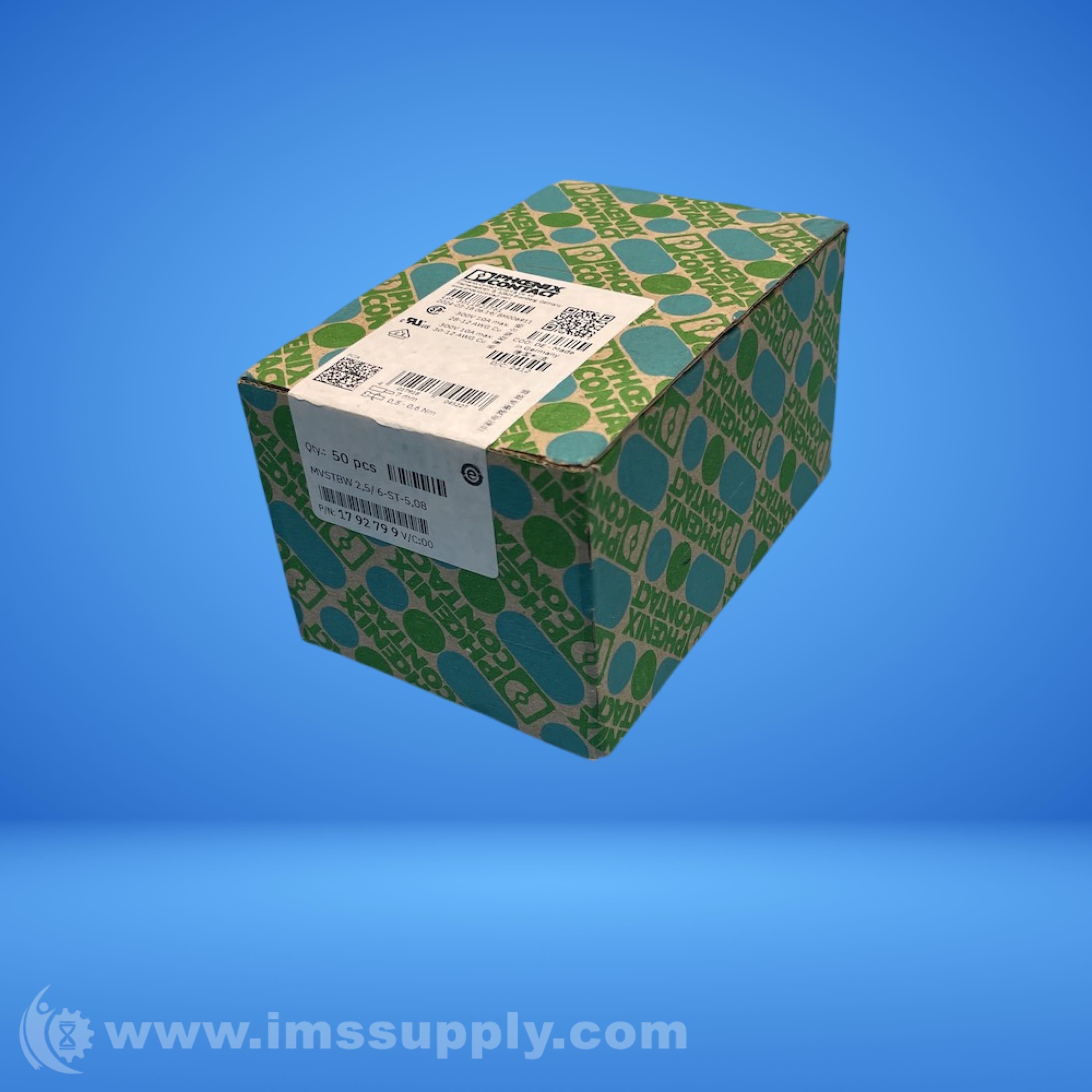

Packaging: Box of 50
Description:
Phoenix Contact 1792799 PCB Connector
6-position PCB connector with screw connection, 5.08mm pitch, green housing, tin 4-8µm, 320V/12A rated
Specifications
- Number of positions: 6
- Pitch: 5.08 mm
- Number of connections: 6
- Number of rows: 1
- Number of potentials: 6
- Nominal current: 12 A
- Nominal voltage: 320 V
- Contact resistance: 2.6 mO
- Conductor/PCB connection direction: -90 degrees
- Conductor cross-section: 0.2-2.5mm²
- Insulating material: PA
- Flammability rating: V0
- Ambient temperature: -40 to 100°C
- Width: 30.48 mm
- Height: 26 mm
- Length: 12.5 mm
New:
A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable).
Availability: 1 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
