PHOENIX CONTACT 2281050 INTERFACE MODULE
Quick Overview
Manufactured By: PHOENIX CONTACT
Manufacturer Part Number: 2281050
IMS Product Code: 1734760
Packaging: Sold Individually
Description:

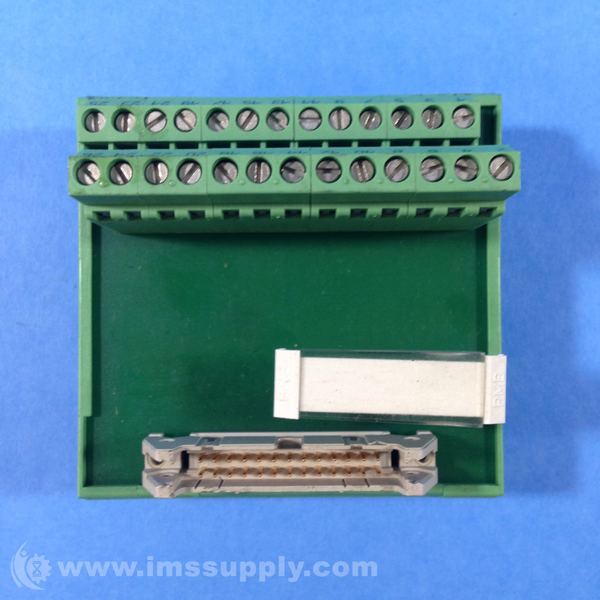

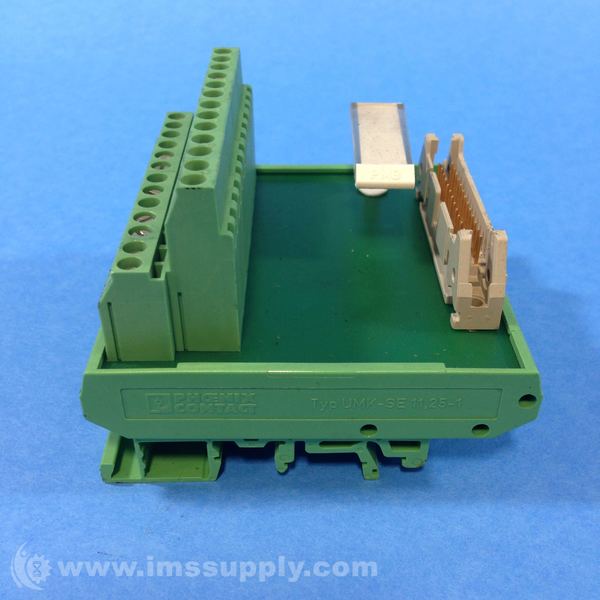

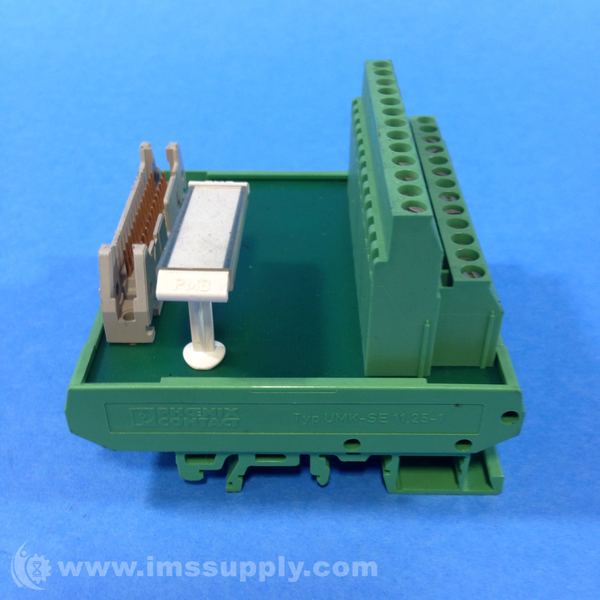

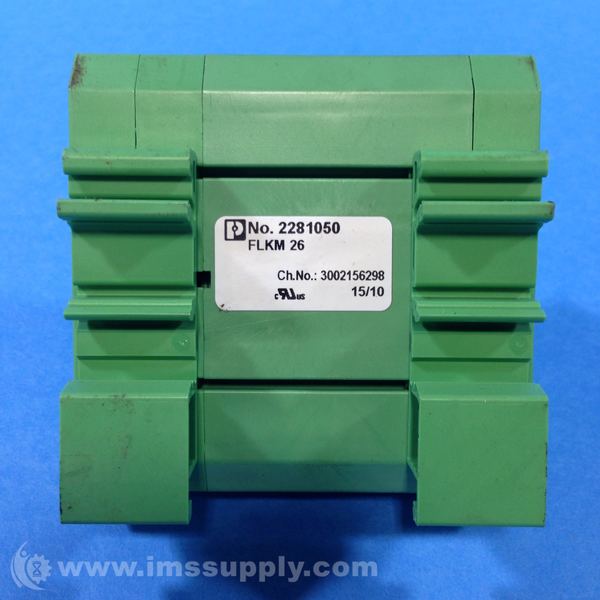

Phoenix Contact 2281050 Interface Module
VARIOFACE module with screw connection and flat-ribbon cable connector, for mounting on NS 32 or NS 35/7.5, with pin strip and short and long locking latches for socket strips, 26-pos.
Specifications
- Product type: Interface module
- Product family: VARIOFACE
- Number of positions: 26
- Insulation: Functional insulation
- Overvoltage category: II
- Pollution degree: 2
- Operating voltage (AC): = 30 V AC
- Operating voltage (DC): = 60 V DC
- Current (per branch): = 1 A
- Rated insulation voltage: 63 V
- Rated surge voltage: 0.6 kV (1.2/50 µs)
- Connection method (Control level): IDC/FLK pin strip
- Connection method (Field level): Screw connection
- Conductor cross-section rigid: 0.2 mm² ... 4 mm²
- Conductor cross-section flexible: 0.2 mm² ... 2.5 mm²
- Conductor cross-section AWG: 24 ... 12
- Tightening torque: 0.5 Nm ... 0.6 Nm
- Pitch (Control level): 2.54 mm
- Pitch (Field level): 5.08 mm
- Width: 78.75 mm
- Height: 77 mm
- Depth: 57.47 mm
- Color: green (RAL 6021)
- Housing insulation material: Polyamide 6 green
- Degree of protection (Module): IP00
- Degree of protection (Installation location): >= IP54
- Ambient temperature (operation): -20 °C ... 50 °C
- Ambient temperature (storage/transport): -20 °C ... 70 °C
- Altitude: = 2000 m
- Mounting type: DIN rail mounting
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 1 In Stock
Ships on Monday, December 8, 2025
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
Used (Special):
This part does not have a label holder.
Availability: 3 In Stock
Ships on Monday, December 8, 2025
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
Used (Special):
This part is missing a tab on white connector. Also missing label holder.
Availability: 1 In Stock
Ships on Monday, December 8, 2025
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
