PHOENIX CONTACT 2726230 INLINE DIGITAL INPUT TERMINAL
Quick Overview
Manufactured By: PHOENIX CONTACT
Manufacturer Part Number: 2726230
IMS Product Code: 2136576
Packaging: Sold Individually
Description:

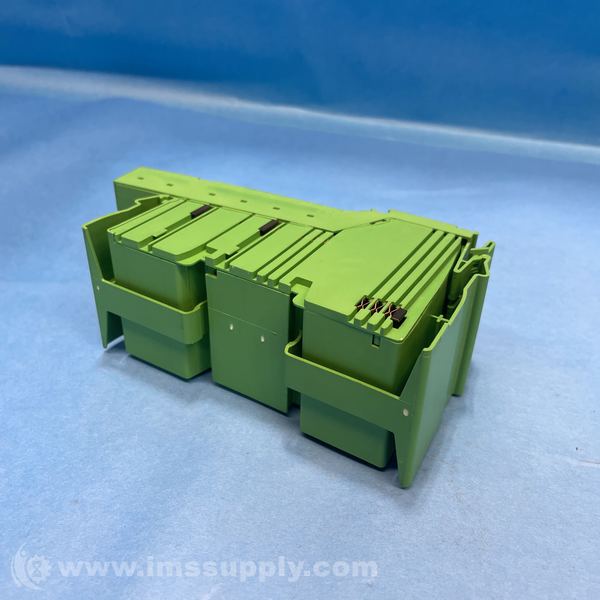

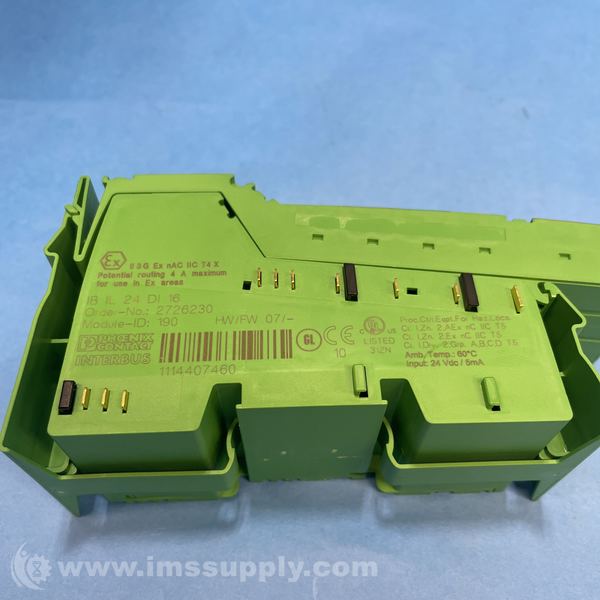

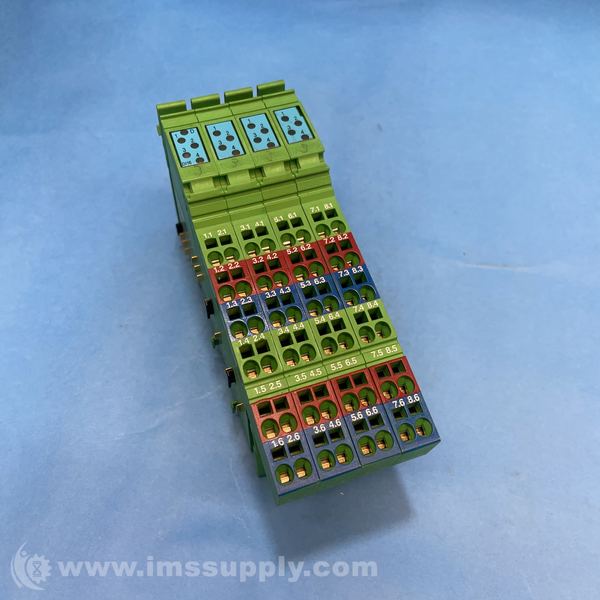

Phoenix Contact 2726230 Inline Digital Input Terminal
Inline digital input terminal with 16 inputs, 24 V DC, 2- and 3-conductor connection system
Specifications
- Number of Inputs: 16
- Input Voltage: 24 V DC
- Connection Method: Spring-cage connection
- Connection Technology: 2-, 3-conductor
- Supply Voltage: 7.5 V DC (via voltage jumper)
- Current Draw: max. 60 mA
- Supply Voltage Range: 19.2 V DC ... 30 V DC
- Input Voltage Range "0" Signal: -3 V DC ... 5 V DC
- Input Voltage Range "1" Signal: 15 V DC ... 30 V DC
- Conductor Cross-section: 0.08 mm˛ ... 1.5 mm˛
- Width: 48.8 mm
- Height: 119.8 mm
- Depth: 71.5 mm
- Ambient Temperature (Operation): -25 degrees C ... 55 degrees C
- Protection Class: III
- Mounting Type: DIN rail mounting
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 2 In Stock
Ships today if ordered in the next 16 hours and 18 minutes.
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 5 In Stock
Ships today if ordered in the next 16 hours and 18 minutes.
