PHOENIX CONTACT 2859084 SURGE PROTECTION DEVICE
Quick Overview
Manufactured By: PHOENIX CONTACT
Manufacturer Part Number: 2859084
IMS Product Code: 1916553
Packaging: Sold Individually
Description:

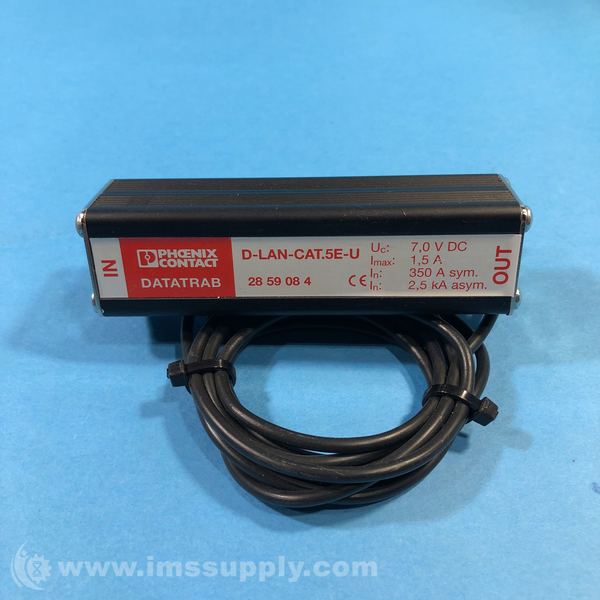

Phoenix Contact 2859084 Surge Protection Device

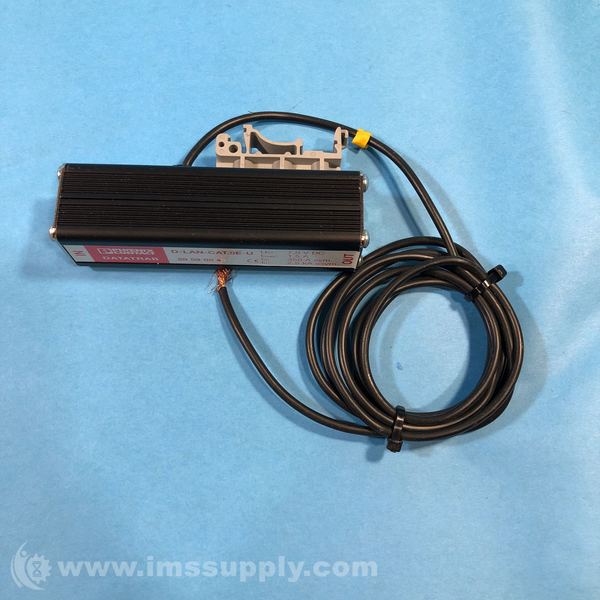

Fine surge protection in accordance with Class D (CAT.5e), for token ring and Ethernet. RJ45 attachment plug with separate grounding cable and snap-on foot for NS 35/7.5 DIN rails
Specifications
- Product family: DATATRAB
- IEC test classification: C1,C2,C3,B2,B3
- Type: Attachment plug for DIN rail mounting
- Connection method: RJ45
- Width: 25.4 mm
- Height: 94 mm
- Depth: 45.4 mm
- Color: black (RAL 9005)
- Housing material: Aluminum, anodized
- Maximum continuous operating voltage UC: ± 7 V DC
- Rated current: 1.5 A (25 °C)
- Nominal discharge current In (8/20) µs (line-line): 350 A
- Nominal discharge current In (8/20) µs (line-ground): 2.5 kA
- Degree of protection: IP20
- Ambient temperature (operation): -40 °C ... 80 °C
- Mounting type: DIN rail: 35 mm
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
