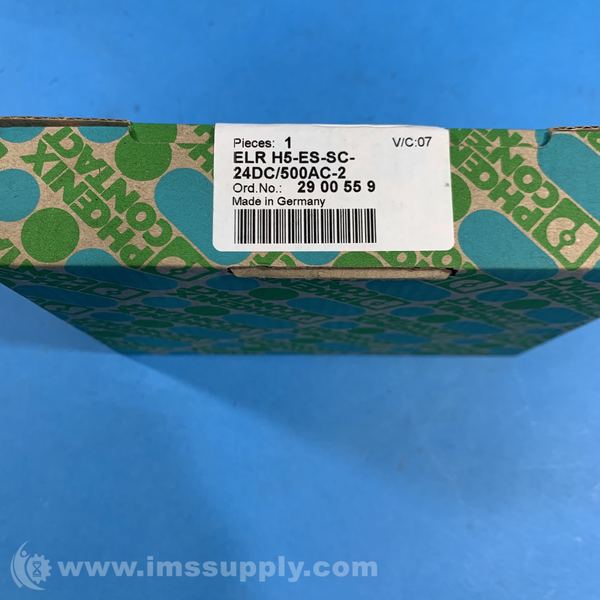

PHOENIX CONTACT ELR-H5-ES-SC-24DC/500AC-2 HYBRID MOTOR STARTER
Quick Overview
Manufactured By: PHOENIX CONTACT
Manufacturer Part Number: ELR-H5-ES-SC-24DC/500AC-2
IMS Product Code: 1846286
Packaging: Sold Individually
Description:
Phoenix Contact ELR-H5-ES-SC-24DC/500AC-2 Hybrid Motor Starter
Reversing starter for 3~ AC motors up to 500 V AC and 2.4 A output current, with 24 V DC control voltage, adjustable overload shutdown and emergency stop function to SIL 3 / PL e
Specifications
- Product family: CONTACTRON
- Operating mode: 100% operating factor
- Number of phases: 3
- Motor starter type: Reversing starter
- Rated control circuit supply voltage US: 24 V DC
- Control supply voltage range: 19.2 V DC ... 30 V DC
- Rated operating voltage Ue: 500 V AC
- Rated operating current Ie: 2.4 A (AC-51)
- Load current range: 180 mA ... 2.4 A
- Trigger characteristic in acc. with IEC 60947-4-2: Class 10A
- Connection method: Screw connection
- Conductor cross-section rigid: 0.2 mm� ... 2.5 mm�
- Conductor cross-section flexible: 0.2 mm� ... 2.5 mm�
- Tightening torque: 0.5 Nm ... 0.6 Nm
- Width: 22.5 mm
- Height: 107 mm
- Depth: 114 mm
- Degree of protection: IP20
- Ambient temperature (operation): -25 degrees C ... 70 degrees C
- Safety Integrity Level (SIL, IEC 61508): 3
- Performance Level (ISO 13849): e
- Category (ISO 13849): 3
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
