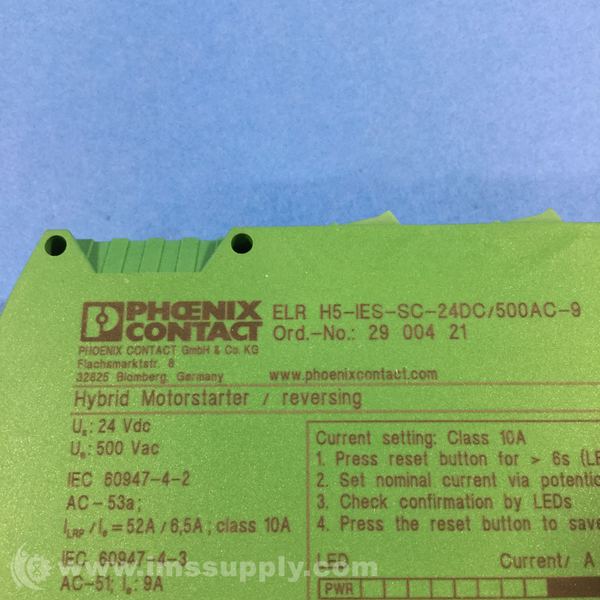

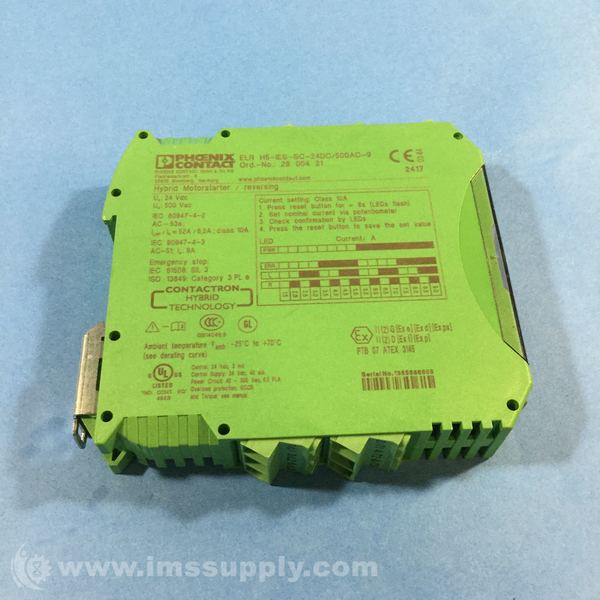

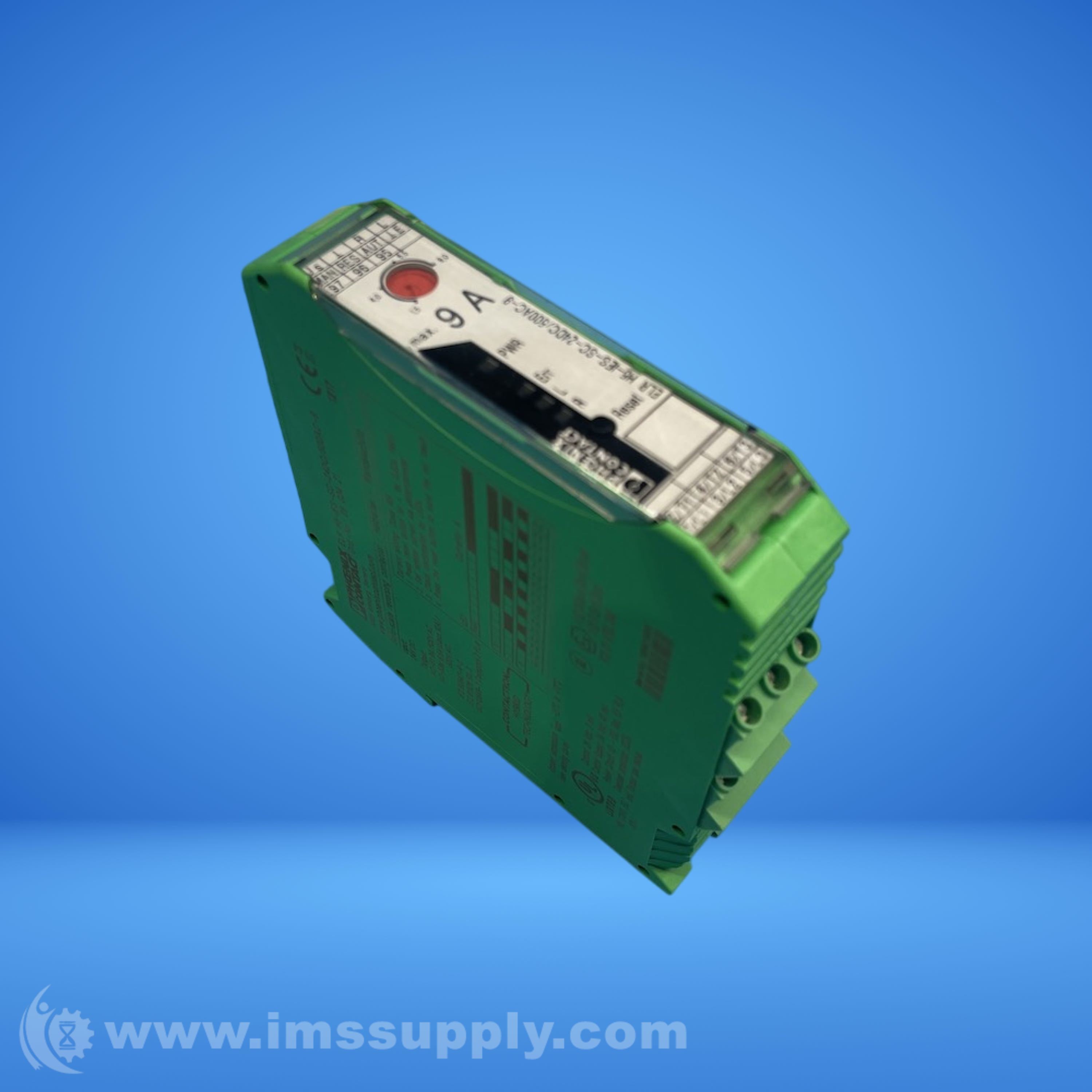

PHOENIX CONTACT ELR H5-IES-SC-24DC/500AC-9 HYBRID MOTOR STARTER
Quick Overview
Manufactured By: PHOENIX CONTACT
Manufacturer Part Number: ELR H5-IES-SC- 24DC/500AC-9
IMS Product Code: 1777940
Packaging: Sold Individually
Description:
Phoenix Contact ELR H5-IES-SC-24DC/500AC-9 Hybrid Motor Starter
Hybrid motor starter for reversing 3~ AC motors up to 500 V AC and 9 A output current, with 24 V DC control voltage, adjustable overload shutdown, emergency stop function to SIL 3/PL e, and screw connection.
Specifications
- Product type: Hybrid motor starters
- Product family: CONTACTRON
- Operating mode: 100% operating factor
- Number of phases: 3
- Motor starter type: Reversing starter
- Switching frequency: = 2 Hz (Load-dependent)
- Maximum power dissipation for nominal condition: 13.5 W
- Maximum power dissipation: 14.6 W
- Minimum power dissipation: 1.1 W
- Coordination type: 1
- Rated control circuit supply voltage US: 24 V DC
- Control supply voltage range: 19.2 V DC ... 30 V DC
- Rated control supply current IS: 40 mA
- Rated insulation voltage: 500 V
- Rated surge voltage: 6 kV
- Overvoltage category: III
- Degree of pollution: 2
- Rated operating voltage Ue: 500 V AC
- Operating voltage range: 42 V AC ... 550 V AC
- Rated operating current Ie: 9 A (AC-51)
- Mains frequency: 50/60 Hz
- Load current range: 1.5 A ... 9 A (see to derating)
- Trigger characteristic in acc. with IEC 60947-4-2: Class 10A
- Cooling time: 20 min (for auto reset)
- Leakage current: 0 mA
- Connection method: Screw connection
- Stripping length: 8 mm
- Screw thread: M3
- Conductor cross-section rigid: 0.2 mm˛ ... 2.5 mm˛
- Conductor cross-section flexible: 0.2 mm˛ ... 2.5 mm˛
- Conductor cross-section AWG: 24 ... 14
- Tightening torque: 0.5 Nm ... 0.6 Nm
- Width: 22.5 mm
- Height: 107 mm
- Depth: 114 mm
- Degree of protection: IP20
- Ambient temperature (operation): -25 degrees C ... 70 degrees C (observe derating)
- Ambient temperature (storage/transport): -40 degrees C ... 80 degrees C
- Altitude: = 2000 m
- Flammability rating according to UL 94 (Housing): V0 (Housing)
- Safety Integrity Level (SIL, IEC 61508): = 3
- Performance Level (ISO 13849): = e
- Category (ISO 13849): = 3
- Mounting type: DIN rail mounting

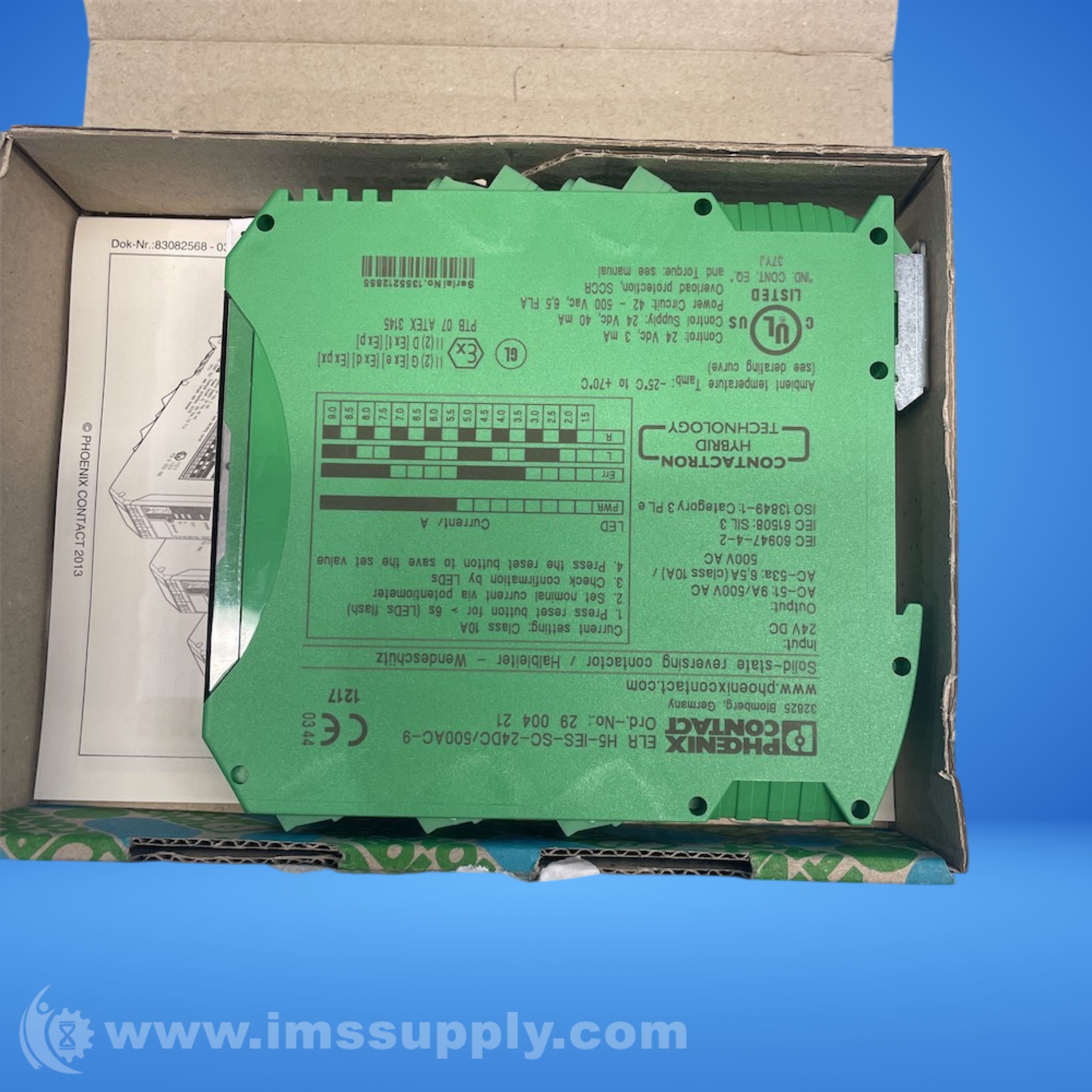

New - Open Box:
