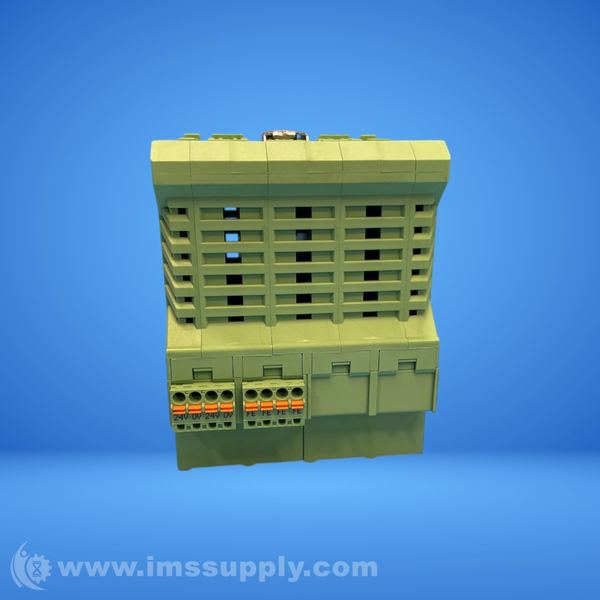

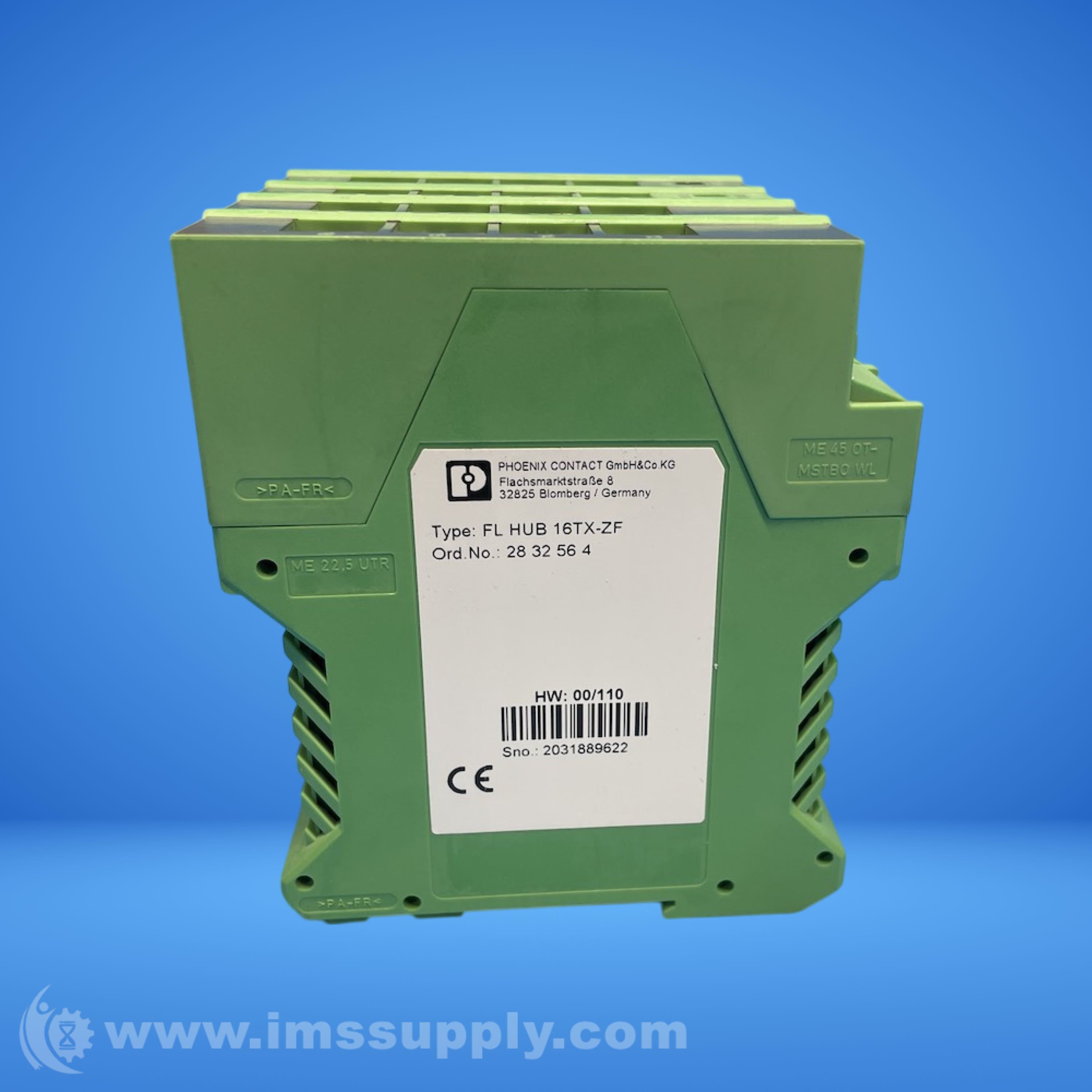

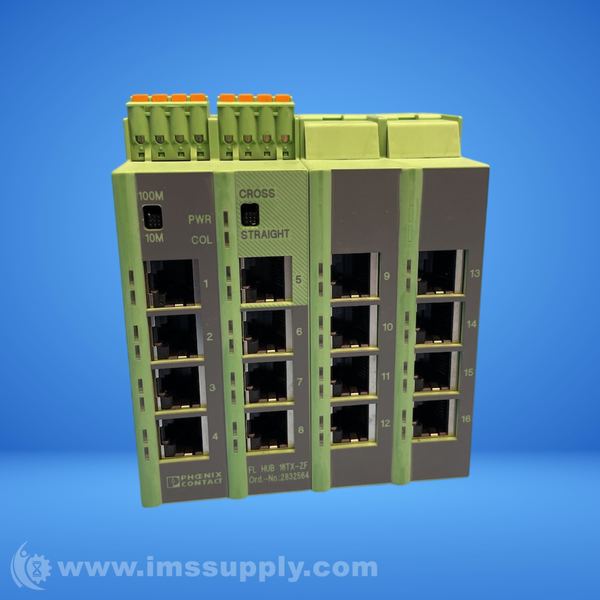

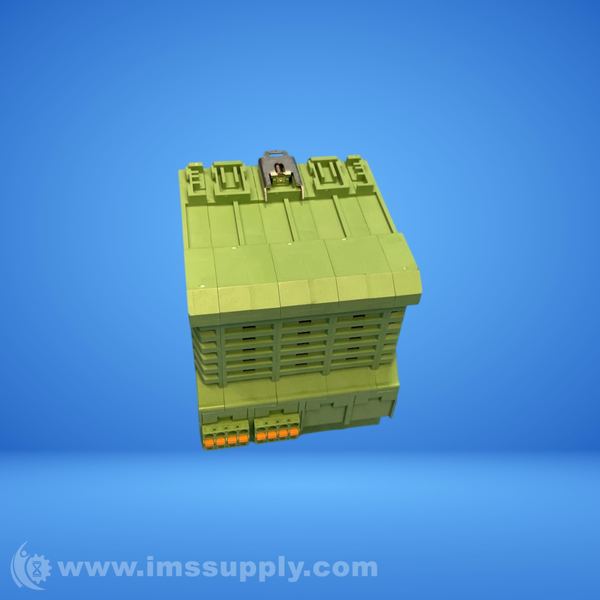

PHOENIX CONTACT FL HUB 16TX-ZF ETHERNET HUB
Quick Overview
Manufactured By: PHOENIX CONTACT
Manufacturer Part Number: FL HUB 16TX-ZF
IMS Product Code: 2123561
Packaging: Sold Individually
Description:
Phoenix Contact FL HUB 16TX-ZF Ethernet Hub
Ethernet hub with 16 RJ45 ports, supporting 10/100 Mbps Ethernet. Enables quick and cost-effective Ethernet network extension through sixteen twisted pair ports for connecting additional network segments or termination devices. The hub regenerates received data telegrams and sends them to remaining ports, with a port assignment switch on port 5 for exchanging transmit and receive cables.
Specifications
- Width: 90 mm
- Height: 99 mm
- Depth: 112 mm
- Color: green
- Housing material: Plastic
- Mounting type: DIN rail mounting
- Connection method: RJ45 jack
- Transmission speed: 10/100 Mbps
- Transmission physics: Ethernet RJ45
- Transmission length: 100 m
- No. of channels: 16 (RJ45 ports)
- Operating mode: Semi-duplex
- Supply voltage (DC): 24 V DC
- Supply voltage range: 18.5 V DC ... 30.5 V DC
- Power supply connection: Via COMBICON, max. conductor cross-section 2.5 mm²
- Degree of protection: IP20
- Ambient temperature (operation): 0 °C ... 55 °C
- Ambient temperature (storage/transport): -25 °C ... 70 °C
- Weight: 0.4 kg

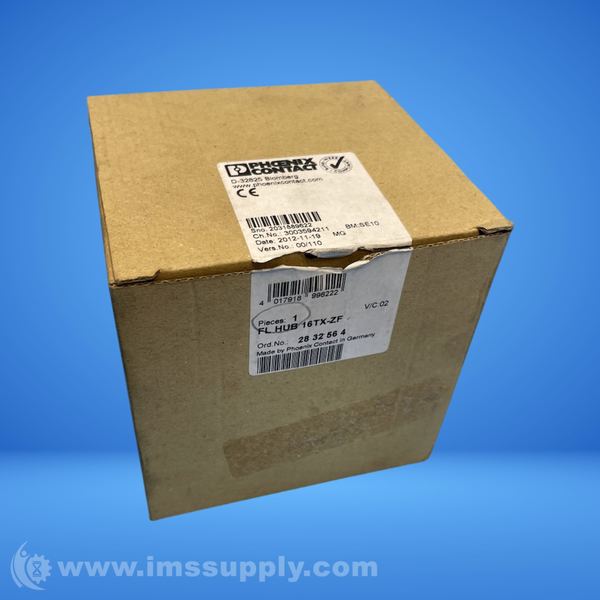

New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships today if ordered in the next 1 hours and 48 minutes.
