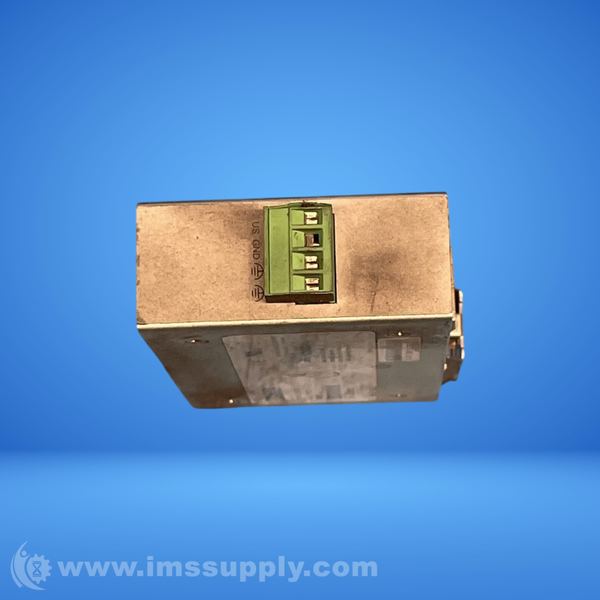

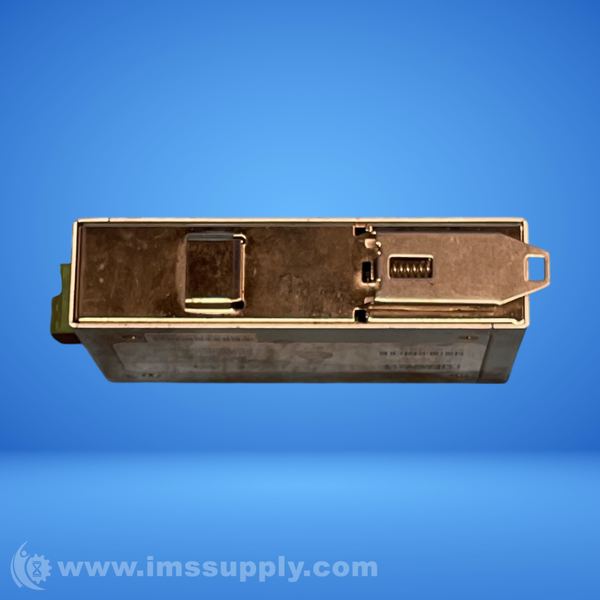

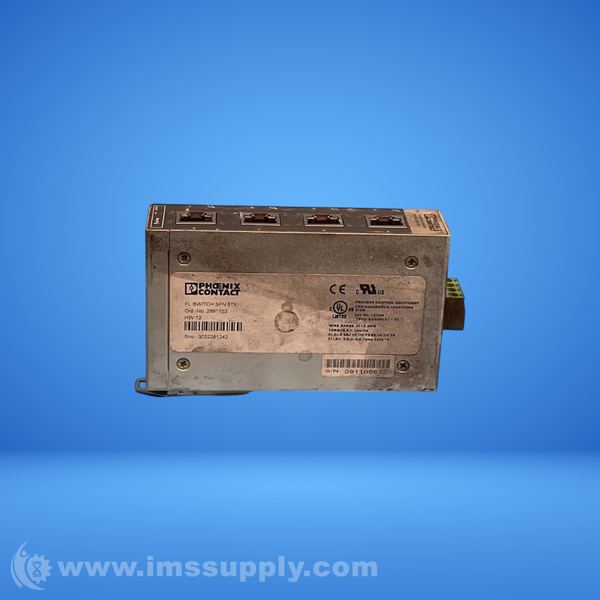

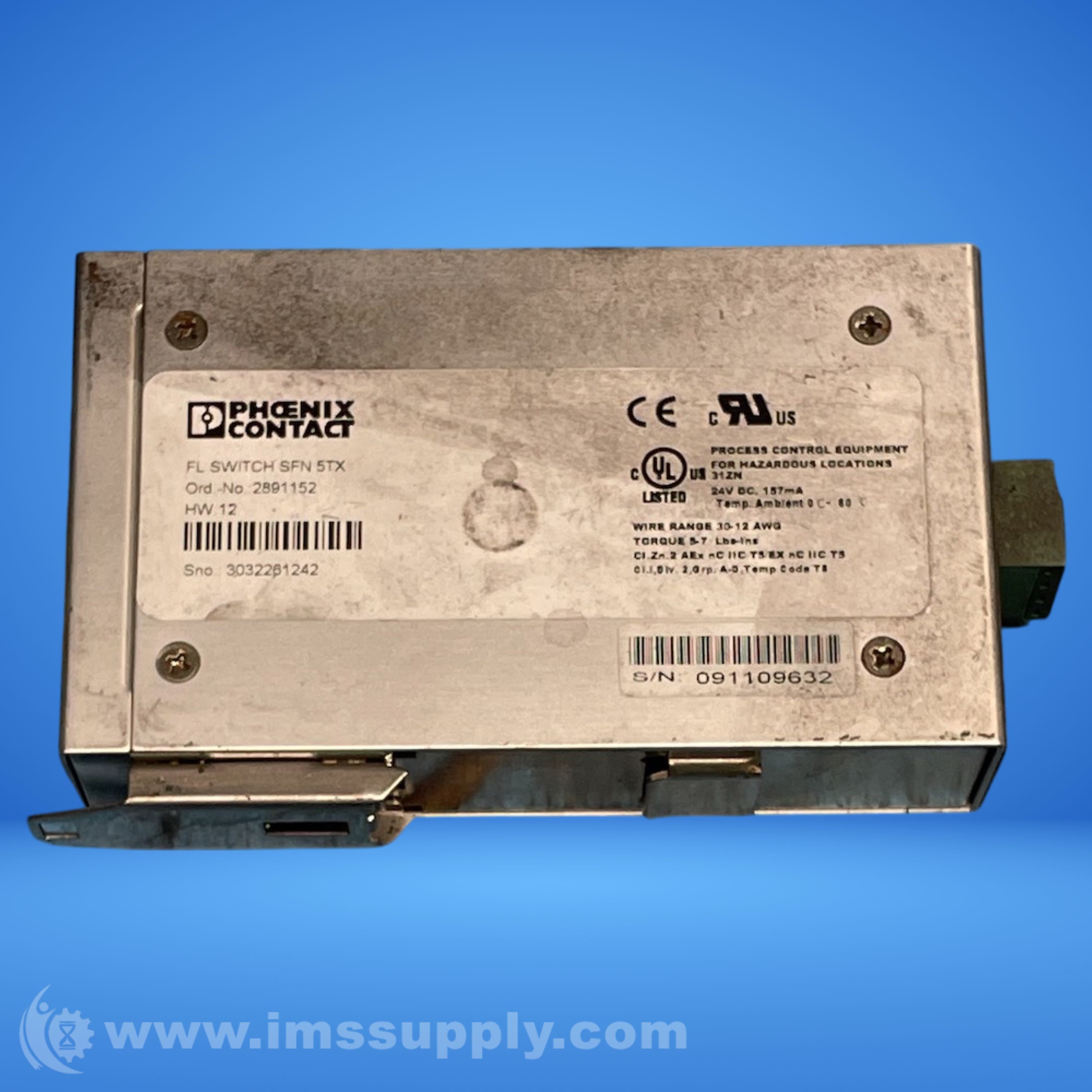

PHOENIX CONTACT FL SWITCH SFN 5TX ETHERNET SWITCH
Quick Overview
Manufactured By: PHOENIX CONTACT
Manufacturer Part Number: FL SWITCH SFN 5TX
IMS Product Code: 1761587
Packaging: Sold Individually
Description:
Phoenix Contact FL SWITCH SFN 5TX Ethernet Switch
5-Port Industrial Ethernet Switch with 10/100 Mbps RJ45 ports, 24 V DC supply, DIN rail mounting, IP20 protection
Specifications
- Dimensions: Width: 30 mm, Height: 120 mm, Depth: 70 mm
- Housing material: Aluminum
- Mounting type: DIN rail mounting
- Connection method: RJ45
- Transmission speed: 10/100 Mbps
- No. of channels: 5 (RJ45 ports)
- Product type: Switch
- Product family: Unmanaged Switch SFN
- Type: Block design
- MTTF: 192.9 Years
- Basic functions: Unmanaged switch / auto negotiation, complies with IEEE 802.3, store and forward switching mode
- Protection class: III (IEC 61140, EN 61140, VDE 0140-1)
- Supply voltage (DC): 24 V DC
- Supply voltage range: 9 V DC ... 32 V DC
- Power supply connection: Via COMBICON, max. conductor cross-section 2.5 mm˛
- Residual ripple: 3.6 VPP
- Max. current consumption: 205 mA (at 9 V DC)
- Typical current consumption: 90 mA (at US = 24 V DC)
- Degree of protection: IP20
- Ambient temperature (operation): 0 degrees C ... 60 degrees C
- Ambient temperature (storage/transport): -20 degrees C ... 70 degrees C
- Permissible humidity (operation): 5 % ... 95 % (non-condensing)
- Permissible humidity (storage/transport): 5 % ... 95 % (non-condensing)
- Vibration (operation): in acc. with IEC 60068-2-6: 5g, 150 Hz
- Air pressure (operation): 86 kPa ... 5 kPa (up to 1500 m above sea level)
- Air pressure (storage/transport): 66 kPa ... 108 kPa (up to 3500 m above sea level)
- Conformance: CE-compliant
- UL, USA / Canada: Class I, Div. 2, Groups A, B, C, D, T4
- Electromagnetic compatibility: Conformance with EMC Directive 2004/108/EC
