PHOENIX CONTACT HC-B-G-M32-PLRBK PLASTIC CABLE GLAND
Quick Overview
Manufactured By: PHOENIX CONTACT
Manufacturer Part Number: HC-B-G-M32-PLRBK
IMS Product Code: 1800731
Packaging: Sold Individually
Description:

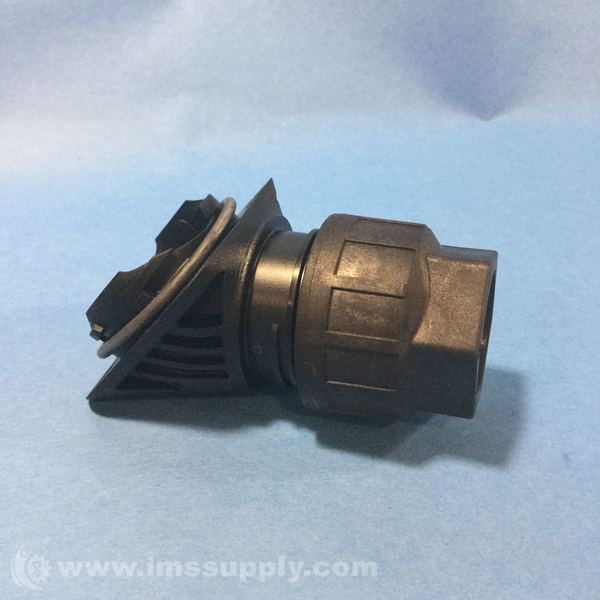

Phoenix Contact HC-B-G-M32-PLRBK Plastic Cable Gland
EVO plastic cable gland with bayonet locking, for housing series B, size M32, cable diameter: 11 mm ... 21 mm
Specifications
- Product Type: Cable screw gland
- No. of Conductors: 1
- Type of Screw Connection: M32
- Shielded: no
- Width: 48.8 mm
- Height: 76 mm
- Depth: 69.5 mm
- Wrench Size, Union Nut: 30 mm
- Color: black (RAL 9005)
- Material Pressure Screw: PA
- Flammability Rating According to UL 94: V0 / V2
- Seal Material O-ring: NBR
- Seal Material Cable Seal: NBR
- Material for Screw Connection: PA
- External Cable Diameter Cable 1: 11 mm ... 21 mm
- Degree of Protection: IP66
- Enclosure Rating (NEMA): 12 (UL 50e)
- Ambient Temperature (Operation): -40 degrees C ... 100 degrees C
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
