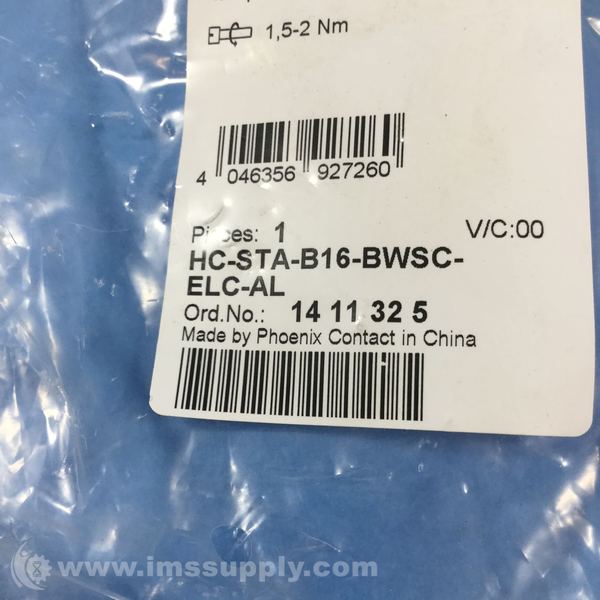

PHOENIX CONTACT HC-STA-B16-BWSC-ELC-AL HOUSING, HEAVYCON B16
Starting At: $23.00
Quick Overview
Manufactured By: PHOENIX CONTACT
Manufacturer Part Number: HC-STA-B16-BWSC-ELC-AL
IMS Product Code: 1807239
Packaging: Sold Individually
Description:

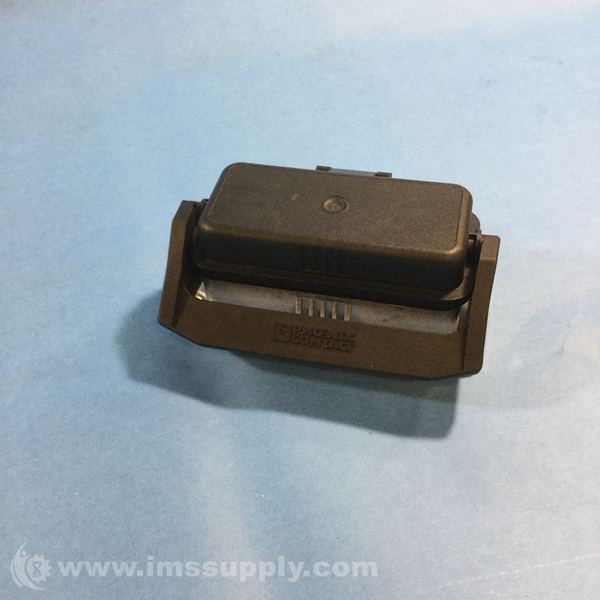

Phoenix Contact HC-STA-B16-BWSC-ELC-AL Housing, HEAVYCON B16 Panel Mounting Base
Specifications:
- Height: 30.5 mm
- Width: 53 mm
- Length: 114 mm
- Length of the assembly cutout: 86 mm
- Width of the assembly cutout: 35 mm
- Note: For contact inserts HC-B16, BB32, D40, DD72, HS6, M, K
- Size: B16
- Housing type: Panel mounting base
- Color: gray aluminum
- Locking type: with single locking latch
- Torque: 1.5 Nm ... 2 Nm (Mounting screw)
- Screw connection: none
- Protective cover: yes

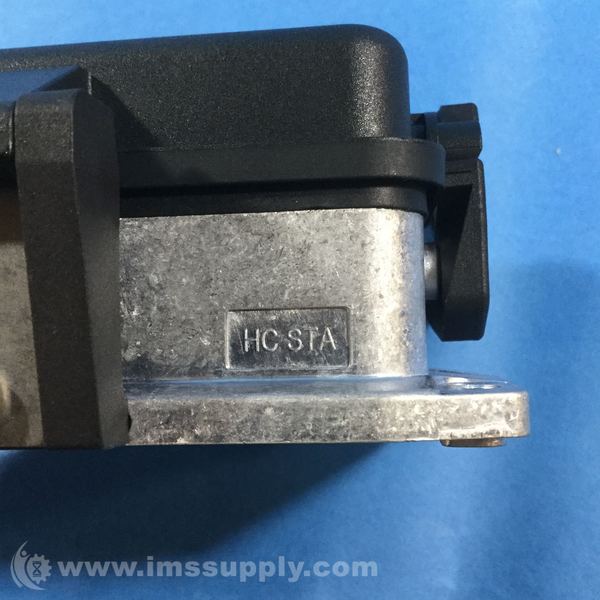

- Housing material: Die-cast aluminum, salt water resistant
- Housing surface material: uncoated
- Seal material: NBR, conductive
- Material lock: Polyamide
- Material, protective cover: PA
- Mfg Part Number: 1411325
