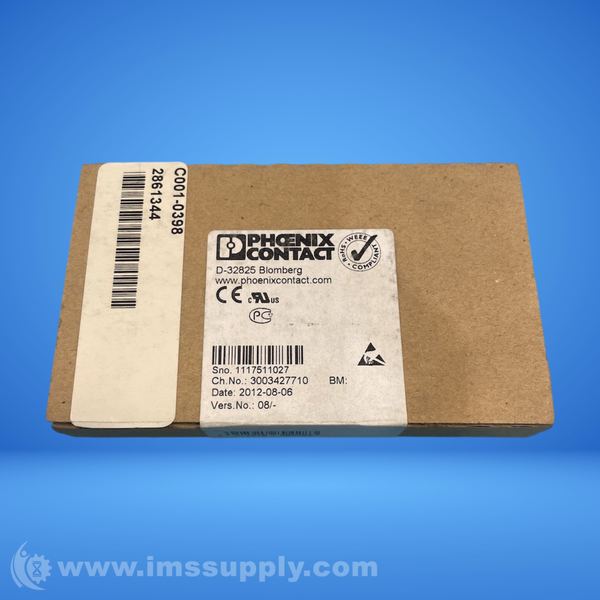

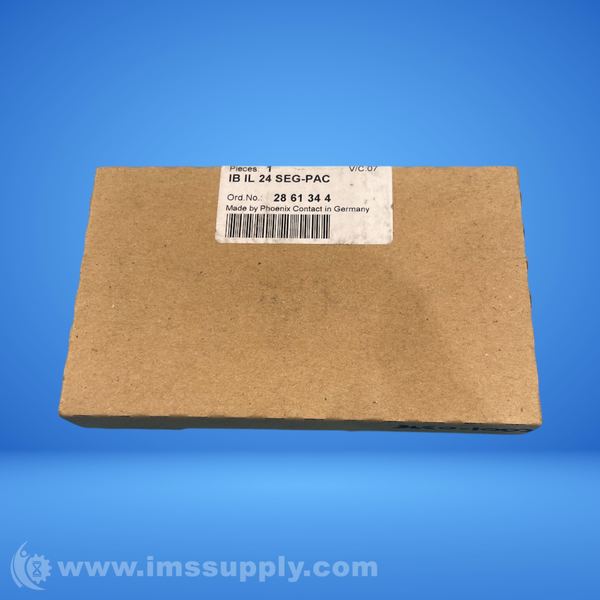

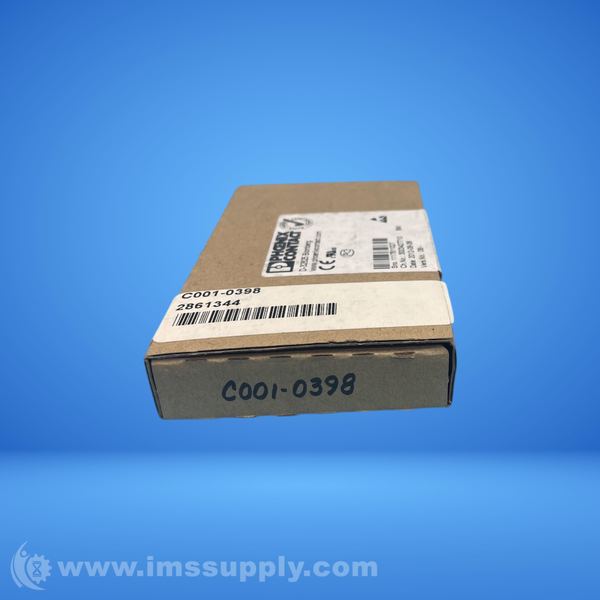

PHOENIX CONTACT IBIL24SEG-PAC INLINE SEGMENT TERMINAL BLOCK
Quick Overview
Manufactured By: PHOENIX CONTACT
Manufacturer Part Number: IBIL24SEG-PAC
IMS Product Code: 2131453
Packaging: Sold Individually
Description:
Phoenix Contact IBIL24SEG-PAC Inline Segment Terminal Block
Inline segment terminal block with accessories (connector and labeling field), 24 V DC, without fuse
Specifications
- width: 12.2 mm
- height: 119.8 mm
- depth: 71.5 mm
- number of interfaces: 2
- connection method: Inline data jumper
- transmission speed: 500 kbps / 2 Mbps
- product type: I/O component
- product family: Inline
- type: modular
- installation location: Control cabinet
- number of plugs: 1
- protection class: III (IEC 61140, EN 61140, VDE 0140-1)
- maximum power dissipation for nominal condition: 0 W
- I/O voltage: 24 V DC
- I/O voltage range: 19.2 V DC ... 30 V DC
- supply voltage: 24 V DC
- supply voltage range: 19.2 V DC ... 30 V DC (including all tolerances, including ripple)
- current draw: max. 8 A (nominal value)
- degree of protection: IP20
- ambient temperature (operation): -25 degrees C ... 55 degrees C
- ambient temperature (storage/transport): -25 degrees C ... 85 degrees C
- permissible humidity (operation): 75 % ... 85 % (in the range of -25°C ... +55°C, appropriate measures against increased humidity (> 85%) must be taken.)
- permissible humidity (storage/transport): 75 % ... 85 % (Slight temporary condensation may sometimes appear on the housing, e.g. when the terminal block is brought out of a vehicle into an enclosed room.)
- mounting type: DIN rail mounting
