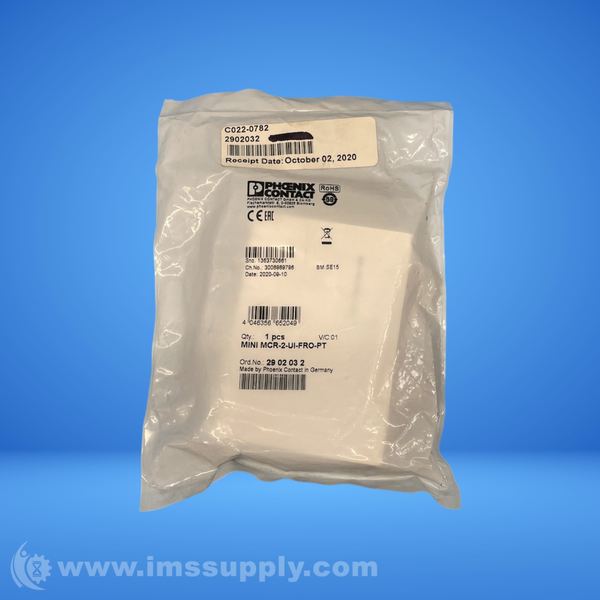

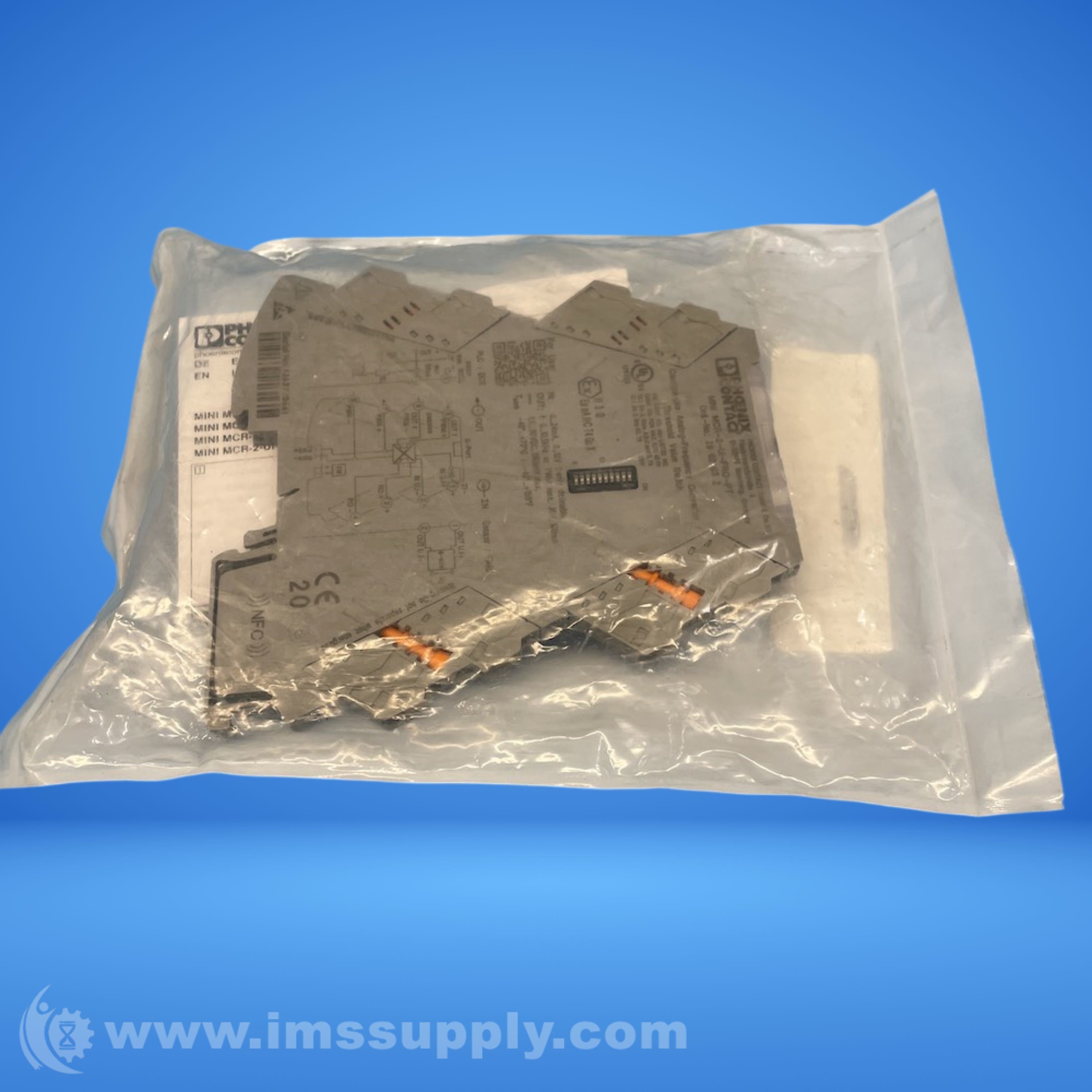

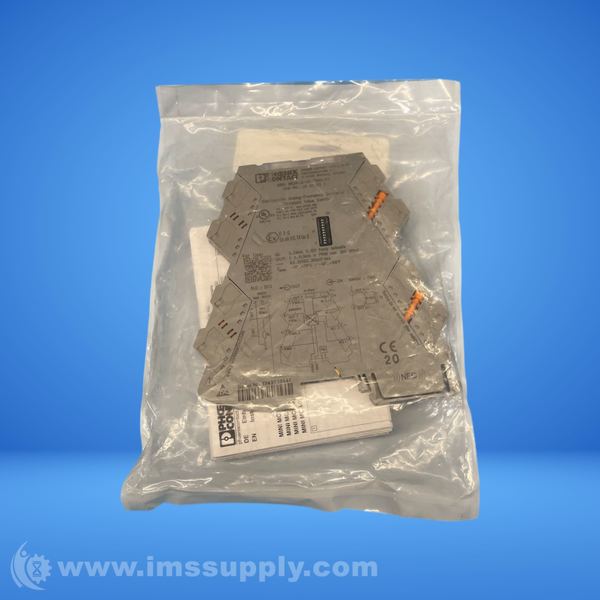

PHOENIX CONTACT MINI MCR-2-UI-FRO-PT ANALOG FREQUENCY TRANSDUCER
Quick Overview
Manufactured By: PHOENIX CONTACT
Manufacturer Part Number: MINI MCR-2-UI-FRO-PT
IMS Product Code: 2131933
Packaging: Sold Individually
Description:
Phoenix Contact MINI MCR-2-UI-FRO-PT Analog Frequency Transducer
Configurable analog frequency transducer with switching output, limit value functionality, and push-in connection technology for converting standard analog signals to frequency or PWM signals.
Specifications
- Product family: MINI Analog Pro
- No. of channels: 1
- Configuration: DIP switches, Software, App
- Electrical isolation between input and output: yes
- Nominal supply voltage: 24 V DC
- Supply voltage range: 9.6 V DC ... 30 V DC
- Number of inputs: 1
- Configurable/programmable: Yes
- Voltage input signal: 0 V ... 10 V, 2 V ... 10 V, 0 V ... 5 V, 1 V ... 5 V, 10 V ... 0 V, 10 V ... 2 V, 5 V ... 0 V, 5 V ... 1 V, 0 V ... 12 V (can be set via software)
- Current input signal: 0 mA ... 20 mA, 4 mA ... 20 mA, 0 mA ... 10 mA, 2 mA ... 10 mA, 20 mA ... 0 mA, 20 mA ... 4 mA, 10 mA ... 0 mA, 10 mA ... 2 mA, 0 mA ... 24 mA (can be set via software)
- Frequency output: 0 Hz ... 10 kHz, 0 Hz ... 5 kHz, 0 Hz ... 2.5 kHz, 0 Hz ... 1 kHz, 0 Hz ... 500 Hz, 0 Hz ... 250 Hz, 0 Hz ... 100 Hz, 0 Hz ... 50 Hz, 0 Hz ... 10.5 kHz (can be set via software)
- Output signal PWM: 15.6 kHz (10 bits, via DIP switch), 1.9 kHz (10 bits, via DIP switch), 3.9 kHz (12 bits, via DIP switch), 488 Hz (12 bits, via DIP switch), 977 Hz (14 bits, via DIP switch), 122 Hz (14 bits, via DIP switch), 244 Hz (16 bits, via DIP switch), 31 Hz (16 bits, via DIP switch), 31 Hz ... 15.6 kHz (can be set via software)
- Number of outputs: 1
- Contact switching type: 1 N/O contact
- Connection method: Push-in connection
- Degree of protection: IP20
- Ambient temperature (operation): -40 degrees C ... 70 degrees C
- Housing material: PBT
- Color: gray (RAL 7042)
- Width: 6.2 mm
- Height: 109.81 mm
- Depth: 119.2 mm
New:
A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable).
Availability: 2 In Stock
Ships today if ordered in the next 13 hours and 33 minutes.
