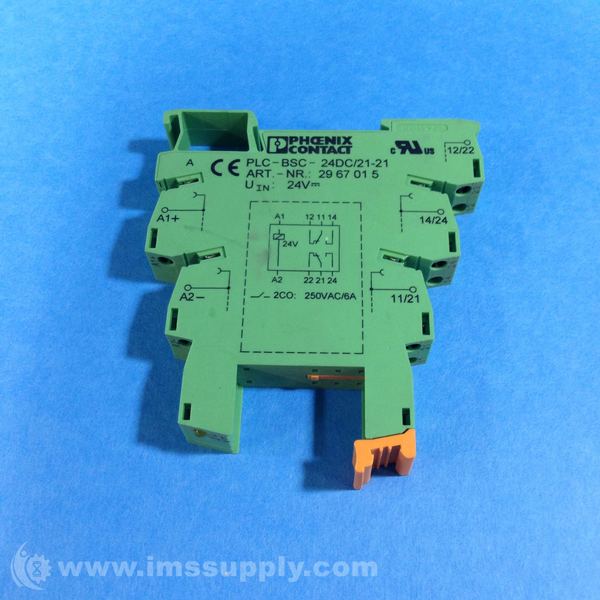

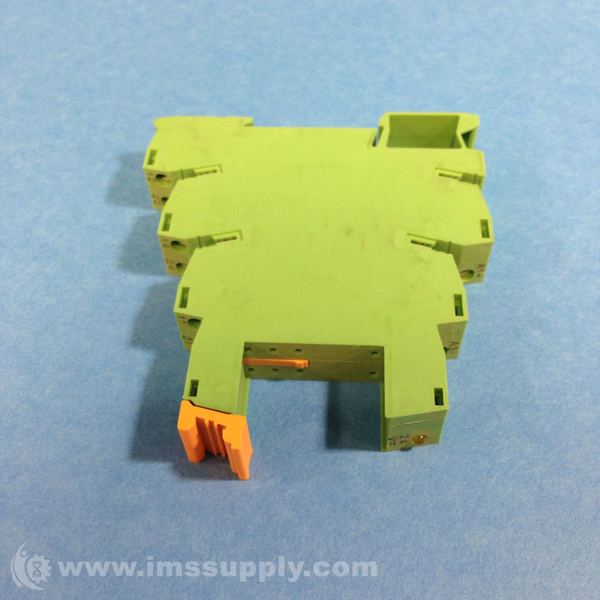

PHOENIX CONTACT PLC-BSC-24DC/21-21 RELAY BASE
Quick Overview
Manufactured By: PHOENIX CONTACT
Manufacturer Part Number: PLC-BSC-24DC/21-21
IMS Product Code: 993409
Packaging: Sold Individually
Description:
Phoenix Contact PLC-BSC-24DC/21-21 Relay Base
14 mm PLC basic terminal block with screw connection, without relay or solid-state relay, for mounting on DIN rail NS 35/7,5, 2 changeover contacts, input voltage 24 V DC
Specifications
- Product family: PLC-INTERFACE
- Application: Universal
- Operating mode: 100% operating factor
- Pollution degree: 3
- Nominal input voltage UN: 24 V DC
- Protective circuit: Freewheeling diode
- Connection method: Screw connection
- Stripping length: 8 mm
- Screw thread: M3
- Conductor cross-section rigid: 0.14 mm˛ ... 2.5 mm˛
- Conductor cross-section flexible: 0.14 mm˛ ... 2.5 mm˛
- Conductor cross-section AWG: 26 ... 14
- Tightening torque: 0.6 Nm ... 0.8 Nm
- Status display: LED
- Width: 14 mm
- Height: 80 mm
- Depth: 94 mm
- Color: gray (RAL 7042)
- Flammability rating according to UL 94 (Housing): V0 (Housing)
- Ambient temperature (operation): -40 degrees C ... 60 degrees C
- Ambient temperature (storage/transport): -40 degrees C ... 85 degrees C
- Mounting type: DIN rail mounting
- Assembly note: in rows with zero spacing
- Mounting position: any
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 11 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 1 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
Used (Special):
Part comes with Phoenix contact attachment P/N 2961215.
Availability: 1 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
Used (Special):
Phoenix Contact 2961192 attached.
Availability: 1 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
