PHOENIX CONTACT PSR-SCP-24UC/ESM4/2X1/1X2 SAFETY RELAY
Quick Overview
Manufactured By: PHOENIX CONTACT
Manufacturer Part Number: PSR-SCP-24UC/ESM4/2X1/1X2
IMS Product Code: 2123875
Packaging: Sold Individually
Description:

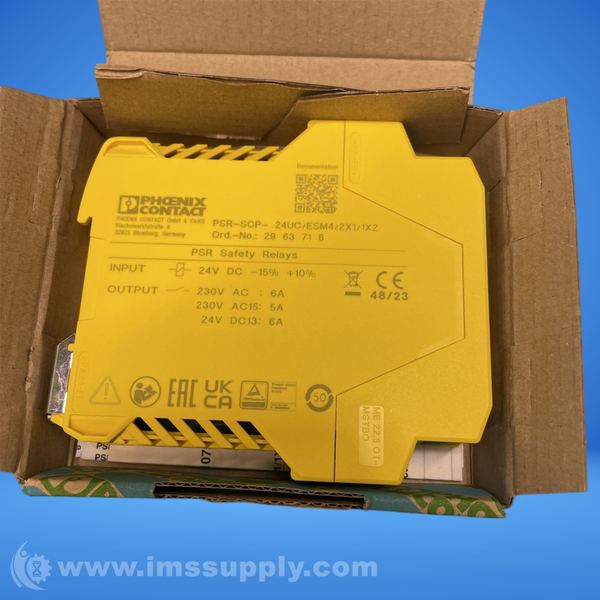

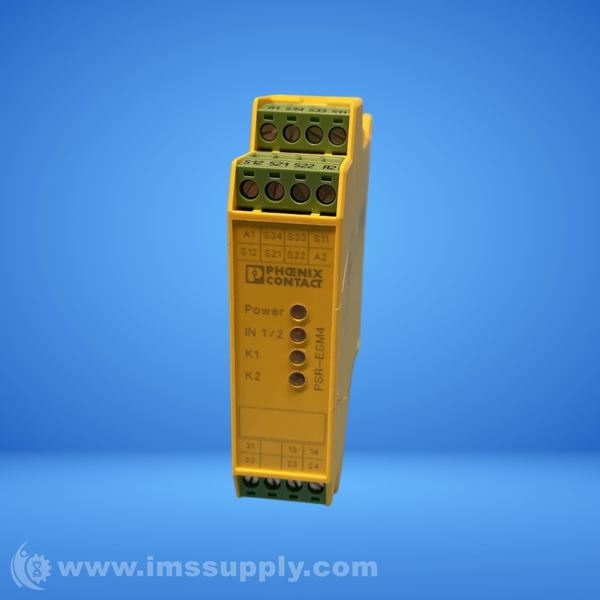

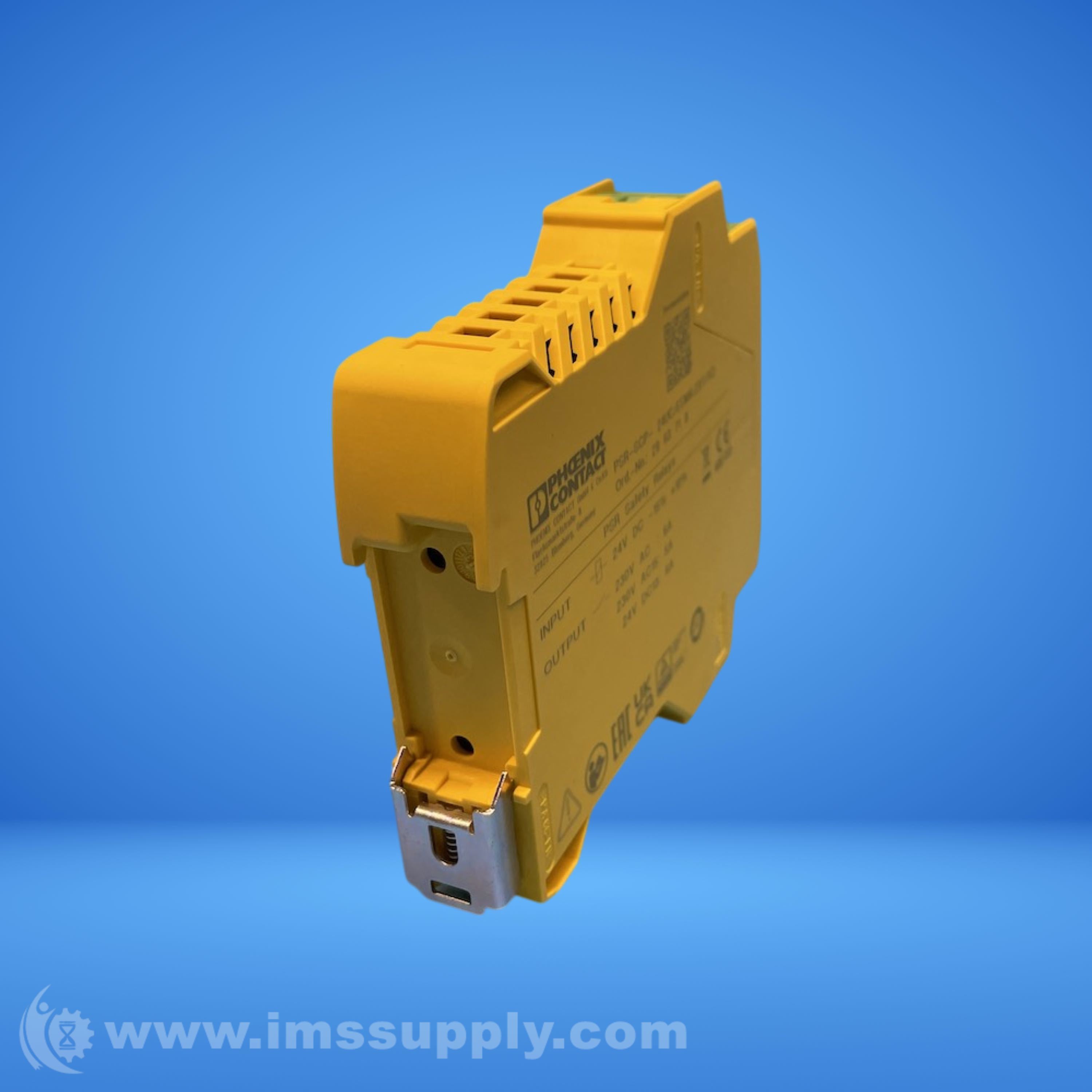

Phoenix Contact PSR-SCP-24UC/ESM4/2X1/1X2 Safety Relay
Safety relay for emergency stop and safety door monitoring up to SIL 3 or Cat. 4, PL e in accordance with EN ISO 13849, 2-channel operation, 2 enabling current paths, nominal input voltage: 24 V DC, plug-in screw terminal block
Specifications
- Product type: Safety relays
- Product family: PSRclassic
- Application: Emergency stop,Safety door
- Control: 2-channel
- Mechanical service life: approx. 10^7 cycles
- Relay type: Electromechanical relay with force-guided contacts in accordance with IEC/EN 61810-3
- Overvoltage category: III
- Degree of pollution: 2
- Nominal operating mode: 100% operating factor
- Rated insulation voltage: 250 V
- Rated control circuit supply voltage US: 24 V DC -15 % / +10 %
- Power consumption at US: typ. 1.68 W (DC)
- Rated control supply current IS: typ. 70 mA
- Input voltage range in reference to UN: 0.85 ... 1.1
- Typical input current at UN: 70 mA DC
- Filter time: 5 ms (at A1 in the event of voltage dips at Us)
- Typical response time: 100 ms (Monitored/manual start)
- Typical release time: 20 ms (on demand via the sensor circuit),45 ms (on demand via A1)
- Concurrence: 8
- Recovery time: 1 s (following demand of the safety function)
- Protective circuit: Surge protection; Suppressor diode
- Max. permissible overall conductor resistance: approx. 50 O (Input and start circuits at US)
- Operating voltage display: Green LED
- Status display: LED (green)
- Contact switching type: 2 enabling current paths,1 signaling current path
- Contact material: AgSnO2, + 0.2 µm Au
- Maximum switching voltage: 250 V AC/DC
- Minimum switching voltage: 10 V AC/DC
- Limiting continuous current: 6 A (N/O contact)
- Maximum inrush current: 6 A
- Inrush current, minimum: 10 mA
- Sq. Total current: 72 A² (Enabling current paths),36 A² (Signaling current path 31/32)
- Switching capacity min.: 100 mW
- Output fuse: 10 A gL/gG (Enabling current paths),4 A gL/gG (Low-demand enabling current paths),6 A gL/gG (Signaling current path)
- Connection technology: pluggable,yes
- Connection method: Screw connection
- Conductor cross-section rigid: 0.2 mm² ... 2.5 mm²
- Conductor cross-section flexible: 0.2 mm² ... 2.5 mm²
- Conductor cross-section AWG: 24 ... 12
- Stripping length: 7 mm
- Screw thread: M3
- Width: 22.5 mm
- Height: 99 mm
- Depth: 114.5 mm
- Color (Housing): yellow (RAL 1018)
- Housing material: PA
- Stop category: 0
- Category: 4
- Performance level (PL): e (5 A DC13; 5 A AC15; 8760 switching cycles/year)
- Safety Integrity Level (SIL): 3
- Degree of protection: IP20
- Min. degree of protection of inst. location: IP54
- Ambient temperature (operation): -20 °C ... 55 °C (observe derating)
- Ambient temperature (storage/transport): -40 °C ... 70 °C
- Maximum altitude: = 2000 m (Above sea level)
- Max. permissible humidity (storage/transport): 75 % (on average, 85% infrequently, non-condensing)
- Max. permissible relative humidity (operation): 75 % (on average, 85% infrequently, non-condensing)
- Shock: 15g
- Vibration (operation): 10 Hz ... 150 Hz, 2g
- Mounting type: DIN rail mounting
- Assembly note: See derating curve
- Mounting position: vertical or horizontal
