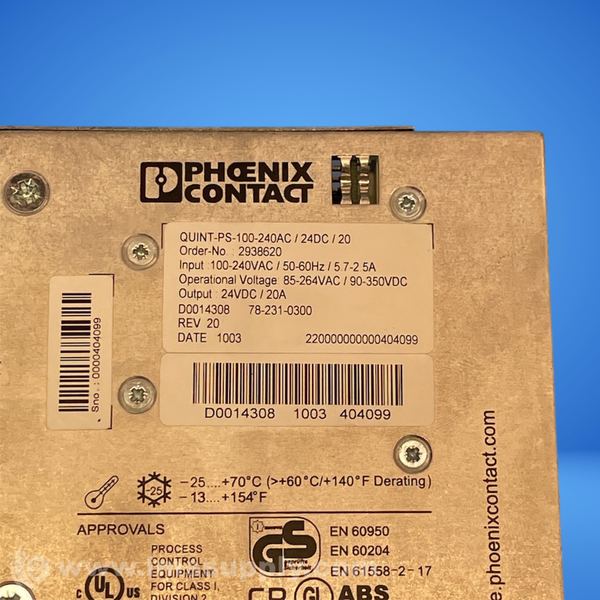

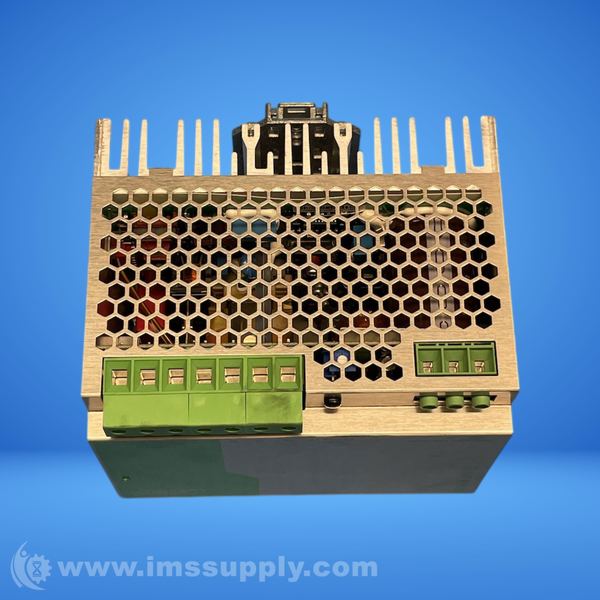

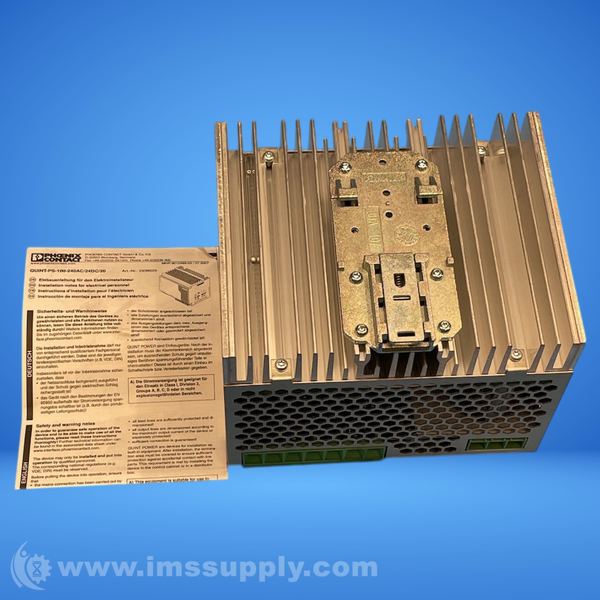

PHOENIX CONTACT QUINT-PS-100-240AC/24DC/20 24V DC POWER SUPPLY
Quick Overview
Manufactured By: PHOENIX CONTACT
Manufacturer Part Number: QUINT-PS-100-240AC/24DC/20
IMS Product Code: 2147457
Packaging: Sold Individually
Description:
Phoenix Contact QUINT-PS-100-240AC/24DC/20 24V DC Power Supply
DIN rail power supply unit with 24V DC output at 20A, primary-switched, 1-phase. Input voltage range 85-264V AC or 90-350V DC. Screw connection.
Specifications
- Nominal Input Voltage Range: 100 V AC ... 240 V AC
- Input Voltage Range: 85 V AC ... 264 V AC / 90 V DC ... 350 V DC
- AC Frequency Range: 45 Hz ... 65 Hz
- Nominal Output Voltage: 24 V DC ±1 %
- Nominal Output Current: 20 A
- POWER BOOST (IBoost): 26 A
- Efficiency: > 92 %
- Protection Class: I (with PE connection)
- Degree of Protection: IP20
- Ambient Temperature (Operation): -25 degrees C ... 70 degrees C (> 60 degrees C Derating: 2.5 %/K)
- Width: 157 mm
- Height: 130 mm
- Depth: 125 mm
- Connection Method: Screw connection
