PHOENIX CONTACT SFNB 5TX ETHERNET SWITCH
Quick Overview
Manufactured By: PHOENIX CONTACT
Manufacturer Part Number: SFNB 5TX
IMS Product Code: 2130099
Packaging: Sold Individually
Description:
Phoenix Contact SFNB 5TX Ethernet Switch
5-port unmanaged industrial Ethernet switch with 5 RJ45 ports supporting 10/100 Mbps transmission speeds. Designed for DIN rail mounting with IP20 protection. Operates within -10°C to 60°C temperature range and supports input voltage between 12V DC and 48V DC.
Specifications
- Dimensions Width: 28 mm
- Dimensions Height: 110 mm
- Dimensions Depth: 70 mm
- Housing material: Aluminum
- Mounting type: DIN rail mounting

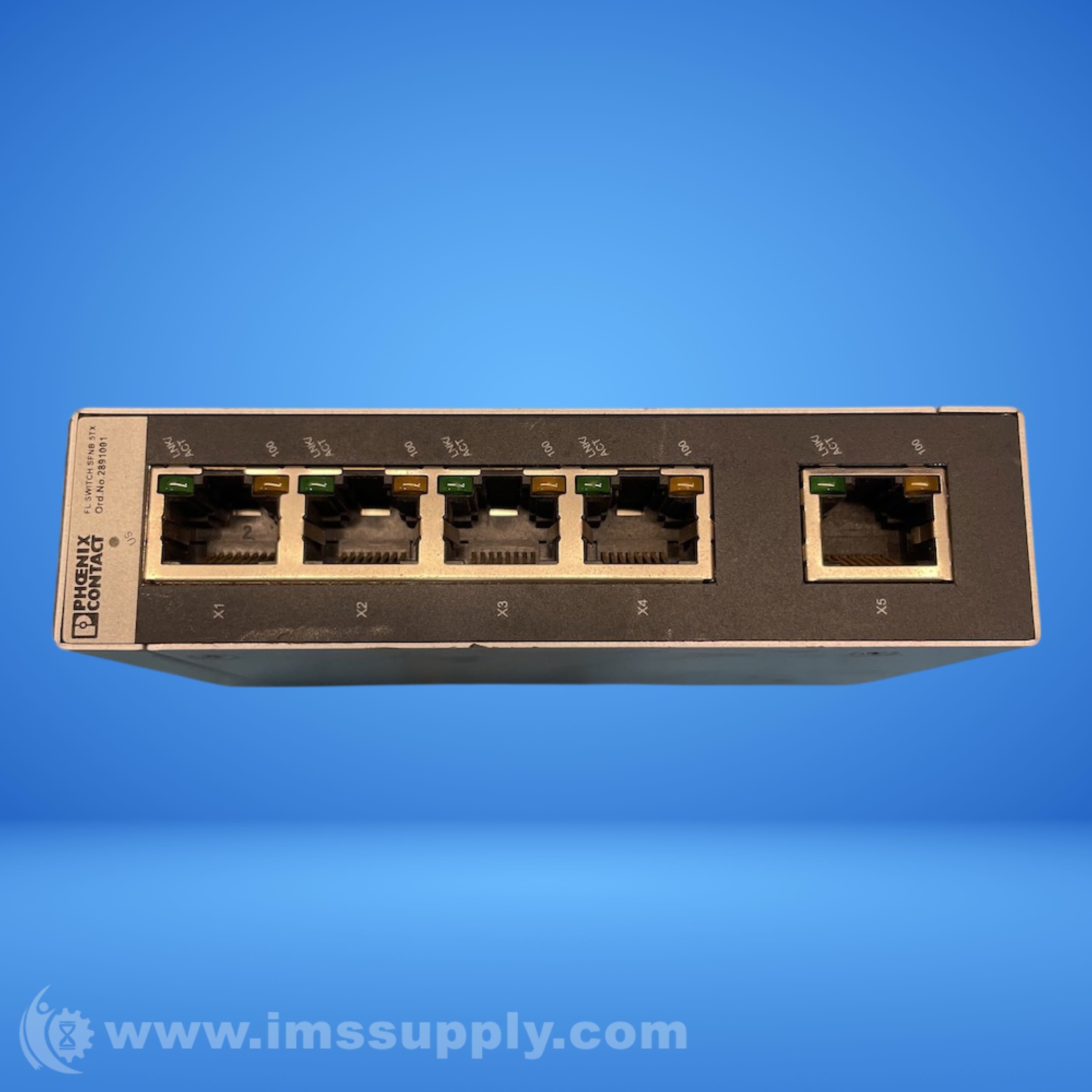

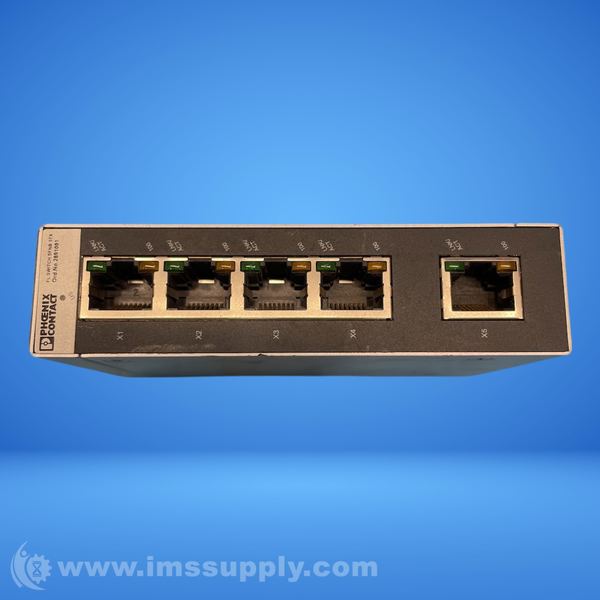

- Connection method: RJ45
- Transmission speed: 10/100 Mbps
- Transmission physics: Ethernet in RJ45 twisted pair
- Transmission length: 100 m (per segment)
- No. of channels: 5 (RJ45 ports)
- Supply voltage (DC): 24 V DC
- Supply voltage range: 12 V DC ... 48 V DC

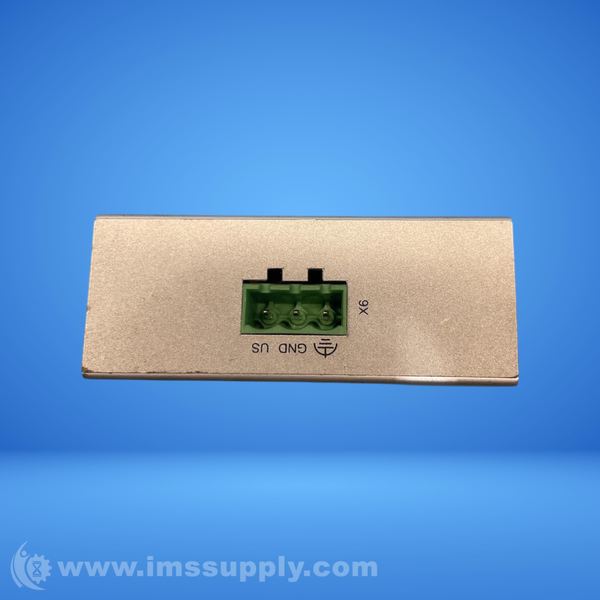

- Power supply connection: Via COMBICON, max. conductor cross-section 2.5 mm²
- Max. current consumption: 345 mA (at 12 V DC)
- Typical current consumption: 185 mA (at US = 24 V DC)
- Degree of protection: IP20
- Ambient temperature (operation): -10 °C ... 60 °C
- Ambient temperature (storage/transport): -20 °C ... 85 °C
- Permissible humidity (operation): 5 % ... 95 % (non-condensing)
- Permissible humidity (storage/transport): 5 % ... 95 % (non-condensing)
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 2 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
