PHOENIX CONTACT ST1.5-QUATTRO-PE GROUND TERMINAL BLOCK
Quick Overview
Manufactured By: PHOENIX CONTACT
Manufacturer Part Number: ST1.5-QUATTRO-PE
IMS Product Code: 2124483
Packaging: Sold Individually
Description:

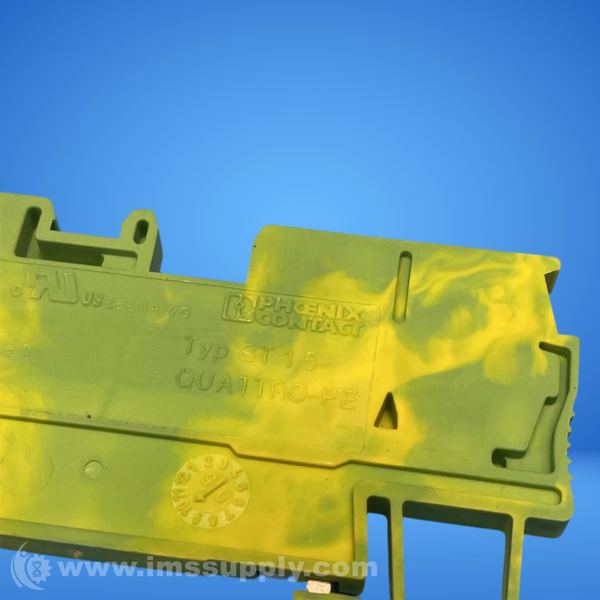

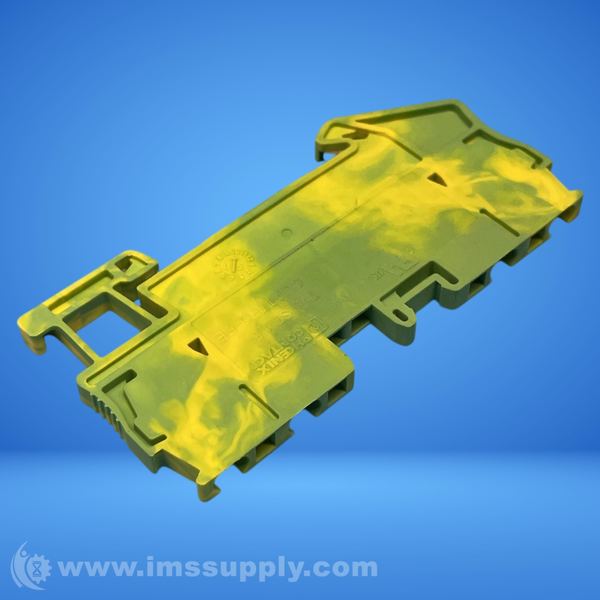

Phoenix Contact ST1.5-QUATTRO-PE Ground Terminal Block
Protective conductor terminal block with 4 connections, Spring-cage connection method, 1.5 mm² nominal cross section, green-yellow color
Specifications
- Number of connections: 4
- Connection method: Spring-cage connection
- Nominal cross section: 1.5 mm²
- Conductor cross section: 0.08 mm² - 1.5 mm²
- Mounting type: NS 35/7.5, NS 35/15
- Color: green-yellow
- Width: 4.2 mm
- Height: 72 mm
- Depth on NS 35/7.5: 36.5 mm
- Depth on NS 35/15: 44 mm
- Insulating material: PA
- Flammability rating: V0
- Ambient temperature (operation): -60 °C - 110 °C
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 1 In Stock
Ships today if ordered in the next 14 hours and 11 minutes.
