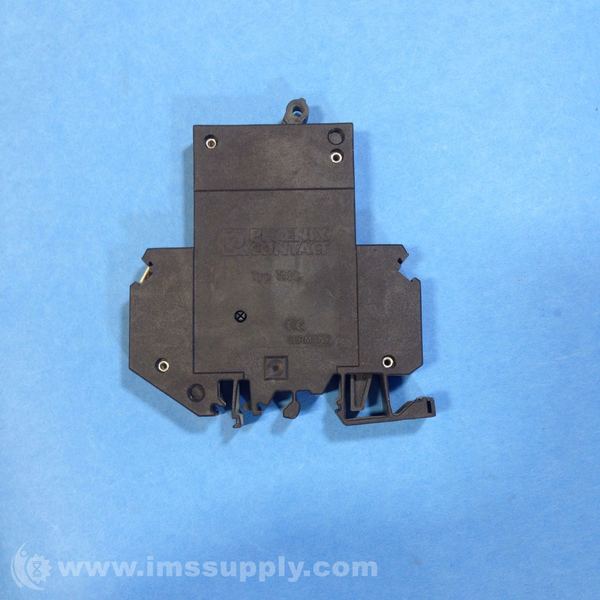

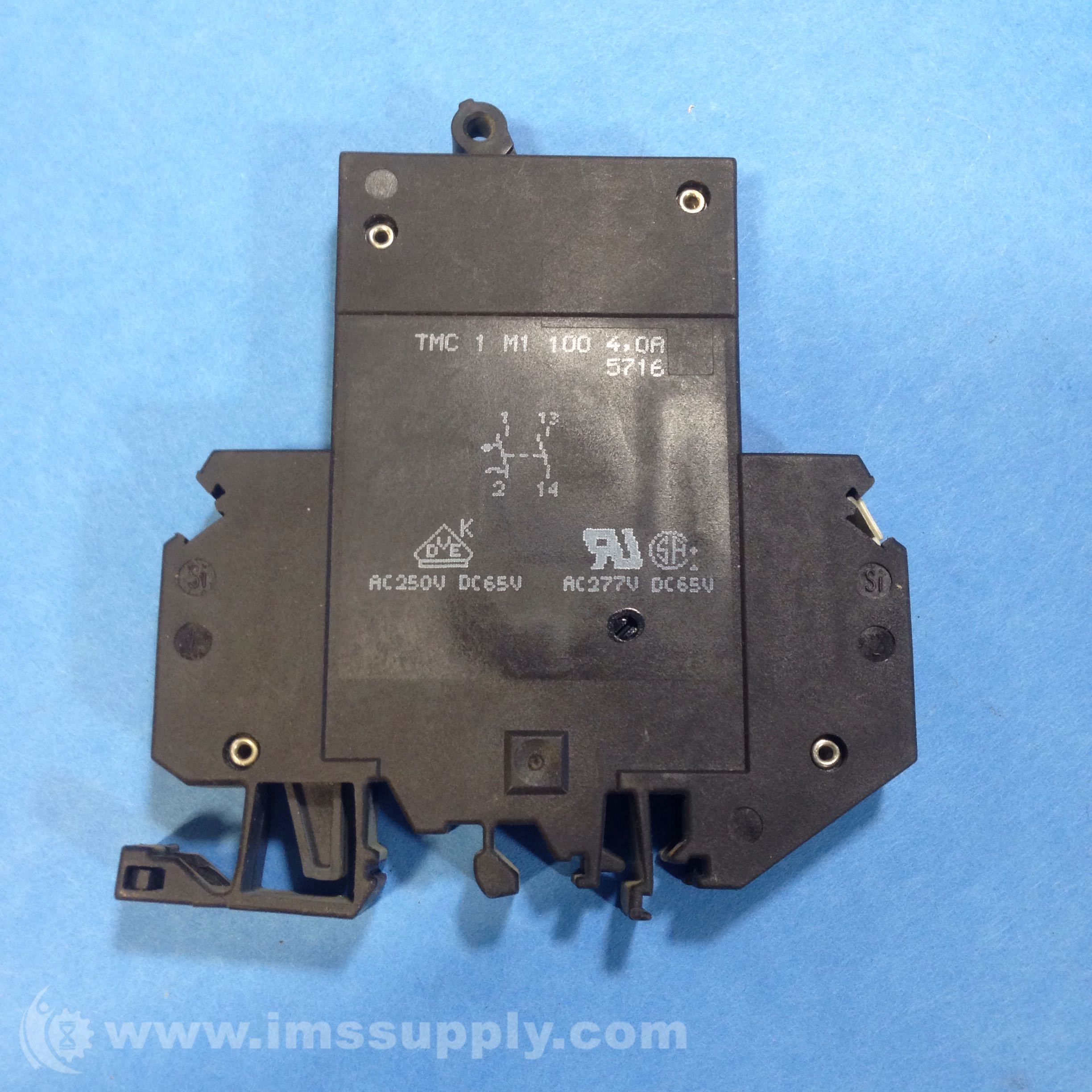

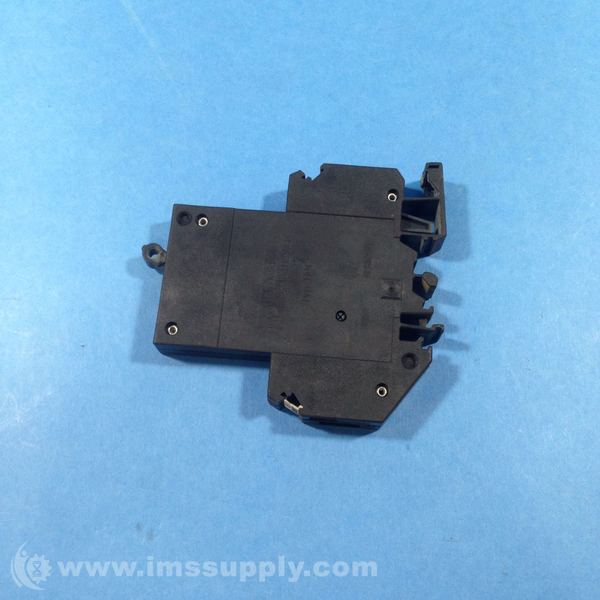

PHOENIX CONTACT TMC-1-M1-100-4.0A THERMAL-MAGNETIC CIRCUIT BREAKER
Quick Overview
Manufactured By: PHOENIX CONTACT
Manufacturer Part Number: TMC-1-M1-100-4.0A
IMS Product Code: 1738714
Packaging: Sold Individually
Description:
Phoenix Contact TMC-1-M1-100-4.0A Thermal-Magnetic Circuit Breaker
Thermal-magnetic circuit breaker, 1-pos., normal blow, 1 N/O contact, with universal foot for mounting on NS 32 or NS 35
Specifications
- Product type: Thermomagnetic device circuit breakers
- Product family: TMC
- Type: DIN rail module, one-piece
- Number of positions: 1
- Number of connections: 4
- Number of rows: 2
- No. of channels: 1
- Rated voltage: 250 V AC / 65 V DC
- Rated current IN: 4 A
- Rated surge voltage: 2.5 kV
- Tripping method: TM (thermal-magnetic)
- Fuse type: Automatic device
- Fuse: M1 (normal blow)
- Contact switching type: 1 N/O contact
- Operating voltage: 240 V AC / 65 V DC
- Operating current: 4 A AC (Low-induction)
- Connection method: Screw connection
- Screw thread: M3
- Tightening torque: 0.6 ... 0.8 Nm
- Conductor cross-section rigid: 0.2 mm² ... 6 mm²
- Conductor cross-section flexible: 0.2 mm² ... 4 mm²
- Conductor cross-section AWG: 24 ... 10
- Width: 12.5 mm
- Height: 82.5 mm
- Depth: 96 mm
- Color: black (RAL 9005)
- Insulating material: PA66
- Degree of protection: IP30 (Actuation area) / IP20 (Connection area)
- Ambient temperature (operation): -30 °C ... 60 °C
- Mounting type: DIN rail: 35 mm
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 1 In Stock
