PHOENIX CONTACT TRIO-PS/3AC/24DC/5 POWER SUPPLY
Quick Overview
Manufactured By: PHOENIX CONTACT
Manufacturer Part Number: TRIO-PS/3AC/24DC/5
IMS Product Code: 2163610
Packaging: Sold Individually
Description:

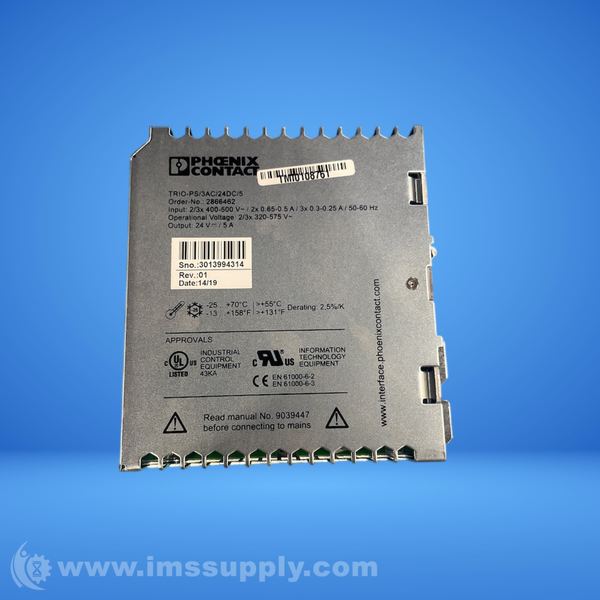

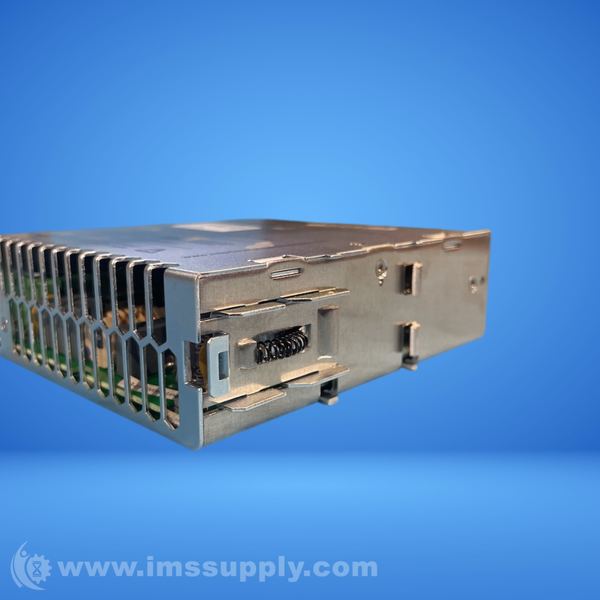

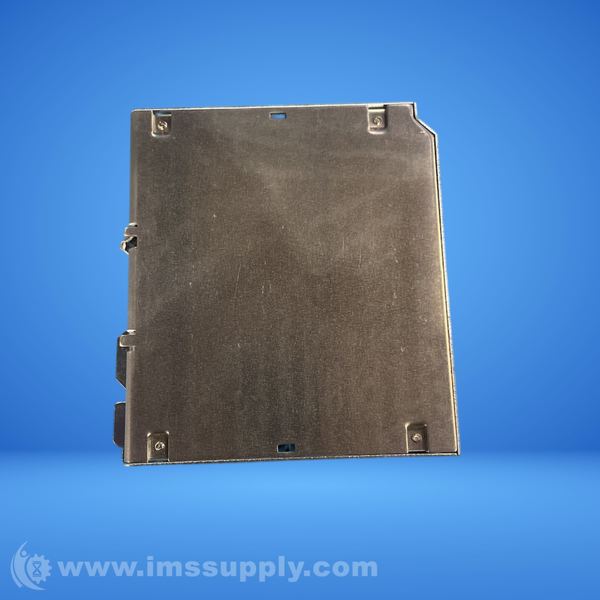

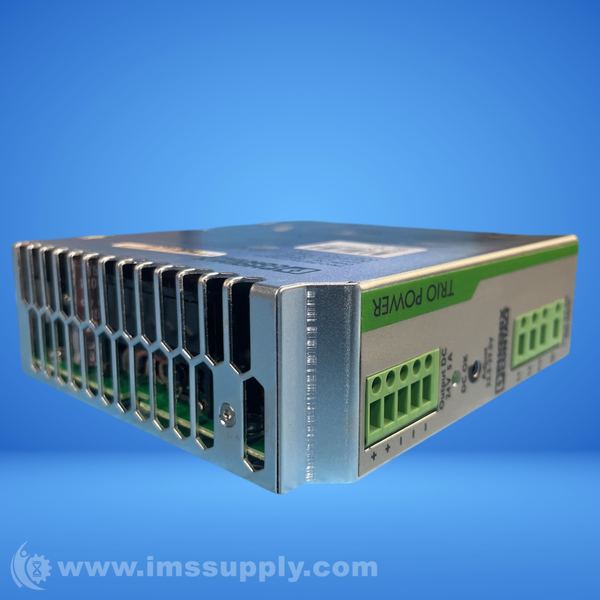

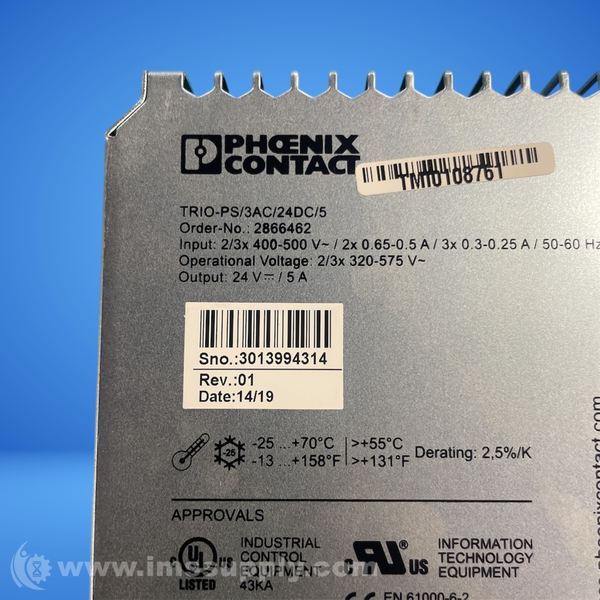

Phoenix Contact TRIO-PS/3AC/24DC/5 Power Supply
Primary-switched TRIO POWER power supply for DIN rail mounting, input: 3-phase, output: 24 V DC/5 A
Specifications
- Nominal input voltage range: 2x / 3x 400 V AC ... 500 V AC
- Input voltage range: 3x 320 V AC ... 575 V AC (for 3-phase operation)
- Voltage type of supply voltage: AC
- AC frequency range: 45 Hz ... 65 Hz
- Nominal output voltage: 24 V DC �1 %
- Nominal output current (IN): 5 A (UOUT = 24 V DC)
- Output power: 120 W
- Connection method: Screw connection
- Housing material: Metal
- Type of housing: Steel sheet, zinc-plated
- Degree of protection: IP20
- Ambient temperature (operation): -25 �C ... 70 �C (> 55� C derating : 2.5%/K)
- Width: 40 mm
- Height: 130 mm
- Depth: 115 mm

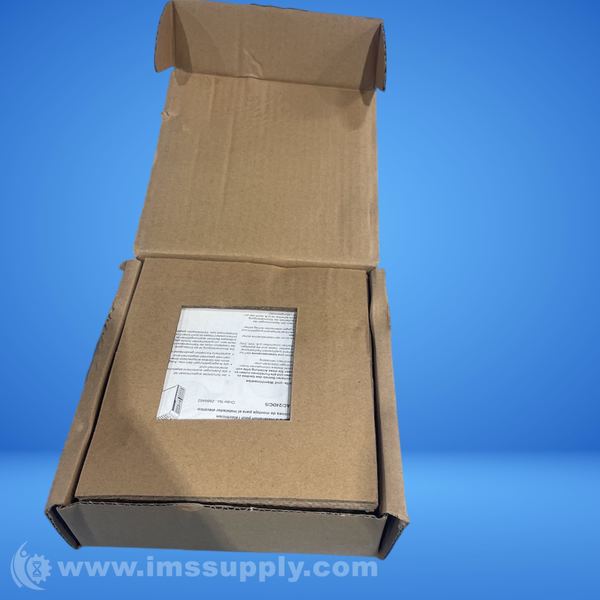

New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships today if ordered in the next 2 hours and 15 minutes.
