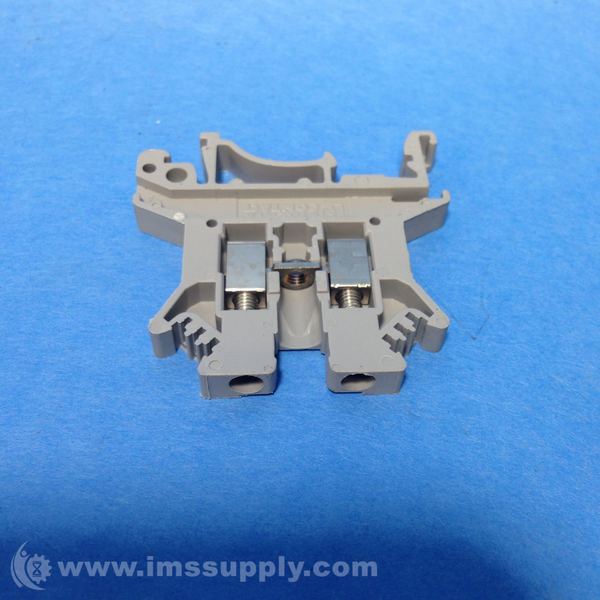

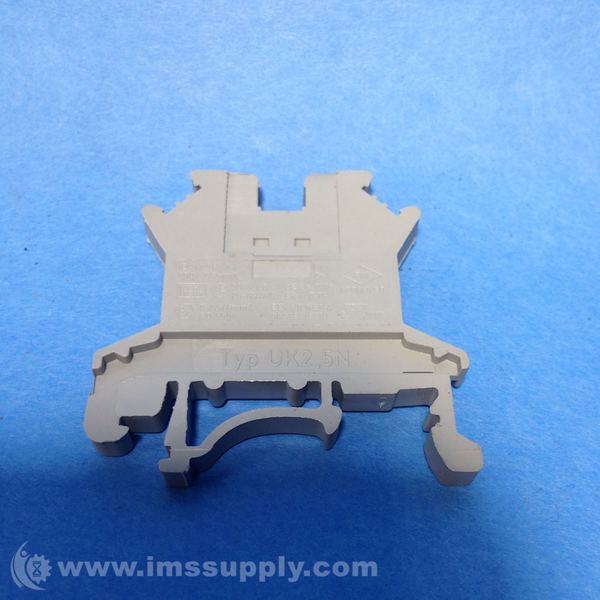

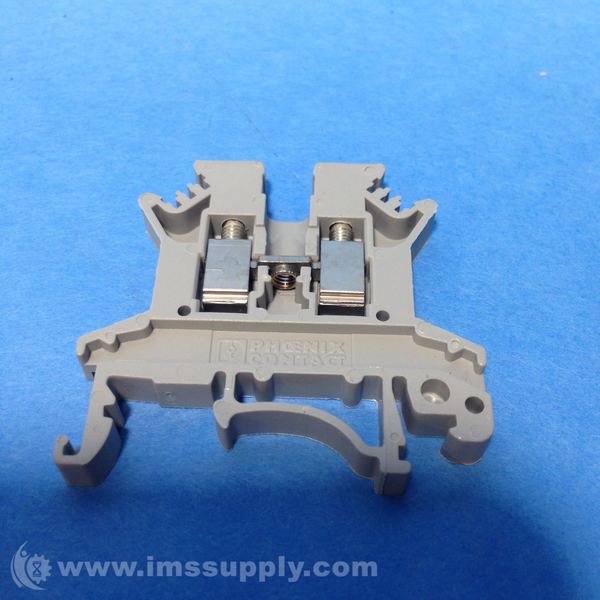

PHOENIX CONTACT UK-2.5N FEED-THROUGH TERMINAL BLOCK
Quick Overview
Manufactured By: PHOENIX CONTACT
Manufacturer Part Number: UK-2.5N
IMS Product Code: 993516
Packaging: Sold Individually
Description:
Phoenix Contact UK-2.5N Feed-Through Terminal Block
Feed-through terminal block with screw connection, 800V, 24A, 2 connections, gray.
Specifications
- Number of connections: 2
- Number of rows: 1
- Potentials: 1
- Overvoltage category: III
- Degree of pollution: 3
- Rated surge voltage: 8 kV
- Maximum power dissipation for nominal condition: 0.77 W
- Nominal cross section: 2.5 mm²
- Screw thread: M3
- Tightening torque: 0.6 ... 0.8 Nm
- Stripping length: 7 mm
- Internal cylindrical gage: A3
- Connection in acc. with standard: IEC 60947-7-1
- Conductor cross-section rigid: 0.2 mm² ... 4 mm²
- Cross section AWG: 24 ... 12 (converted acc. to IEC)
- Conductor cross-section flexible: 0.2 mm² ... 2.5 mm²
- Conductor cross-section, flexible [AWG]: 24 ... 14 (converted acc. to IEC)
- Conductor cross-section flexible (ferrule without plastic sleeve): 0.25 mm² ... 2.5 mm²
- Flexible conductor cross-section (ferrule with plastic sleeve): 0.25 mm² ... 1.5 mm²
- Cross-section with insertion bridge, rigid: 2.5 mm²
- Cross-section with insertion bridge, flexible: 2.5 mm²
- 2 conductors with same cross section, rigid: 0.2 mm² ... 1 mm²
- 2 conductors with same cross section, flexible: 0.2 mm² ... 1 mm²
- 2 conductors with same cross section, flexible, with ferrule without plastic sleeve: 0.25 mm² ... 1 mm²
- 2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve: 0.5 mm² ... 1.5 mm²
- Nominal current: 24 A
- Maximum load current: 24 A (with a 2.5 mm² conductor cross-section)
- Nominal voltage: 800 V
- Width: 5.2 mm
- End cover width: 1.5 mm
- Height: 42.5 mm
- Depth on NS 32: 47 mm
- Depth on NS 35/7,5: 42 mm
- Depth on NS 35/15: 49.5 mm
- Color: gray (RAL 7042)
- Flammability rating according to UL 94: V2
- Insulating material group: I
- Insulating material: PA
- Static insulating material application in cold: -40 °C
- Relative insulation material temperature index (Elec., UL 746 B): 125 °C
- Ambient temperature (operation): -40 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.)
- Ambient temperature (storage/transport): -25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C)
- Ambient temperature (assembly): -5 °C ... 70 °C
- Ambient temperature (actuation): -5 °C ... 70 °C
- Permissible humidity (operation): 20 % ... 90 %
- Permissible humidity (storage/transport): 30 % ... 70 %
- Mounting type: NS 35/7,5, NS 35/15, NS 32
