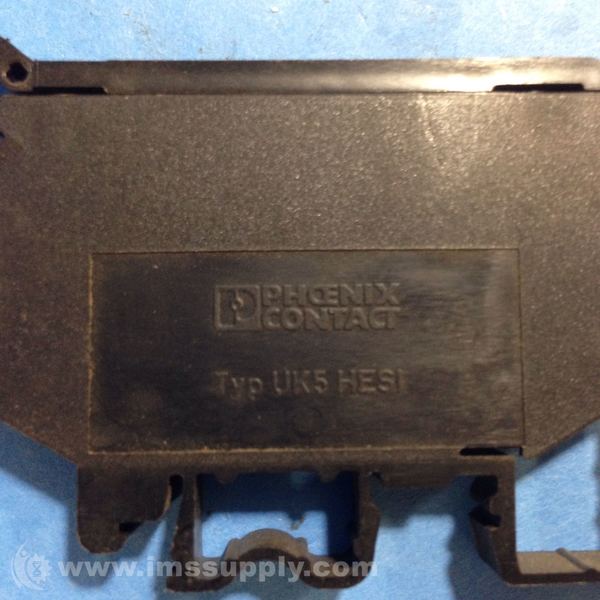

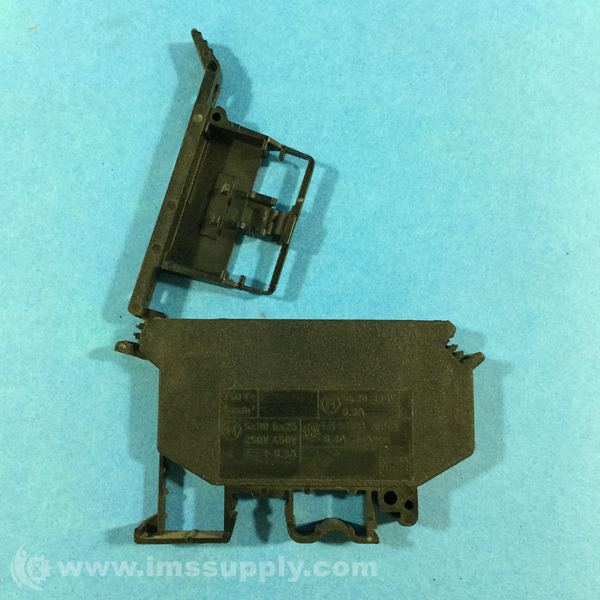

PHOENIX CONTACT UK-5-HESI FUSE MODULAR TERMINAL BLOCK
Quick Overview
Manufactured By: PHOENIX CONTACT
Manufacturer Part Number: UK-5-HESI
IMS Product Code: 993524
Packaging: Sold Individually
Description:
Phoenix Contact UK-5-HESI Fuse Modular Terminal Block
Fuse modular terminal block for cartridge fuse insert, Screw Connection 1 Level 8.2 mm with 2 Connections. Not Grounded, Fused Black. 800 Volt, 6.3 Amp max rating.
Specifications
- Number of positions: 1
- Number of connections: 2
- Number of rows: 1
- Potentials: 1
- Overvoltage category: III
- Degree of pollution: 3
- Fuse type: Glass / ceramics / ...
- Rated surge voltage: 8 kV
- Maximum power dissipation for nominal condition: 1.02 W
- Fuse: G / 5 x 20 / 5 x 25 / 5 x 30
- Nominal cross section: 4 mm²
- Connection method: Screw connection
- Screw thread: M3
- Tightening torque: 0.6 ... 0.8 Nm
- Stripping length: 8 mm
- Internal cylindrical gage: A4
- Conductor cross-section rigid: 0.2 mm² ... 4 mm²
- Cross section AWG: 24 ... 12 (converted acc. to IEC)
- Conductor cross-section flexible: 0.2 mm² ... 4 mm²
- Conductor cross-section, flexible [AWG]: 24 ... 12 (converted acc. to IEC)
- Conductor cross-section flexible (ferrule without plastic sleeve): 0.25 mm² ... 4 mm²
- Flexible conductor cross-section (ferrule with plastic sleeve): 0.25 mm² ... 4 mm²
- Cross-section with insertion bridge, rigid: 4 mm²
- Cross-section with insertion bridge, flexible: 4 mm²
- 2 conductors with same cross section, solid: 0.2 mm² ... 1.5 mm²
- 2 conductors with same cross section, flexible: 0.2 mm² ... 1.5 mm²
- 2 conductors with same cross section, flexible, with ferrule without plastic sleeve: 0.25 mm² ... 1.5 mm²
- 2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve: 0.5 mm² ... 1.5 mm²
- Nominal current: 6.3 A
- Maximum load current: 6.3 A (the current is determined by the fuse used)
- Nominal voltage: 800 V (As a fuse terminal block)
- Width: 8.2 mm
- Height: 72.5 mm
- Depth on NS 32: 61.5 mm
- Depth on NS 35/7,5: 56.5 mm
- Depth on NS 35/15: 64 mm
- Color: black (RAL 9005)
- Flammability rating according to UL 94: V0
- Insulating material group: I
- Insulating material: PA
- Static insulating material application in cold: -60 °C
- Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)): 125 °C
- Relative insulation material temperature index (Elec., UL 746 B): 130 °C
- Fire protection for rail vehicles (DIN EN 45545-2) R22: HL 1 - HL 3
- Fire protection for rail vehicles (DIN EN 45545-2) R23: HL 1 - HL 3
- Fire protection for rail vehicles (DIN EN 45545-2) R24: HL 1 - HL 3
- Fire protection for rail vehicles (DIN EN 45545-2) R26: HL 1 - HL 3
- Calorimetric heat release NFPA 130 (ASTM E 1354): 27,5 MJ/kg
- Surface flammability NFPA 130 (ASTM E 162): passed
- Specific optical density of smoke NFPA 130 (ASTM E 662): passed
- Smoke gas toxicity NFPA 130 (SMP 800C): passed
- Open side panel: No
- Ambient temperature (operation): -60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.)
- Ambient temperature (storage/transport): -25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C)
- Ambient temperature (assembly): -5 °C ... 70 °C
- Ambient temperature (actuation): -5 °C ... 70 °C
- Permissible humidity (operation): 20 % ... 90 %
- Permissible humidity (storage/transport): 30 % ... 70 %
- Mounting type: NS 35/7,5, NS 35/15, NS 32
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 59 In Stock
