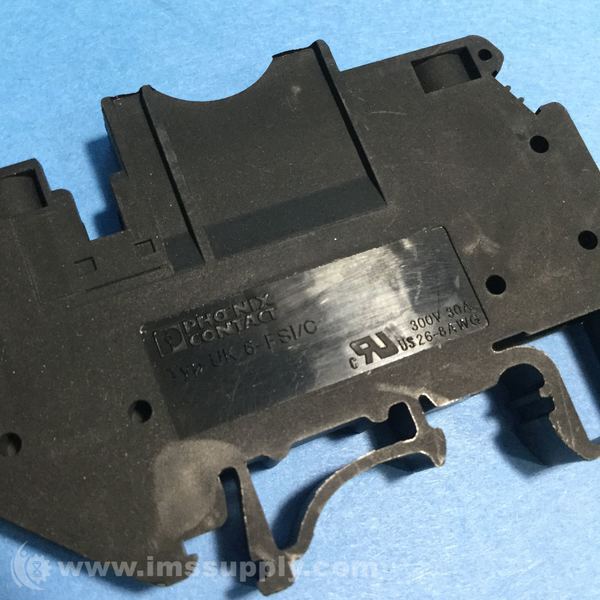

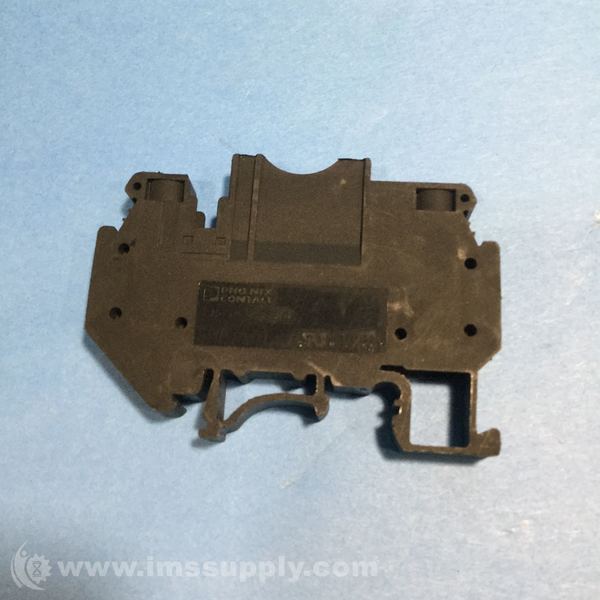

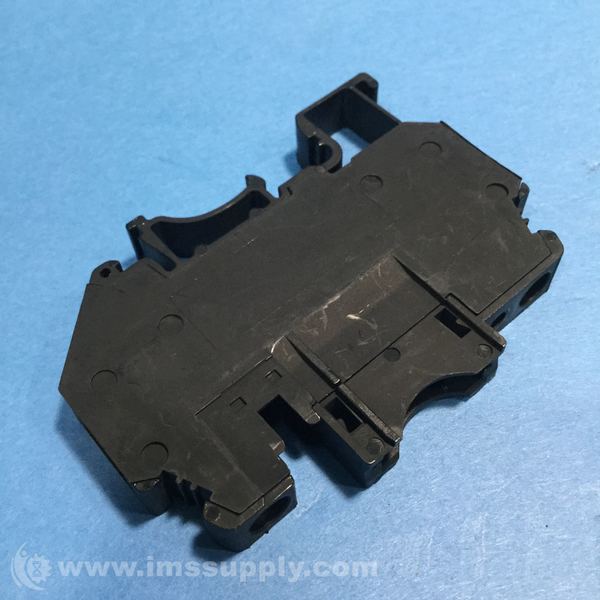

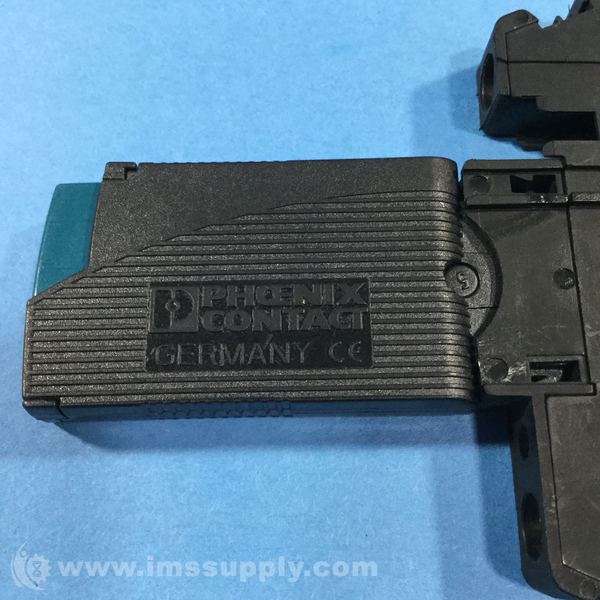

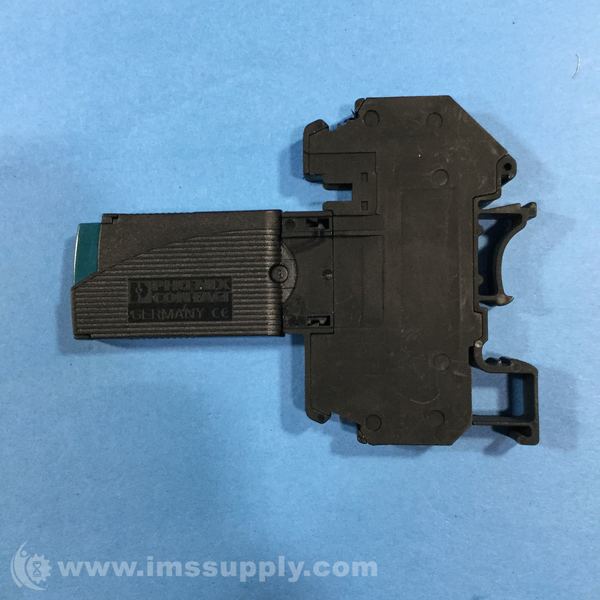

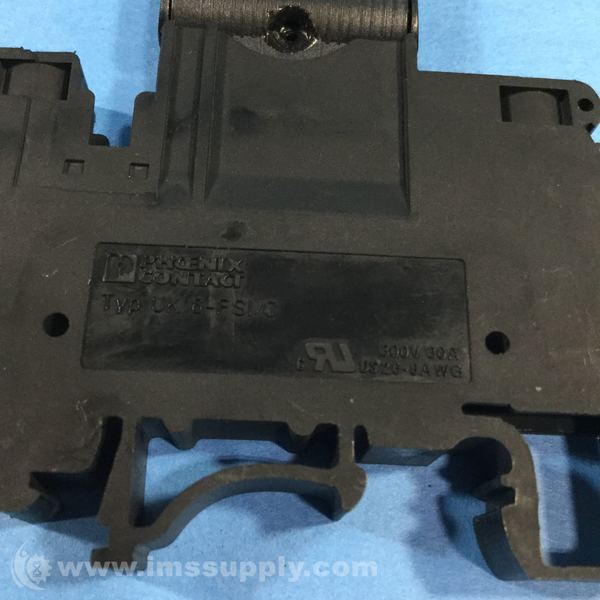

PHOENIX CONTACT UK 6-F SI/C FUSE MODULAR TERMINAL BLOCK
Quick Overview
Manufactured By: PHOENIX CONTACT
Manufacturer Part Number: UK-6-FSI/C
IMS Product Code: 993535
Packaging: Sold Individually
Description:
Phoenix Contact UK 6-F SI/C Fuse Modular Terminal Block
Fuse modular terminal block, fuse type: Blade, nom. voltage: 250 V, nominal current: 30 A, number of positions: 1, connection method: Screw connection, 1 level, Rated cross section: 4 mm2, cross section: 0.2 mm2- 10 mm2, mounting type: NS 35/7,5, NS 35/15, NS 32, color: black
Specifications
- Fuse type: Blade
- Rated surge voltage: 4 kV
- Maximum power dissipation for nominal condition: 1.31 W
- Fuse: C
- Maximum current with single arrangement: 30 A
- Number of connections per level: 2
- Nominal cross section: 6 mm²
- Connection method: Screw connection
- Screw thread: M4
- Tightening torque: 1.5 ... 1.6 Nm
- Stripping length: 10 mm
- Internal cylindrical gage: A5
- Connection in acc. with standard: IEC 60947-7-3
- Conductor cross-section rigid: 0.2 mm² ... 10 mm²
- Cross section AWG: 24 ... 8
- Conductor cross-section flexible: 0.2 mm² ... 6 mm²
- Conductor cross-section, flexible [AWG]: 24 ... 10
- Conductor cross-section flexible (ferrule without plastic sleeve): 0.25 mm² ... 6 mm²
- Flexible conductor cross-section (ferrule with plastic sleeve): 0.25 mm² ... 4 mm²
- 2 conductors with same cross section, rigid: 0.2 mm² ... 2.5 mm²
- 2 conductors with same cross section, flexible: 0.2 mm² ... 2.5 mm²
- 2 conductors with same cross section, flexible, with ferrule without plastic sleeve: 0.25 mm² ... 2.5 mm²
- 2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve: 0.5 mm² ... 4 mm²
- Nominal current: 30 A
- Maximum load current: 30 A
- Nominal voltage: 250 V
- Width: 8.2 mm
- Height: 64 mm
- Depth: 52.6 mm
- Depth on NS 32: 58.8 mm
- Depth on NS 35/7,5: 53.8 mm
- Depth on NS 35/15: 61.3 mm
- Color: black (RAL 9005)
- Flammability rating according to UL 94: V0
- Insulating material group: I
- Insulating material: PA
- Static insulating material application in cold: -60 °C
- Relative insulation material temperature index (Elec., UL 746 B): 130 °C
- Fire protection for rail vehicles (DIN EN 45545-2) R22: HL 1 - HL 3
- Fire protection for rail vehicles (DIN EN 45545-2) R23: HL 1 - HL 3
- Fire protection for rail vehicles (DIN EN 45545-2) R24: HL 1 - HL 3
- Fire protection for rail vehicles (DIN EN 45545-2) R26: HL 1 - HL 3
- Surface flammability NFPA 130 (ASTM E 162): passed
- Specific optical density of smoke NFPA 130 (ASTM E 662): passed
- Smoke gas toxicity NFPA 130 (SMP 800C): passed
- Ambient temperature (operation): -60 °C ... 110 °C
- Ambient temperature (storage/transport): -25 °C ... 60 °C
- Ambient temperature (assembly): -5 °C ... 70 °C
- Ambient temperature (actuation): -5 °C ... 70 °C
- Permissible humidity (operation): 20 % ... 90 %
- Permissible humidity (storage/transport): 30 % ... 70 %
- Mounting type: NS 35/7,5, NS 35/15, NS 32
- Number of positions: 1
- Number of connections: 2
- Number of rows: 1
- Potentials: 1
- Overvoltage category: III
- Degree of pollution: 3
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
