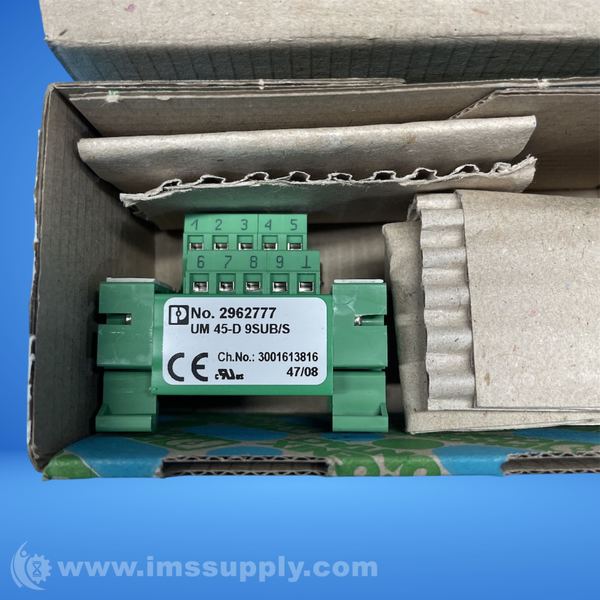

PHOENIX CONTACT UM-45-D-9SUB/S INTERFACE MODULE
Quick Overview
Manufactured By: PHOENIX CONTACT
Manufacturer Part Number: UM-45-D-9SUB/S
IMS Product Code: 2134565
Packaging: Sold Individually
Description:
Phoenix Contact UM-45-D-9SUB/S Interface Module
VARIOFACE module with screw connection and D-subminiature pin strip for assembly on NS 35/7.5, 9 positions
Specifications
- Product type: Interface module
- Number of positions: 9
- Insulation: Functional insulation
- Operating voltage (AC): 30 V AC
- Operating voltage (DC): 60 V DC
- Current (per branch): 2.5 A
- Current (Total current): 22.5 A
- Rated insulation voltage: 125 V
- Rated surge voltage: 1.2 kV (1.2/50 µs)
- Connection method (Control level): D-SUB pin strip
- Connection method (Field level): Screw connection
- Conductor cross-section rigid: 0.14 mm² ... 1.5 mm²
- Conductor cross-section flexible: 0.14 mm² ... 1.5 mm²
- Conductor cross-section AWG: 26 ... 16
- Tightening torque: 0.5 Nm ... 0.6 Nm
- Pitch (Control level): 2.74 mm
- Pitch (Field level): 5.08 mm
- Width: 53 mm
- Height: 45 mm
- Depth: 43.12 mm
- Color: green (RAL 6021)
- Housing insulation material: PVC
- Degree of protection (Module): IP20
- Degree of protection (Installation location): IP54
- Ambient temperature (operation): -20 °C ... 50 °C
- Ambient temperature (storage/transport): -20 °C ... 70 °C
- Altitude: 2000 m
- Mounting type: DIN rail mounting

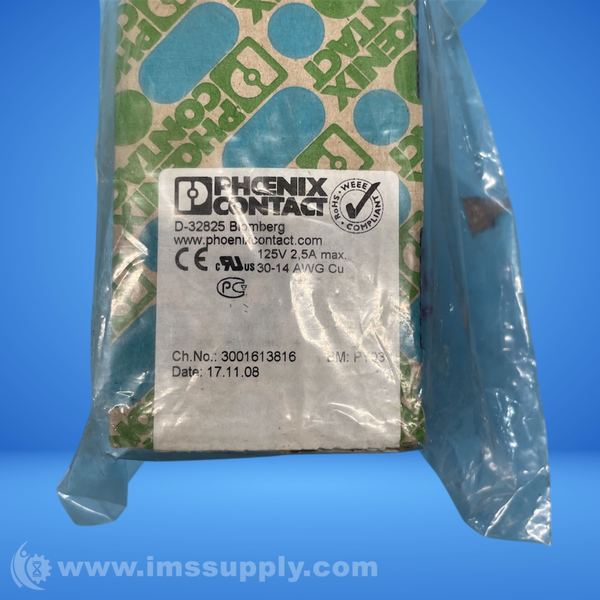

New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
