PHOENIX CONTACT USLKG 35 PROTECTIVE CONDUCTOR TERMINAL BLOCK
Quick Overview
Manufactured By: PHOENIX CONTACT
Manufacturer Part Number: USLKG 35
IMS Product Code: 2144868
Packaging: Sold Individually
Description:

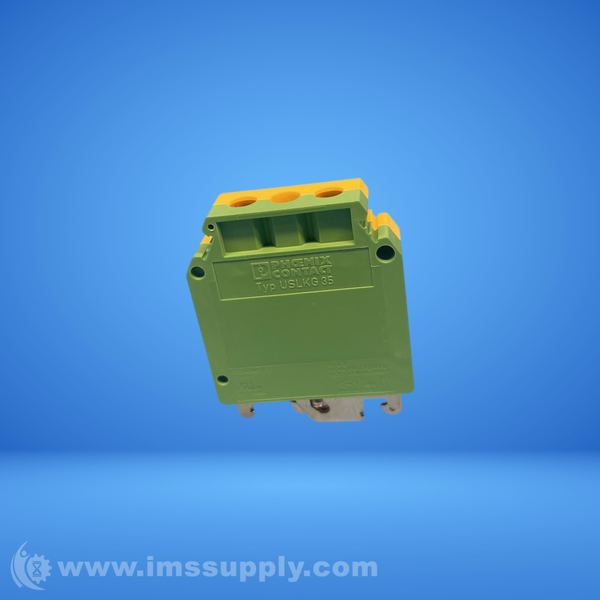

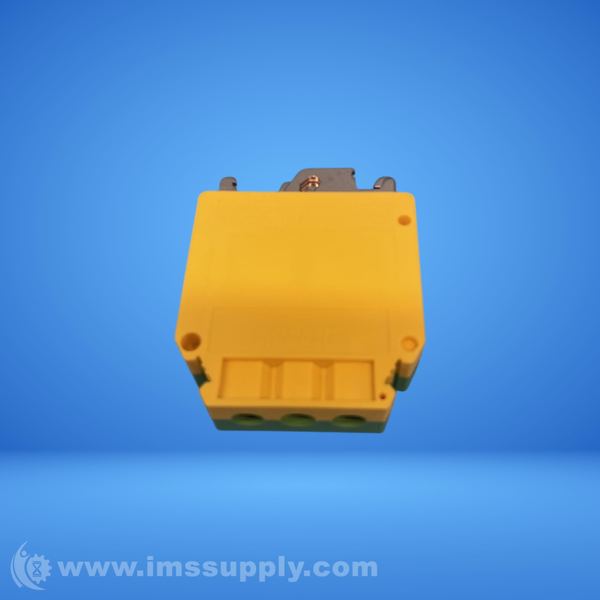

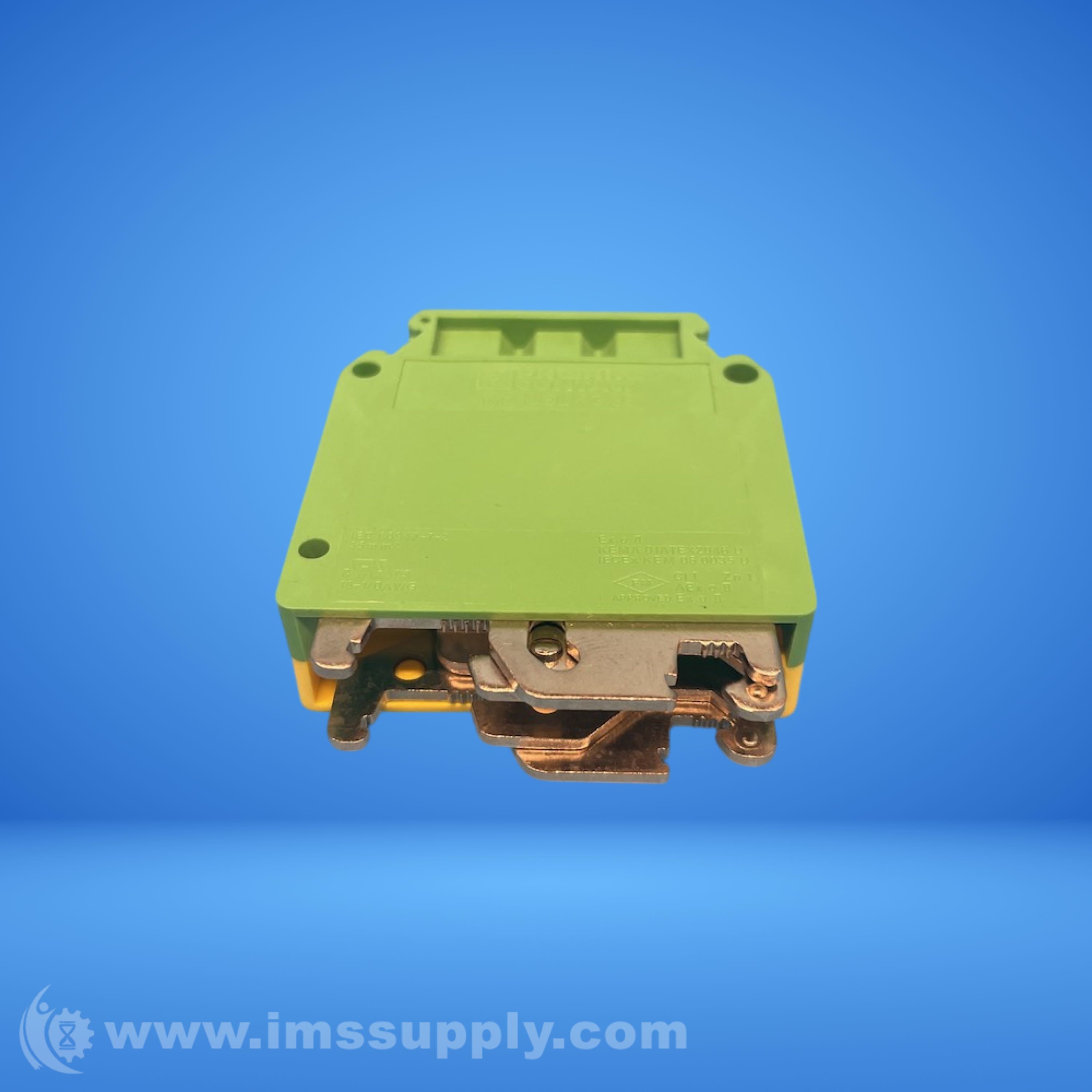

Phoenix Contact USLKG 35 Protective Conductor Terminal Block
Protective conductor terminal block with screw connection, rated cross section 35 mm², connection capacity 0.75 mm² - 50 mm², green-yellow, mounts on NS 35/7.5, NS 35/15, or NS 32 DIN rails.
Specifications
- Number of connections: 2
- Connection method: Screw connection
- Rated cross section: 35 mm²
- Cross section: 0.75 mm² - 50 mm²
- Mounting method: PE foot with M5 mounting screw
- Mounting type: NS 35/7.5, NS 35/15, NS 32
- Color: green-yellow
- Width: 15.2 mm
- Height: 50 mm
- Depth on NS 32: 67 mm
- Depth on NS 35/7.5: 62 mm
- Depth on NS 35/15: 69.5 mm
- Rated surge voltage: 8 kV
- Screw thread: M6
- Tightening torque: 3.2 ... 3.7 Nm
- Stripping length: 15 mm
- Conductor cross section rigid: 0.75 mm² ... 50 mm²
- Conductor cross section flexible: 0.75 mm² ... 35 mm²
- Flammability rating: V0
- Insulating material: PA
- Ambient temperature operation: -60 °C ... 110 °C
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
