PILZ 541059 RFID SAFETY SWITCH
Quick Overview
Manufactured By: PILZ
Manufacturer Part Number: 541059
IMS Product Code: 2133451
Packaging: Sold Individually
Description:

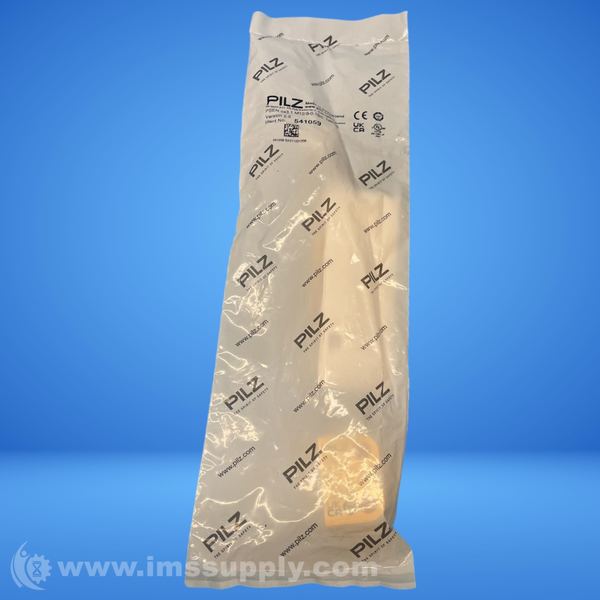

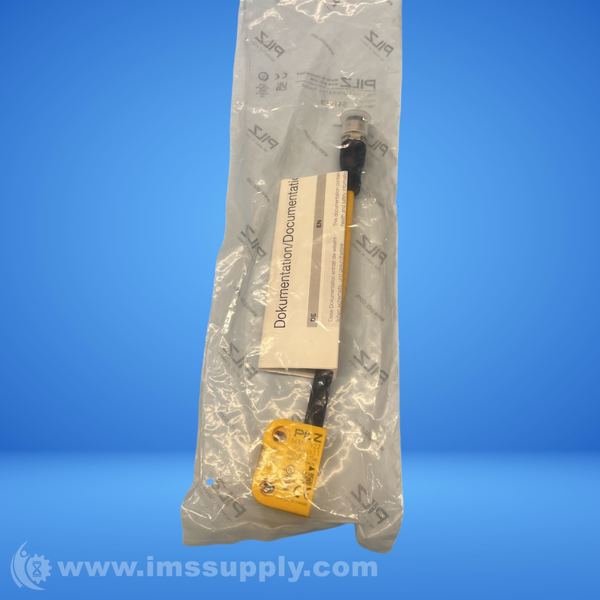

Pilz 541059 Rfid Safety Switch
RFiD safety switch with 2 safe SC outputs, 8-pin M12 male connector, and 0.15 m cable. Supports SDD, IP67, and series connection.
Specifications
- Supply Voltage: 24 V
- Type of Supply Voltage: DC
- Power Consumption DC: 1 W
- Number of Inputs: 2
- DC Voltage at Input: 24 V DC
- Number of OSSD Outputs: 2
- Number of Sig. Outputs: 1
- Potential Isolation S/C O: No
- S/C Output Short Circuit Proof: Yes
- Utilisation Cat. to EN 60947-1: DC-12
- Ambient Temperature: -25 - 70 degrees C
- Protection Type, Housing: IP6K9K
- Connection Type: M12, 8-pin male
- Cable Lines: Li9Y11Y 8 x 0.14 mm2
- Housing Material Upper Part: PBT
- Height Dimension: 37 mm
- Width Dimension: 26 mm
- Depth Dimension: 18 mm
- Gross Weight: 57 g
- Operating Frequency: 122 kHz - 128 kHz
- Switch On Distance: 8 mm
- Switch Off Distance: 20 mm
- Protection Rating: IP67, IP69K
- Approvals: CE, cULus, EAC, TUV
