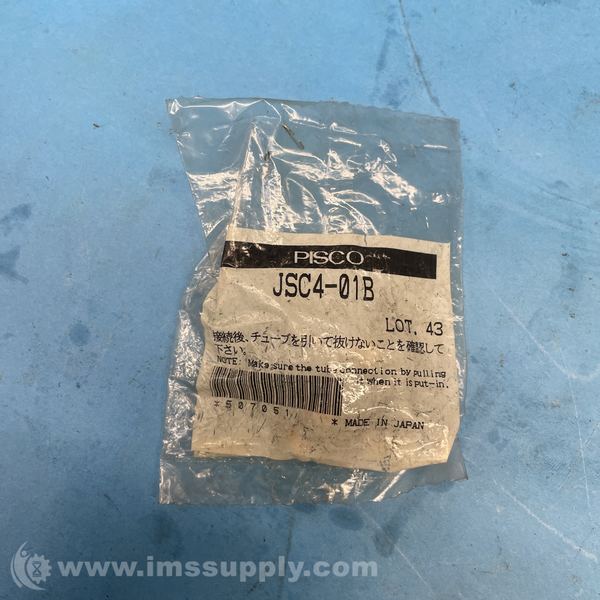

PISCO JSC4-01B METER-IN SPEED CONTROLLER
Quick Overview
Manufactured By: PISCO
Manufacturer Part Number: JSC4-01B
IMS Product Code: 2135426
Packaging: Sold Individually
Description:
Pisco JSC4-01B Meter-in Speed Controller
Pisco JSC4-01B is a meter-in speed controller used for controlling air flow in pneumatic systems. It features a quick connector for 4mm tube and R1/8 threaded port.
Specifications
- Series: JSC4
- Type: One-Touch Fitting, Meter-in
- Application: Vacuum, Pneumatic Systems
- Fluid Medium: Air
- Operating Pressure Range: 0.1 - 0.9 MPa
- Check Valve Opening Pressure: 0.05 MPa
- Operating Temperature Range: 0 - 60 deg. C (No freezing)
- Thread Size: R1/8
- Tube Size: 4mm
- Dimension: 29 x 15 x 41 mm
- Weight: 18 g
- Flow Rate: 235l/min (ANR) / 0.6MPa
- Max Operating Pressure: 0.9MPa
- Min Operating Pressure: 0.05MPa
- Number of Needle Valve Rotations: 12
