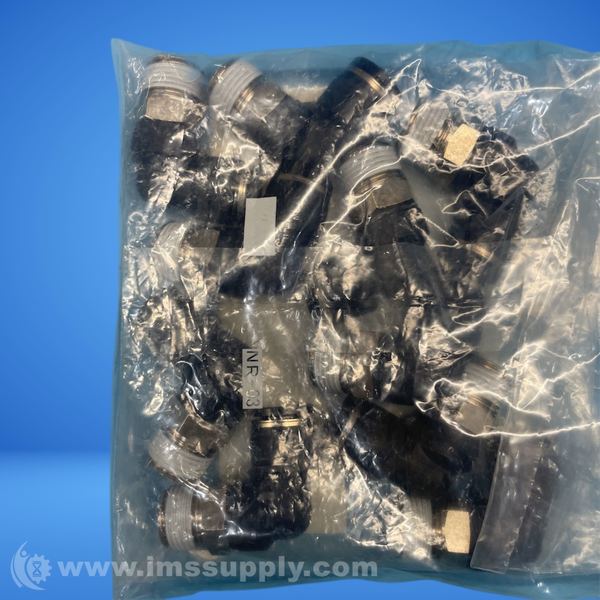

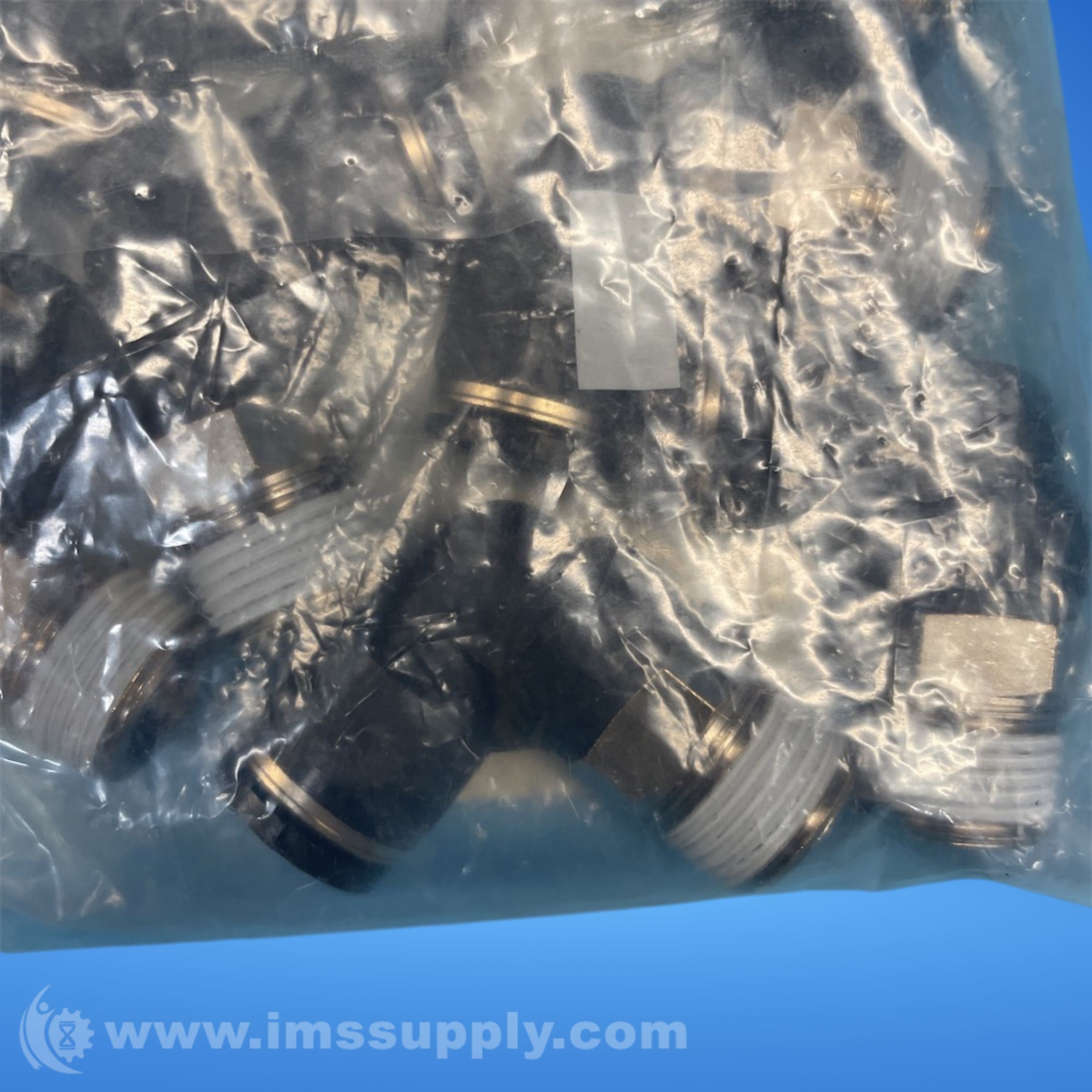

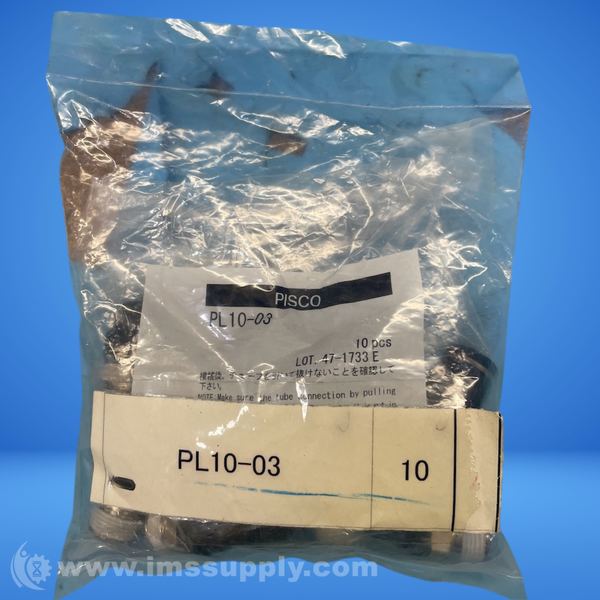

PISCO PL10-03 10MM TUBE X 3/8" BSPT MALE ELBOW
Quick Overview
Manufactured By: PISCO
Manufacturer Part Number: PL10-03
IMS Product Code: 2139318
Packaging: Pack of 10
Description:
Pisco PL10-03 10mm Tube x 3/8" BSPT Male Elbow
Pisco PL10-03 push-in fitting, 10mm tube x 3/8" BSPT male elbow, made of PBT with NBR O-ring.
Specifications
- TUBE SIZE: 10MM
- THREAD SIZE: 3/8"
- THREAD TYPE: BSPT (R)
- STYLE: STANDARD
- Series: PL
- Material: Main / PBT (polybutylene terephthalate), metal / brass (electroless nickel plating), O-ring / NBR (nitrile rubber), open ring / POM (polyacetal)
- Type: Elbow
- Adaptive tube outer diameter: f10 mm
- Fit screw size: R 3/8
- Used fluid: Air and water
- Vacuum pressure: 100 kPa
- Maximum working pressure: 1.0 MPa
- Temperature range: 0 to 60 degrees C
- Mounting Type: Threaded
- D1: 10mm
- R1: R3/8
- Bag Quantity: 10
- Weight pc(lbs): 0.093
New:
A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable).
Availability: 1 In Stock
Ships today if ordered in the next 8 hours and 0 minutes.
