PISCO PL12-03 12MM TUBE X 3/8 BSPT MALE ELBOW
Quick Overview
Manufactured By: PISCO
Manufacturer Part Number: PL12-03
IMS Product Code: 2156929
Packaging: Sold Individually
Description:

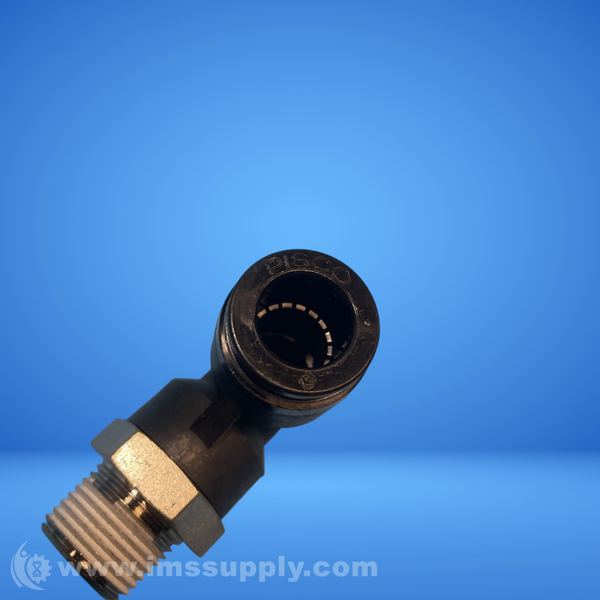

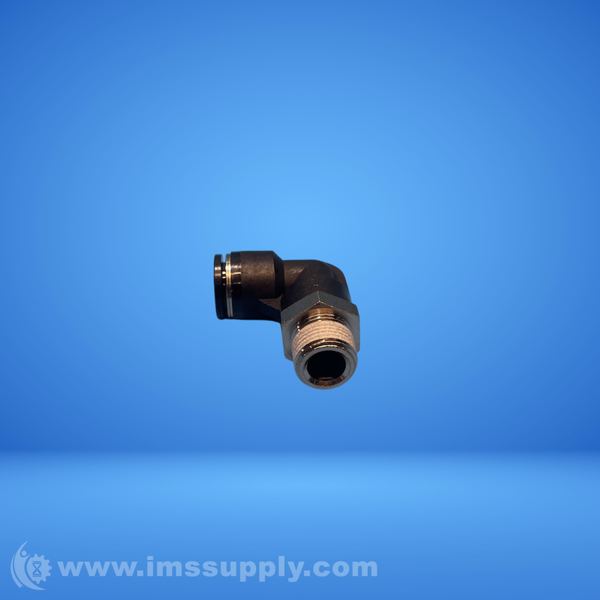

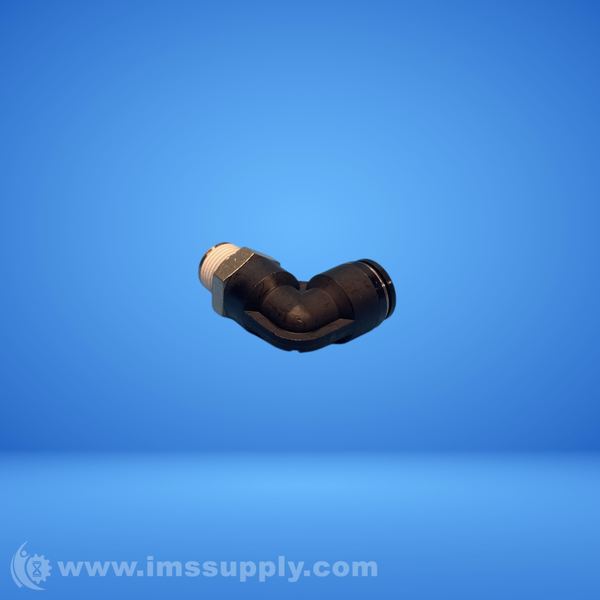

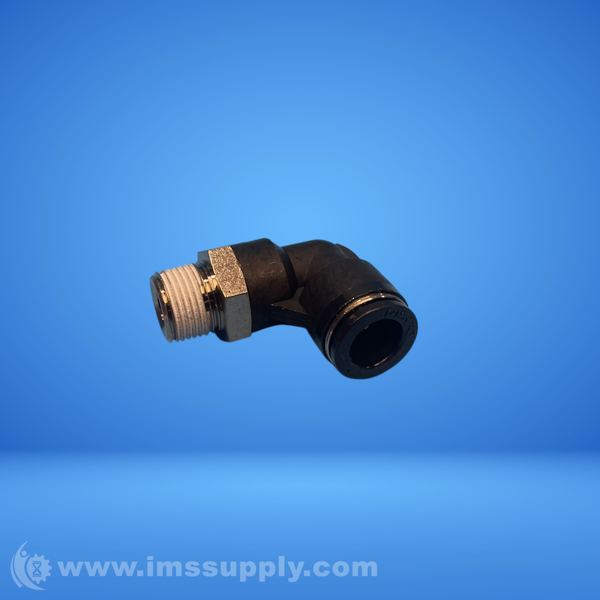

Pisco PL12-03 12mm Tube x 3/8 BSPT Male Elbow
Swivel Male Elbows are configured in a 90° shape with an external hex for installation. The swivel body enables flexibility during both installation and operation.
Specifications
- Tube Size: 12mm
- Thread Size: 3/8
- Thread Type: BSPT (R)
- Max Working Pressure: 150 psi
- Temperature Range: 32°F to 140°F
- Vacuum Rating: 29.5" HG
- Metal Body Material: Nickel-Plated Brass
- Resin Body Material: PBT Resin
- O-Ring: NBR (Buna-N)
- Grip Ring: Stainless Steel
- Release Ring: Acetal Plastic
- Media: Compressed Air; Inert Gases
- Series: PL
- Model: PL12-03
- Type: Standard Fittings
- Fluid Medium: Air, Water (Conditional*)
- Max. operating pressure: 1.0MPa
- Max. vacuum: -100kPa
- Operating temp. range: 0 - 60 deg. C (No Freezing)
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
