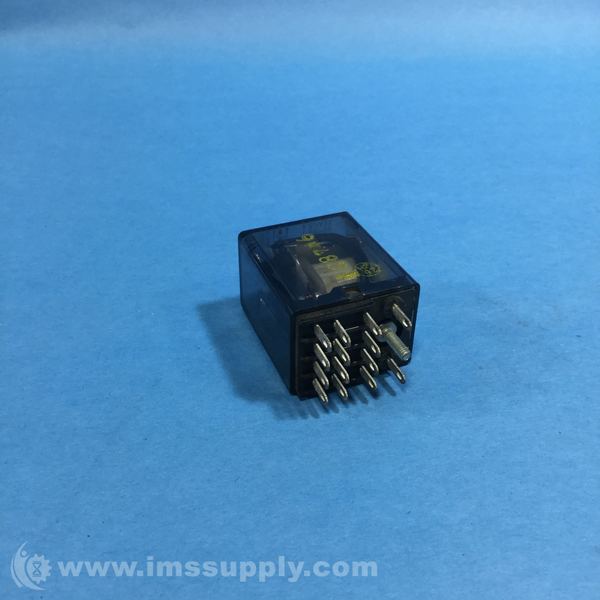

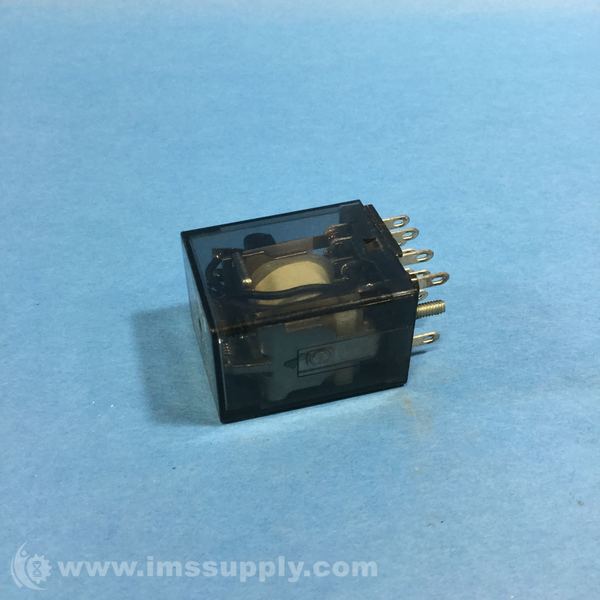

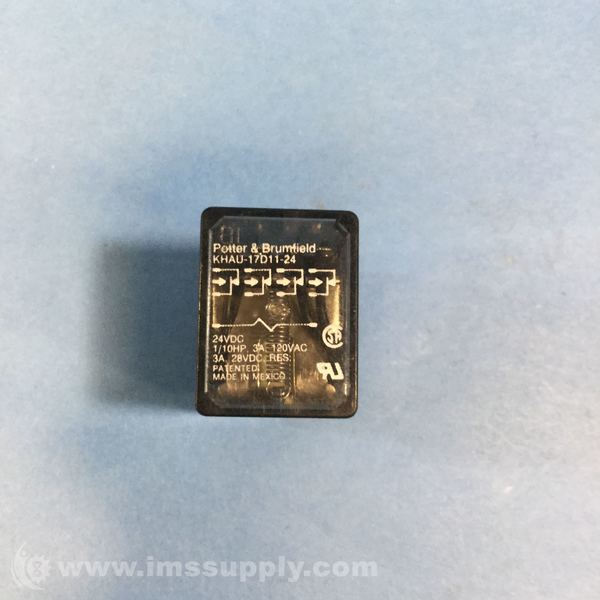

POTTER & BRUMFIELD KHAU-17D11-24 4PDT RELAY
Quick Overview
Manufactured By: POTTER & BRUMFIELD
Manufacturer Part Number: KHAU-17D11-24
IMS Product Code: 1801078
Packaging: Sold Individually
Description:
Potter & Brumfield KHAU-17D11-24 4PDT Relay
General Purpose Power Relay, 24VDC coil, 4PDT contact arrangement, 2.5A contact rating, monostable DC operation.
Specifications
- Coil Magnetic System: Monostable
- Contact Arrangement: 4 Form C 4PDT-CO
- Current Type: DC
- Contact Current Rating: 2.5 A
- Coil Voltage Rating: 24 VDC
- Coil Resistance: 650 O
- Contact Switching Load (Min): 100mA @ 12V
- Insulation Initial Dielectric Between Adjacent Contacts: 1500 Vrms
- Insulation Initial Dielectric Between Open Contacts: 1000 Vrms
- Contact Limiting Breaking/Continuous/Making/Short-Time Current: 2.5 A
- Coil Power Rating DC: 0.85 W
- Product Weight: 45 g
- Enclosure Type: Dust Protected
- Contact Material: Ag
- Termination Type: Solder Terminals
- Mounting Type: Panel & Socket Mount
- Dimensions: 32.54mm H x 28.17mm L x 21.82mm W
- Operating Temperature Range: -45 to 70 degrees C
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
