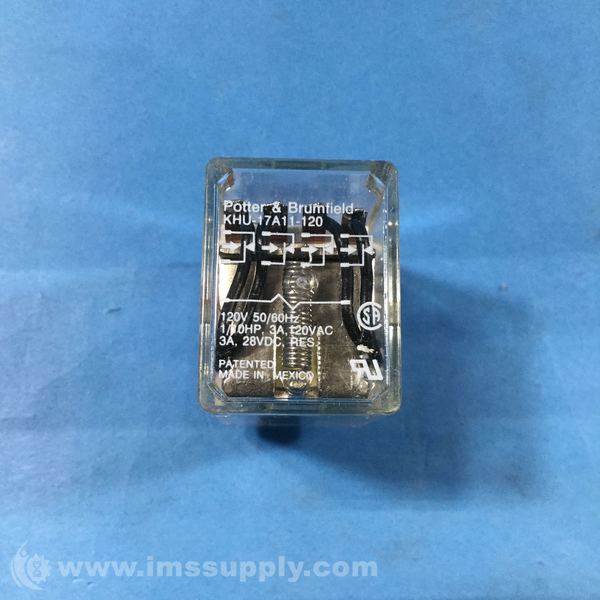

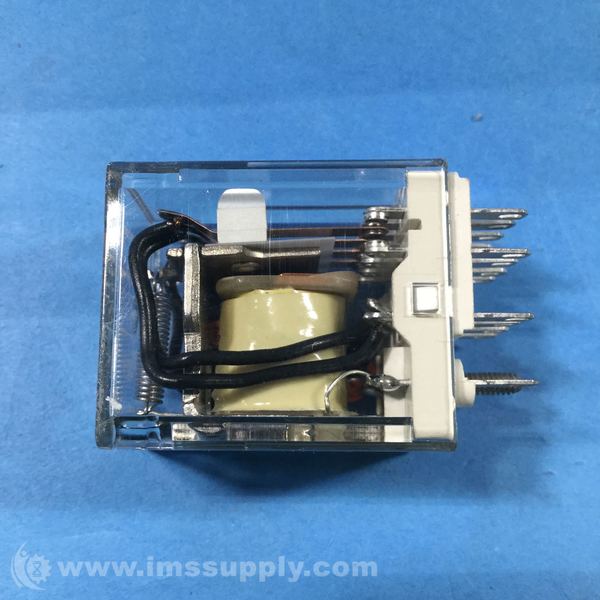

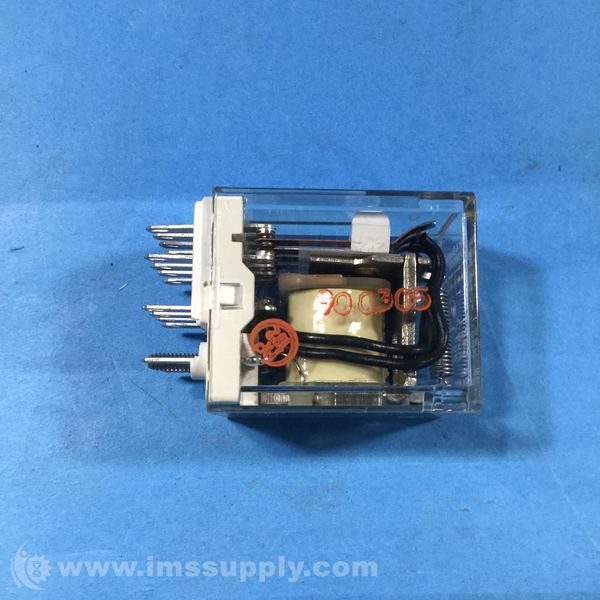

POTTER & BRUMFIELD KHU-17A11-120 GENERAL PURPOSE POWER RELAY
Quick Overview
Manufactured By: POTTER & BRUMFIELD
Manufacturer Part Number: KHU-17A11-120
IMS Product Code: 1845148
Packaging: Sold Individually
Description:
Potter & Brumfield KHU-17A11-120 General Purpose Power Relay
General Purpose Power Relay
Specifications
- Relay & Contactor Type: General Purpose Power Relay
- Coil Magnetic System: Monostable
- Contact Arrangement: 4 Form C 4PDT-CO
- Current Type: AC
- Contact Current Rating (A): 2.5
- Coil Voltage Rating (VAC): 120
- Contact Voltage Rating (VAC): 240
- Insulation Initial Dielectric Between Contacts & Coil (Vrms): 1500
- Insulation Initial Dielectric Between Open Contacts (Vrms): 1000
- Insulation Initial Dielectric Between Adjacent Contacts (Vrms): 1500
- Coil Power Rating AC (VA): 1.35
- Coil Resistance (O): 3900
- Contact Switching Load (Min): 100mA @ 12V
- Product Weight: 45 g [ 1.587 oz ]
- Enclosure Type: Dust Protected
- Contact Material: Ag

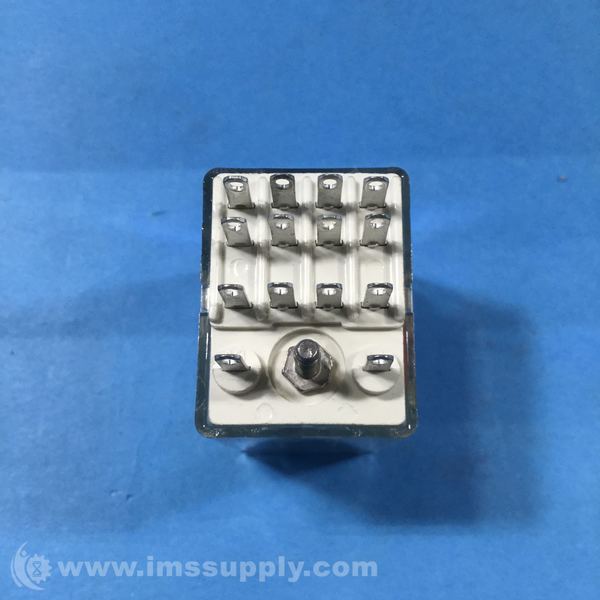

- Main Termination & Connection Type: Solder Terminals
- Coil Termination & Connection Type: Solder Terminals
- Product Mounting Feature Type: Mounting Studs
- Product Mount Type: Panel & Socket Mount
- Product Height: 32.54 mm [ 1.28 in ]
- Product Length: 28.17 mm [ 1.109 in ]
- Product Width: 21.82 mm [ .859 in ]
- Environmental Category of Protection: RTI
- Operating Temperature Range: -45 – 70 °C [ -49 – 158 °F ]
- Environmental Ambient Temperature (Max): 70 °C [ 158 °F ]
- Coil Special Features: UL Coil Insulation Class B
- Contact Number of Poles: 4
- Insulation Initial Resistance (MO): 100
- Coil Power Rating Class (VA): >1.1 – =1.8
- Contact Current Class (A): >2 – =5
- Height Class (Mechanical): >27 – =33 mm [ >1.063 – =1.299 in ]
- Length Class (Mechanical): >22 – =33 mm [ >.866 – =1.299 in ]
- Width Class (Mechanical): >16 – =22 mm [ >.63 – =.866 in ]
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 1 In Stock
