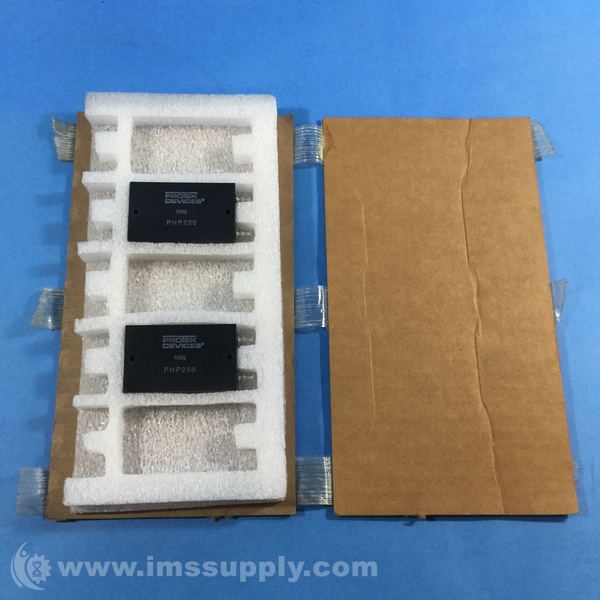

PROTEK PHP250 TVS DIODE
Quick Overview
Manufactured By: PROTEK
Manufacturer Part Number: PHP250
IMS Product Code: 2154030
Packaging: Box of 2
Sold Individually
Box of 2
Description:
Protek PHP250 TVS Diode
Transient voltage suppressor diode, bi-directional, 354V, 15kW
Specifications
- Configuration: Single
- Direction Type: Bi-Directional
- Number of Elements per Chip: 1
- Minimum Breakdown Voltage (V): 418
- Maximum Clamping Voltage (V): 652
- Maximum Reverse Stand-Off Voltage (V): 354
- Maximum Peak Pulse Current (A): 23
- Maximum Reverse Leakage Current (uA): 250
- Test Current (mA): 1
- Peak Pulse Power Dissipation (W): 15000
- Minimum Operating Temperature (C): -55
- Maximum Operating Temperature (C): 150
- Mounting: Screw
- Package Height: 57.91(Max) mm
- Package Width: 13.46(Max) mm
- Package Length: 35.69(Max) mm
- Pin Count: 2
- RoHS Status: RoHS Compliant
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
