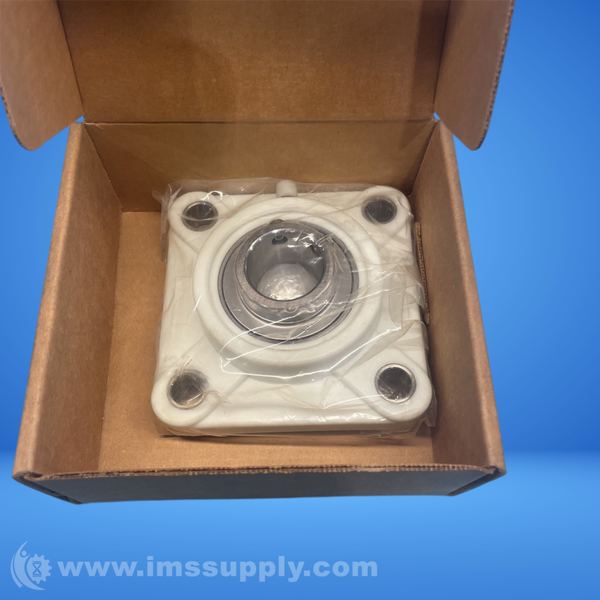

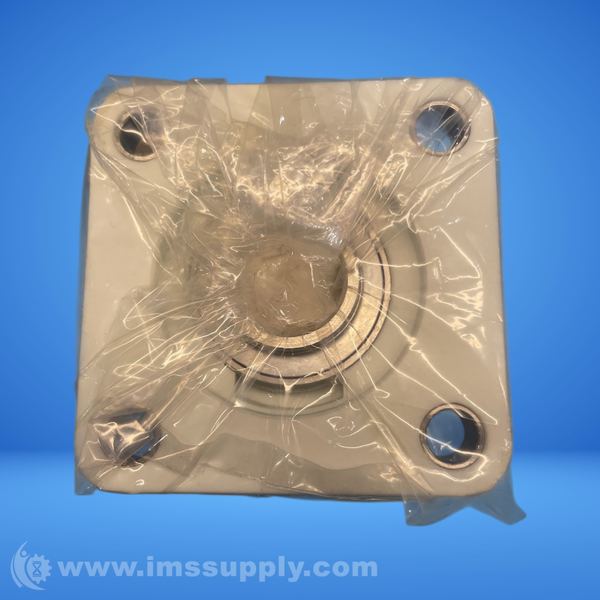

PTI SUCTF205-16 THERMOPLASTIC FLANGE UNIT
Quick Overview
Manufactured By: PTI
Manufacturer Part Number: SUCTF205-16
IMS Product Code: 2129104
Packaging: Sold Individually
Description:
PTI SUCTF205-16 Thermoplastic Flange Unit
Thermoplastic 4-Bolt Flange Unit with Stainless Steel Bearing
Specifications
- Bearing Number: SUC205-16
- Housing Number: TF205
- Type: Mounted Ball Bearing Thermoplastic Housing
- Housing Construction: Reinforced PBT
- Shaft Size d: 1 in
- Grease Type: USDA H1
- Locking Mechanism: Set Screw
- Static Load Rating: 1430 lb
- Dynamic Load Rating: 2600 lb
- Speed [Max]: 6250 rpm
- Weight: 0.4 lb
- Bolt Hole Center to Center: 2.75 in
- Center of Outer Race to Back of Housing: 0.67 in
- Overall Length: 3.75 in
- Housing Width: 1.1 in
- Foot Height: 0.57 in
- Overall Width: 1.45 in
- Grease Fitting: M6
- Bolt Size: 3/8"
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 2 In Stock
Ships on Monday, September 22, 2025
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
